2337994-3

AMP2337994-3
Heilind Number:AMP2337994-3
Manufacturer:TE Connectivity
Manufacturer Number:2337994-3
Datasheet:Drawing
ECAD Model:
3D Model

Description:

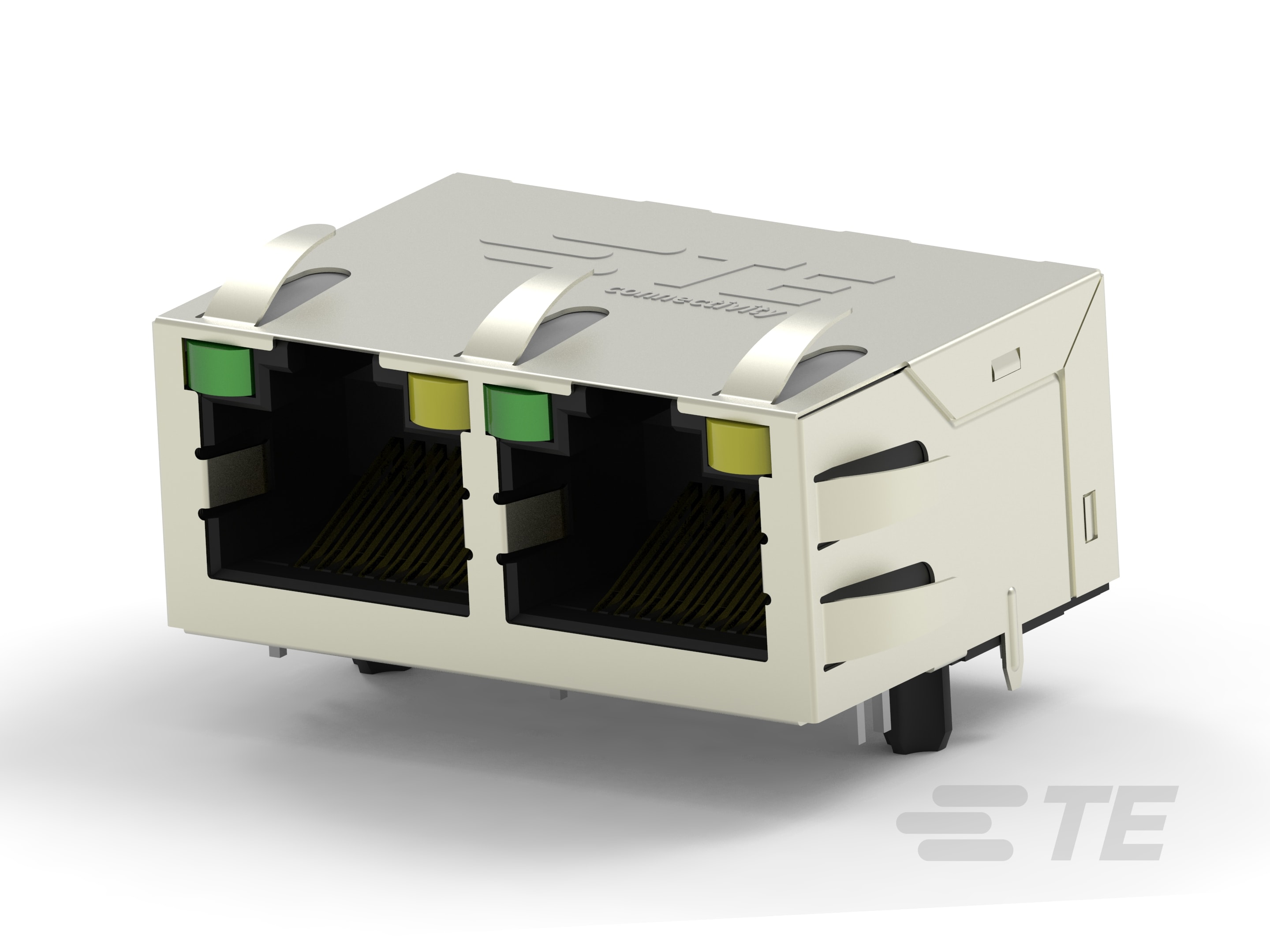

RJ45 JACK MAG. POE 10/100 LED 1X2 INV.

More >>

Specifications

AttributeValue
Product Category:
RJ Connectors & Components RJ Jacks & Plugs
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2337994-3
Series:Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:LCP (Liquid Crystal Polymer)
Termination Method:Through Hole - Solder
Contact Material:Copper Alloy
USOC Codes:RJ45 with Integrated Magnetics
Insulation Material:LCP
LAN Category:Cat 5
Keying:No
Package Quantity:80
Number of Positions:8
Data Rate:100 Mb/s, 10 Mb/s
Housing Color:Black
Mount Orientation:Right Angle
Latch Orientation:Inverted - Latch Up
GPL:Z16
LED Color (Bottom Right):None
LED Color (Bottom Left):None
LED Color (Top Left):Green
LED Color (Top Right):Yellow
PCB Ground Tab Location:.12 in, 3.05 mm
Profile:Standard
Shield Material:Brass
Shield Plating Material:Nickel
Shield Plating Finish:Matte
Connector Contact Density:Standard
Multiple Port Configuration:Ganged
Number of Loaded Positions:8
Mating Entry Location:Side
Number of Panel Ground Tabs:7
Number of PCB Ground Tabs:2
Panel Ground Location:Top and Side
Port Configuration:Multiple Ports
Port Matrix Configuration:1 x 2
Status Indicator:LED
Packaging:Reel
Operating Temperature Range:-40 - 185 °F, -40 - 85 °C
Contact Mating Area Plating:Gold over Nickel
Contact Mating Area Plating Thickness:30 µin, .76 µm
Shielded:Yes
Contact Underplating Material:Nickel
PCB Contact Termination Area Plating:Tin
PCB Termination Area Plating Finish:Matte
Connector Height:13.5 mm, .531 in
PCB Retention Type:Boardlock
Boardlock Material:LCP
Shield Panel Ground Type:Shield has bottom panel grounds.
Sealable:No
Grounding Options:PCB and Panel Ground
Housing Material Temperature:260
Reel Diameter:33 cm
Connector Type:Jack
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Connectors and Connector Components Type:Connector
Product Code:K842
Modular Product Type:RJ Type Jacks & Plugs
Material Flammability Standard:UL 94V-0
SKU:AMP2337994-3

Detailed Description

Enhance your network connectivity with our Industrial RJ45 Jack with Integrated Magnetics, designed for efficient Power over Ethernet (PoE) transmission at 10/100 Mbps speeds. Featuring a compact 1x2 port configuration with inverted LED indicators, this LCP housing-embedded connector ensures reliable performance in rugged environments. Its copper alloy contacts, UL 94V-0 rated for flammability, offer secure Through Hole - Solder termination, while the durable Brass shield with Nickel plating provides EMI/RFI protection. With standard Cat 5 compatibility, this black-colored RJ45 connector supports data rates of up to 100 Mbps, making it ideal for industrial applications. Its right-angle mount orientation and inverted latch up design facilitate easy PCB assembly, while the integrated LED status indicators enhance operational visibility. Trust in its RoHS compliance and lead-free solder capabilities for eco-friendly and reliable performance. Upgrade your network infrastructure seamlessly with this high-quality Industrial RJ45 connector.
