2344655-2

AMP2344655_2
Heilind Number:AMP2344655-2
Manufacturer:TE Connectivity
Manufacturer Number:2344655-2
Datasheet:Material Declaration (XLSX)
ECAD Model:
3D Model

Description:

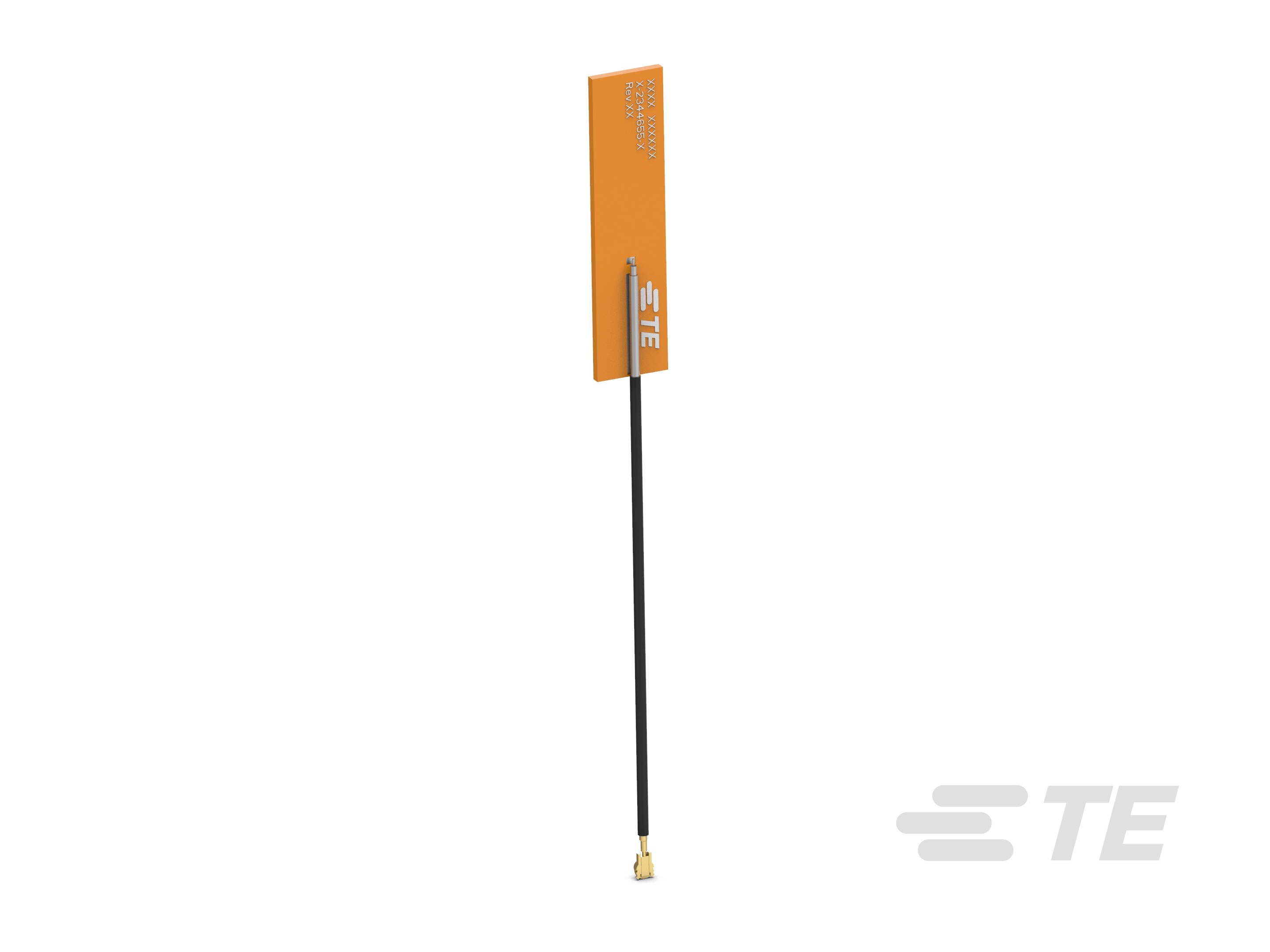

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2344655-2
Gain:5.9 dB
VSWR:2.7:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Band Type:Triple Band
Impedance:50 Ω
Antenna Type:PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2450 - 2650 MHz, 5300 - 7000 MHz
Center Frequency:2550 MHz, 6150 MHz
Application:Bluetooth, Wi-Fi
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
SKU:AMP2344655-2

Detailed Description

This RoHS-compliant triple band PCB antenna is designed for seamless integration in various wireless devices. With a gain of 5.9 dB and a VSWR of 2.7:1, it ensures reliable signal reception in the 2.4GHz and 5GHz frequency ranges, making it ideal for ZigBee, Bluetooth, and various Wi-Fi standards, including 802.11a/ac/ad/ax/b/g/n. The omnidirectional polarization and adhesive mounting style offer flexibility for internal/embedded placement. Termination options include MHF, MHF1, U.FL, and UMCC connectors, catering to different device configurations. With its compact design and impedance of 50 Ω, this antenna is suitable for a wide range of applications in consumer electronics, IoT devices, and more.
