2344655-3

AMP2344655_3
Heilind Number:AMP2344655-3
Manufacturer:TE Connectivity
Manufacturer Number:2344655-3
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

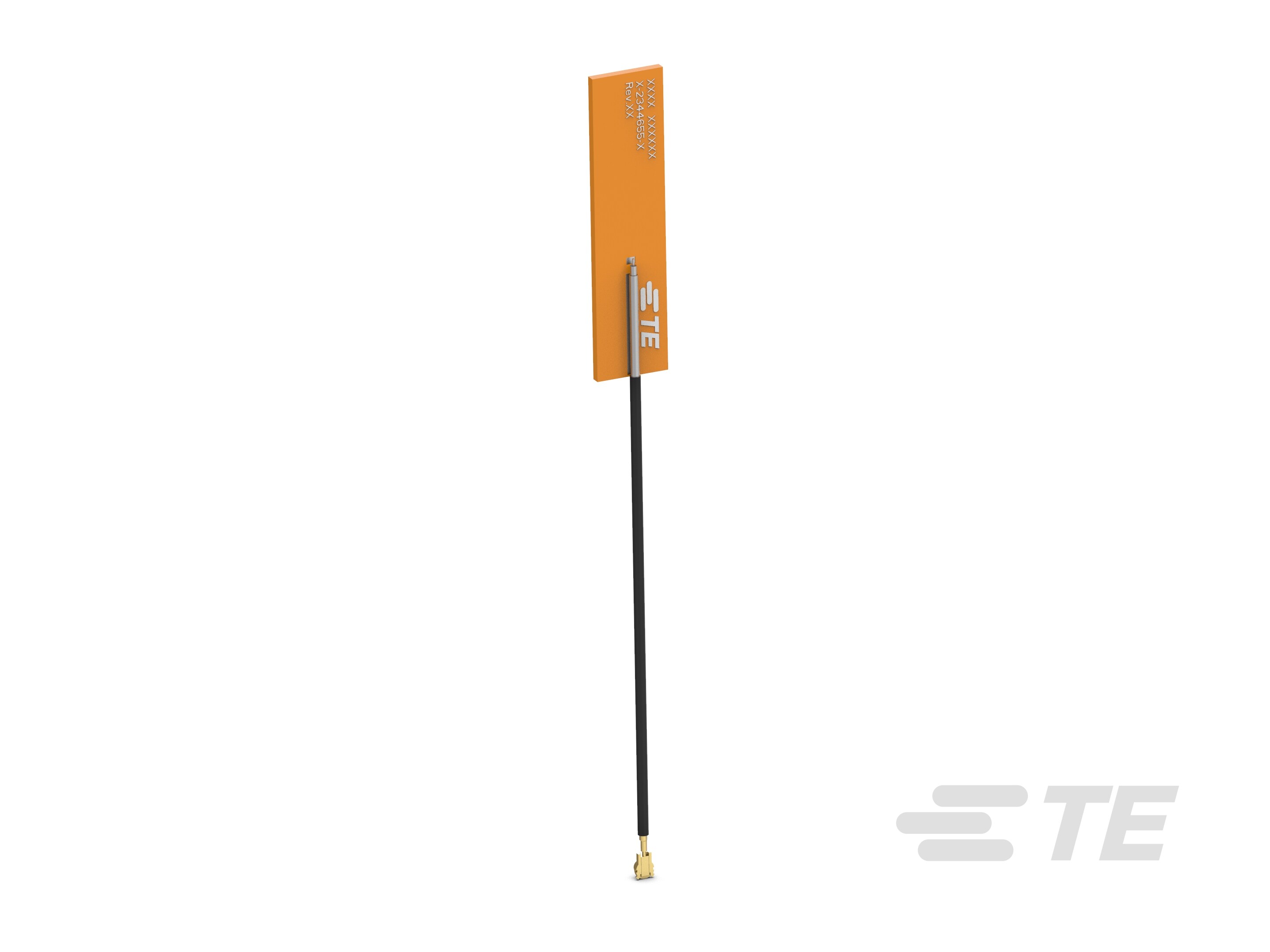

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2344655-3
Gain:5.9 dB
VSWR:2.7:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Band Type:Triple Band
Impedance:50 Ω
Antenna Type:PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2450 - 2750 MHz, 5350 - 7000 MHz
Center Frequency:2600 MHz, 6175 MHz
Application:Bluetooth, Wi-Fi
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
SKU:AMP2344655-3

Detailed Description

Enhance your connectivity with this RoHS-compliant Triple Band PCB Antenna, designed for seamless integration into Wi-Fi and Bluetooth devices. With a gain of 5.9 dB and VSWR of 2.7:1, it ensures optimal performance across a wide frequency range, from 2450 to 2750 MHz and 5350 to 7000 MHz. The omnidirectional, linear polarization and adhesive mounting style make it suitable for internal/embedded use, while the 50 Ω impedance and various termination options (MHF, MHF1, U.FL, UMCC) provide flexibility in installation. Whether for ZigBee, 802.11 standards, or other wireless protocols, this antenna guarantees reliable connectivity in diverse applications.
