2344657-2

AMP2344657_2
Heilind Number:AMP2344657-2
Manufacturer:TE Connectivity
Manufacturer Number:2344657-2
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

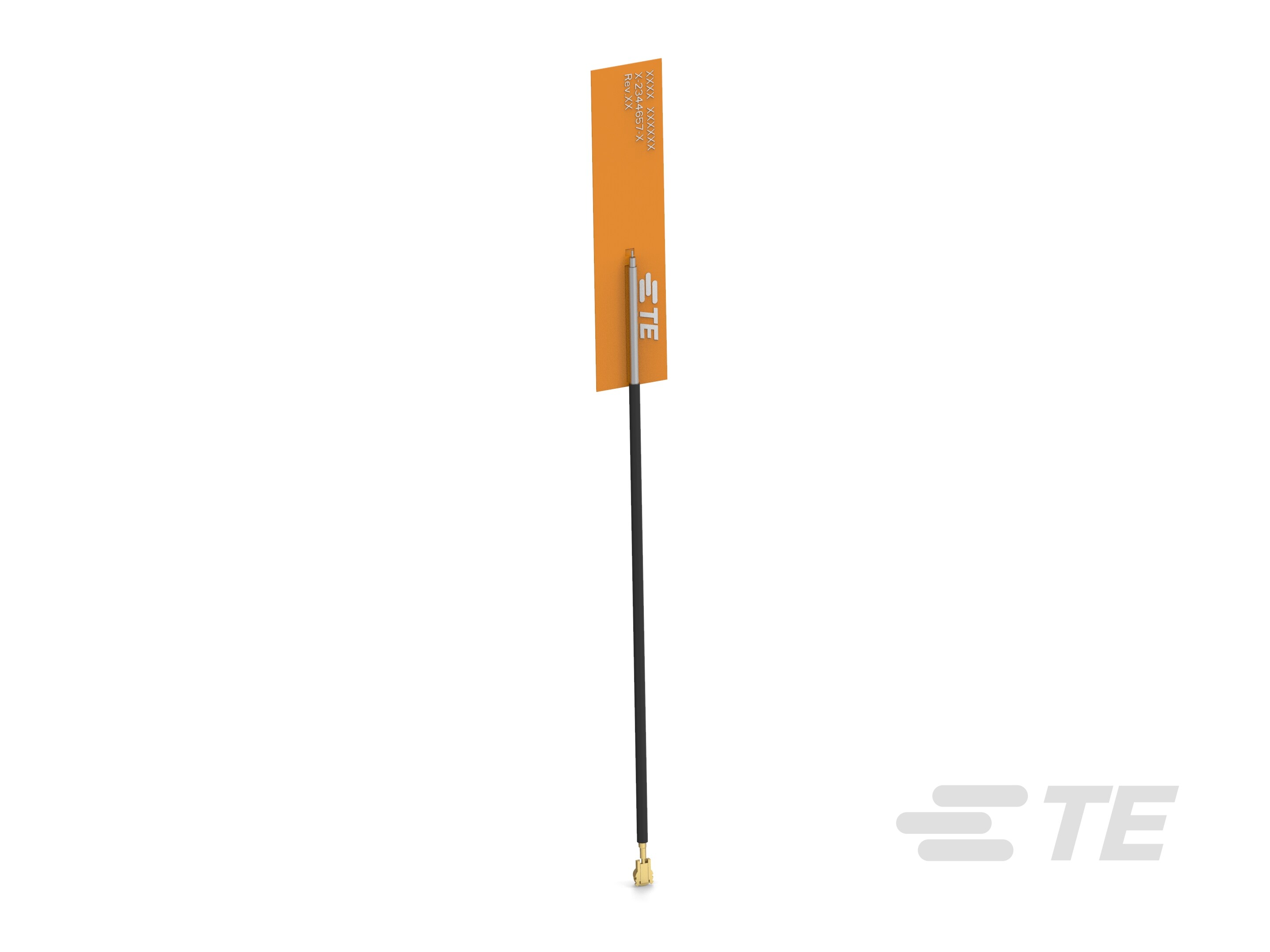

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2344657-2
Gain:5.3 dB
VSWR:2.7:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Band Type:Triple Band
Impedance:50 Ω
Antenna Type:Flexible PCB, Thin PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Application:Bluetooth, Wi-Fi
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
SKU:AMP2344657-2

Detailed Description

Stay connected seamlessly with our RoHS-compliant Triple Band Flexible PCB Antenna, perfect for ZigBee, Bluetooth, and various Wi-Fi protocols including 802.11a/ac/ad/ax/b/g/n. Operating across three distinct frequency bands, this omnidirectional antenna boasts a gain of 5.3 dB and a VSWR of 2.7:1, ensuring reliable performance. Designed for internal/embedded mounting with adhesive support, it features linear polarization and an impedance of 50 Ω. Covering a wide frequency range from 2400 MHz to 7125 MHz, it guarantees compatibility with Bluetooth and Wi-Fi applications. With multiple termination options available, including MHF, MHF1, U.FL, and UMCC, this antenna offers versatility for your connectivity needs. Perfect for compact devices, it is categorized under Antennas, Passives, and is a must-have component for efficient wireless communication.
