2344657-9

AMP2344657_9
Heilind Number:AMP2344657-9
Manufacturer:TE Connectivity
Manufacturer Number:2344657-9
Datasheet:Material Declaration (XLSX)
ECAD Model:
3D Model

Description:

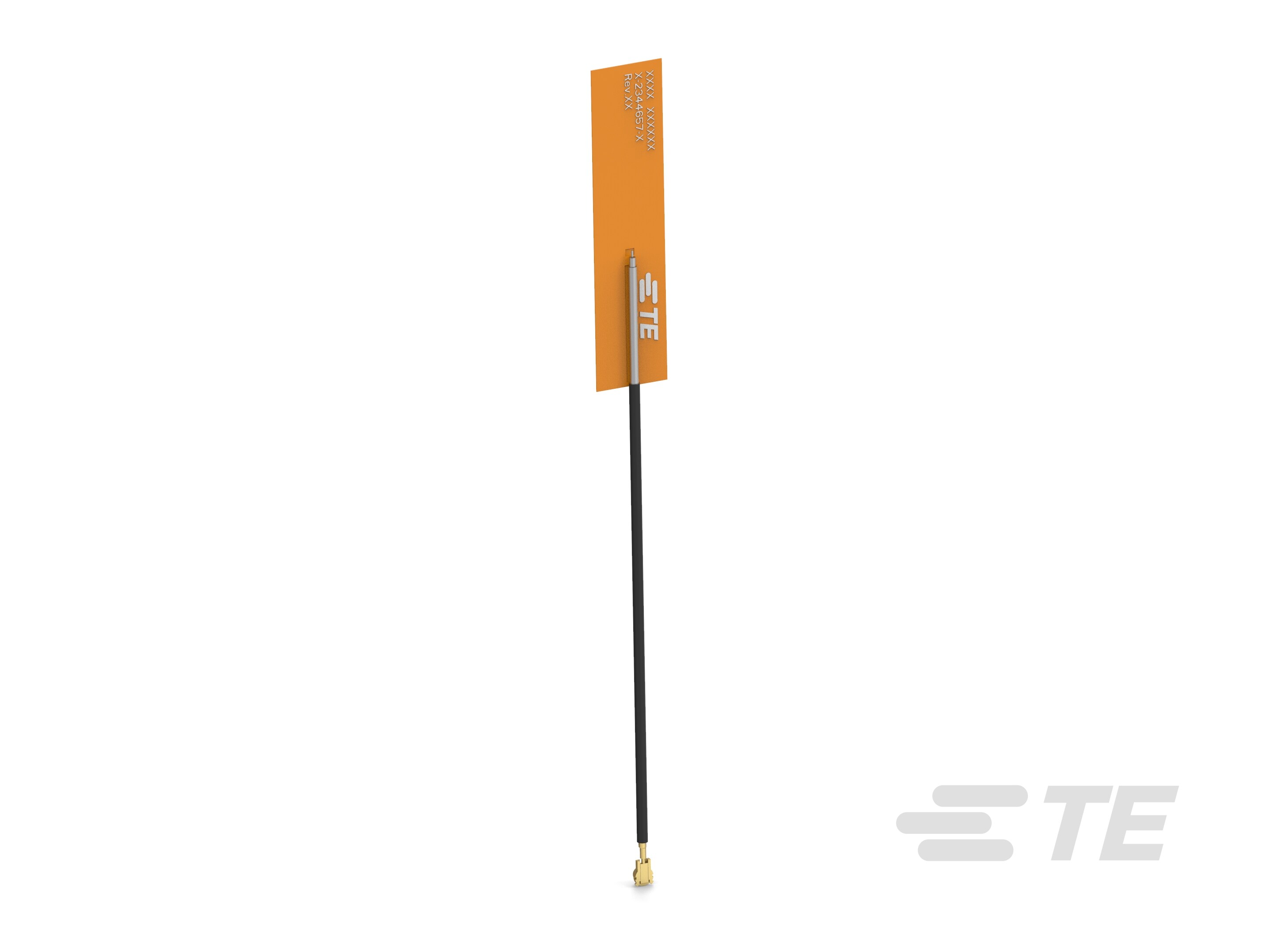

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2344657-9
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2.7:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:5.3 dB
SKU:AMP2344657-9

Detailed Description

Enhance your wireless connectivity with this high-performance Triple Band Flexible PCB Antenna. Designed for seamless integration in a variety of devices, this antenna operates across multiple bands including ZigBee, Bluetooth, and various Wi-Fi standards. With a gain of 5.3 dB and a VSWR of 2.7:1, it offers reliable signal strength and efficiency. The omnidirectional and linear polarization design ensures consistent performance in any environment. Easy to mount internally with adhesive backing, it is ideal for embedded applications. Supporting frequencies from 2400 MHz to 7125 MHz, it covers a wide range of wireless communication needs. Compatible with MHF, MHF1, U.FL, and UMCC terminations, it offers flexibility in connectivity options. Upgrade your device with this versatile antenna for seamless wireless communication.
