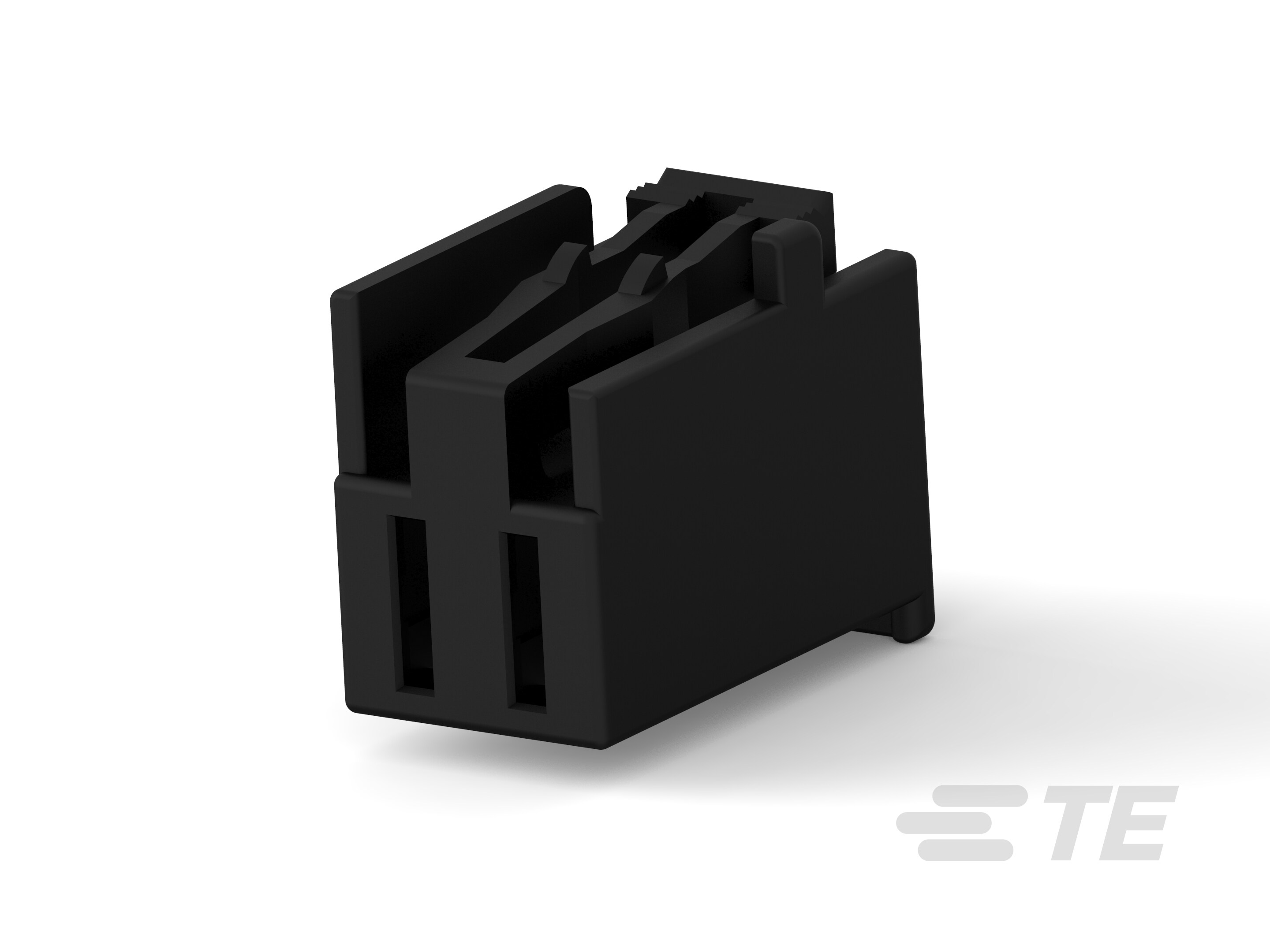

281871-3

Heilind Number:	AMP281871-3
Manufacturer:	TE Connectivity
Manufacturer Number:	281871-3
Datasheet:	Product Specification
ECAD Model:

Description:

5MM PITCH TAB/RECPT CONN

More >>

Specifications

Attribute	Value
Product Category:	Automotive Connectors & Accessories Automotive Connector Accessories
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 281871-3
Gender:	Housing for female terminals
Number of Rows:	1
Pitch:	.196 in, 5 mm
Voltage:	24 V DC
Polarization:	Yes
Body Material:	PA GF
Number of Positions:	2
GPL:	P01
Packaging:	Box
Operating Temperature Range:	-22 - 302 °F, -30 - 150 °C
Circuit Application:	Power & Signal
Sealable:	No
GPL Description:	Automotive
Connector and Contact Terminate To:	Wire & Cable
Product Code:	M108
Connector System:	Wire to Wire
Length:	.648 in
Cable Exit Angle:	180°
Height:	22 mm, .866 in
Width:	11.8 mm, .465 in
Mating Tab Width:	.196 in, 5 mm
Nominal Voltage Architecture:	24 V
Body Color:	Black
Serviceable:	Yes
Connector Code:	B
Mounting Feature:	Without
Terminal Position Assurance:	No
Connector Position Assurance Capable:	No
Hybrid Connector:	No
Primary Locking Feature:	Integrated in Housing
Part Aliases:	281871-3
SKU:	AMP281871-3

Detailed Description

Enhance your automotive wiring setup with this housing designed for female terminals. Offering a single-row configuration with a 5mm pitch, it ensures secure connections for power and signal applications. Crafted from durable PA GF material in sleek black, this housing guarantees reliable performance in a wide temperature range from -30 to 150°C. With a 24V DC voltage rating and integrated polarization feature, it is suitable for various automotive systems. Measuring .648 inches in length, .866 inches in height, and .465 inches in width, it accommodates two positions with a 180° cable exit angle. The connector, with a mating tab width of .196 inches, is easy to install without the need for lead-free solder processes. Perfect for wire-to-wire connections, it comes in a convenient box packaging and is RoHS compliant for environmentally conscious usage. Elevate your automotive connector setup with this versatile and serviceable component.
