282843-5

AMP282843-5
Heilind Number:AMP282843-5
Manufacturer:TE Connectivity
Manufacturer Number:282843-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

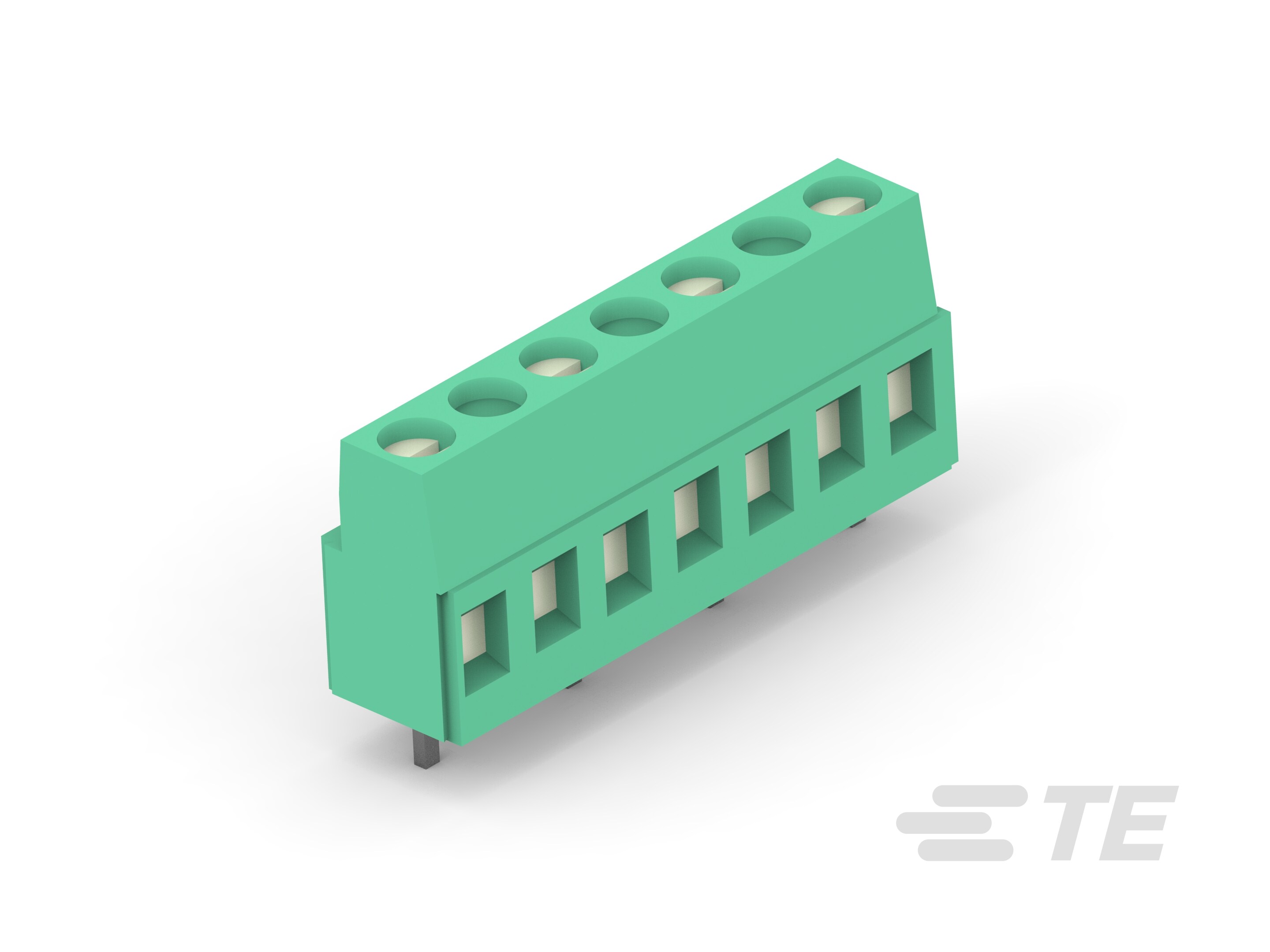

TERMI-BLOK PCB MOUNT 90 5P.1

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282843-5
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:5
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:10.16 mm, .4 in
Voltage:600 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:100
Contact Amperage:17.5 A
Number of Positions:5
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Marking Color:Black
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282843-5
SKU:AMP282843-5

Detailed Description

Easily mount our TERMI-BLOK PCB connector on your board for efficient power and signal transmission. With a 90-degree angle and 5 contacts in a single row, this connector is perfect for compact spaces. Featuring a durable PA 6/6 housing in a vibrant green color, it ensures reliable performance in industrial environments. Each contact is made of high-quality brass with tin plating, suitable for wire sizes ranging from 12 to 30 AWG. Wave solder capable and RoHS compliant, it meets international standards for lead-free soldering processes. Operating temperature ranges from -40 to 110°C (-40 to 230°F), making it ideal for a wide range of applications. The straight mount type with a pitch of 10.16mm (.4 in) and voltage rating of 600V AC guarantees secure connections. Additionally, its side stackable design with interlock feature provides added stability. Perfect for wire-to-board connections, this connector is a versatile solution for your electronic assemblies.
