282959-9

AMP282959-9
Heilind Number:AMP282959-9
Manufacturer:TE Connectivity
Manufacturer Number:282959-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

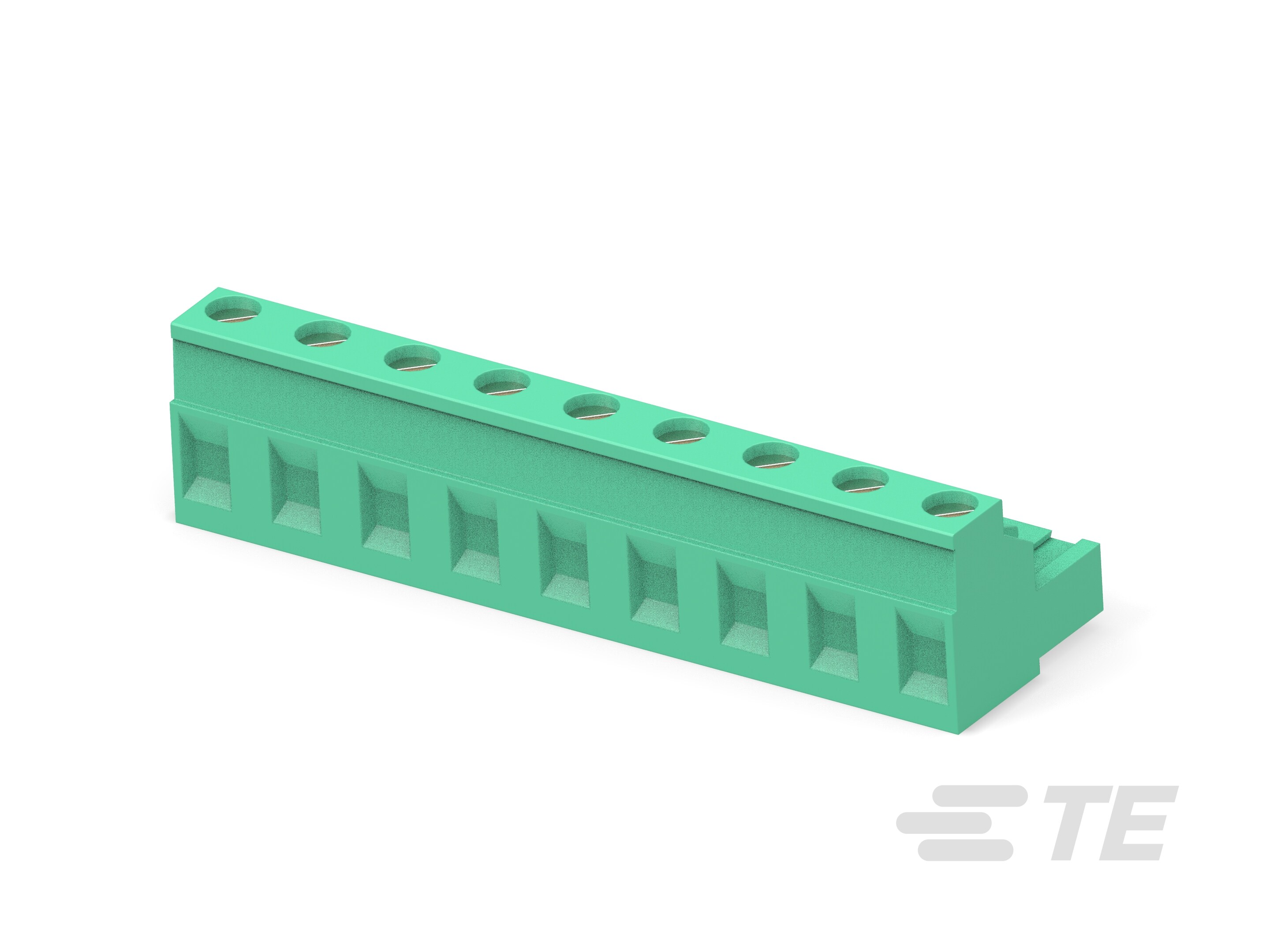

TERMI-BLOK PLUG 9P. 7

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282959-9
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.295 in, 7.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:50
Contact Amperage:15 A
Number of Positions:9
Housing Color:Green
GPL:124
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Screw Plating:Nickel
Entry Angle:Side, Top
Interlock:Without
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:282959-9
SKU:AMP282959-9

Detailed Description

Experience seamless power and signal connectivity with our TERMI-BLOK Stacking Plug. Crafted for efficiency, this 9-position plug offers a reliable amperage of 15 A, ensuring optimal performance in industrial settings. Its durable PA 6/6 housing in a vivid green color, coupled with phosphor bronze contact material with tin plating, guarantees longevity and secure connections. With a right-angle mount angle and compatibility with wire sizes ranging from 12 to 30 AWG, this plug is versatile and easy to install. Operating temperature ranges from -40 to 105 °C, making it suitable for a wide range of environments. Each package contains 50 units, ideal for larger projects. Designed for wire-to-board applications, this plug is ROHS compliant, meeting international standards for environmental responsibility. Upgrade your connectivity solutions with this high-quality TERMI-BLOK Plug.
