284514-9

AMP284514-9
Heilind Number:AMP284514-9
Manufacturer:TE Connectivity
Manufacturer Number:284514-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

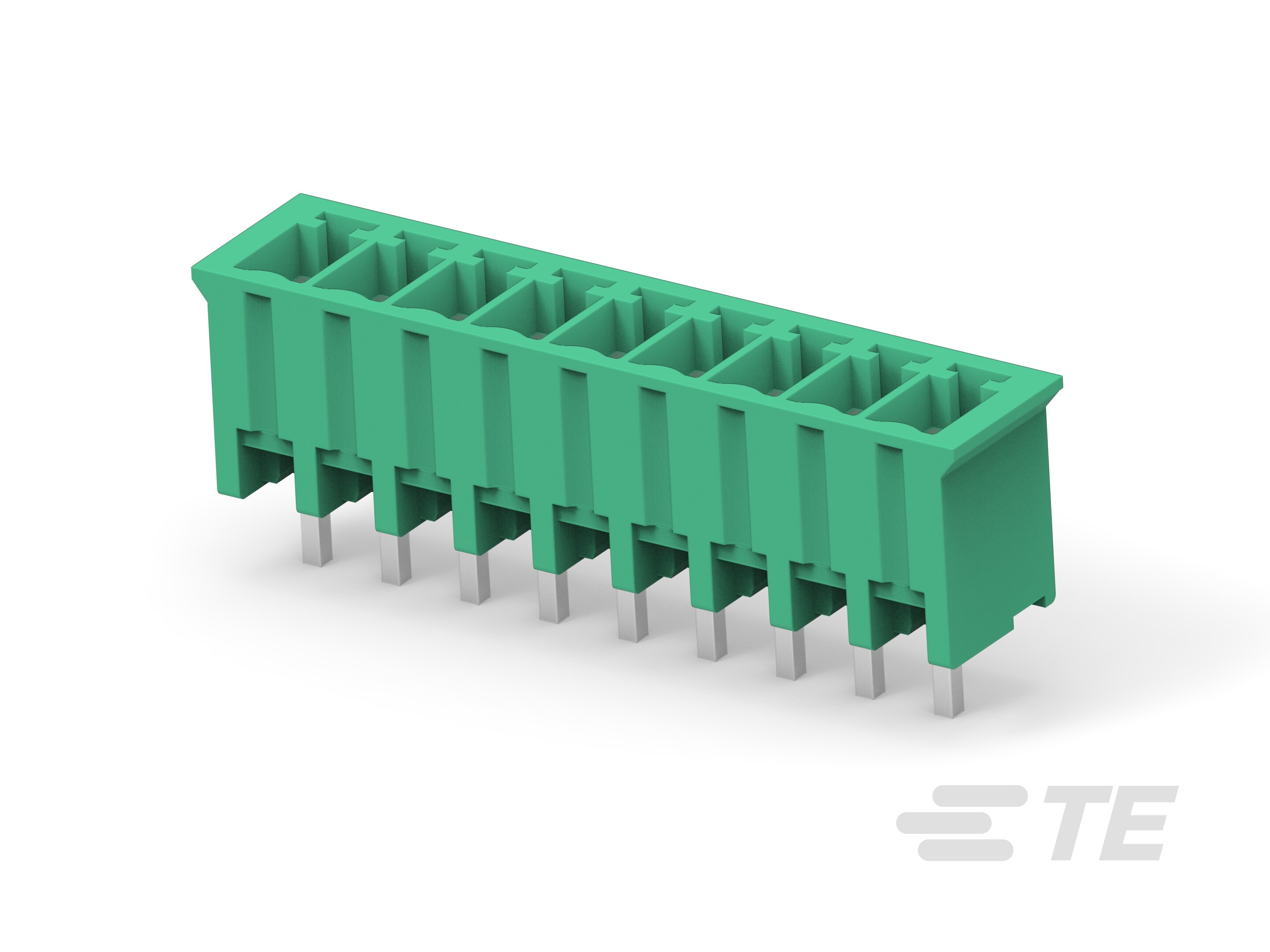

9 POS TERMI-BLOK HDR DIR. POL.

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284514-9
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:9
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Package Quantity:100
Contact Amperage:11 A
Number of Positions:9
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:180°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284514-9
SKU:AMP284514-9

Detailed Description

Easily connect power and signal wires with our 9-contact terminal block header. Designed for board mount installation, this header features a durable PA 6/6 housing in a sleek green color. With a pitch of 3.5 mm, it offers reliable connectivity for a variety of applications. The phosphor bronze contacts, plated with tin for industrial lead-free solder processes, ensure optimal performance. Operating in temperatures ranging from -40 to 105 °C, this header is suitable for diverse environments. Its shrouded header type and 180° mating angle provide secure connections, while the closed-end design enhances safety. Ideal for wire-to-board setups, this RoHS-compliant terminal block header is a dependable choice for your projects.
