284516-7

AMP284516-7
Heilind Number:AMP284516-7
Manufacturer:TE Connectivity
Manufacturer Number:284516-7
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

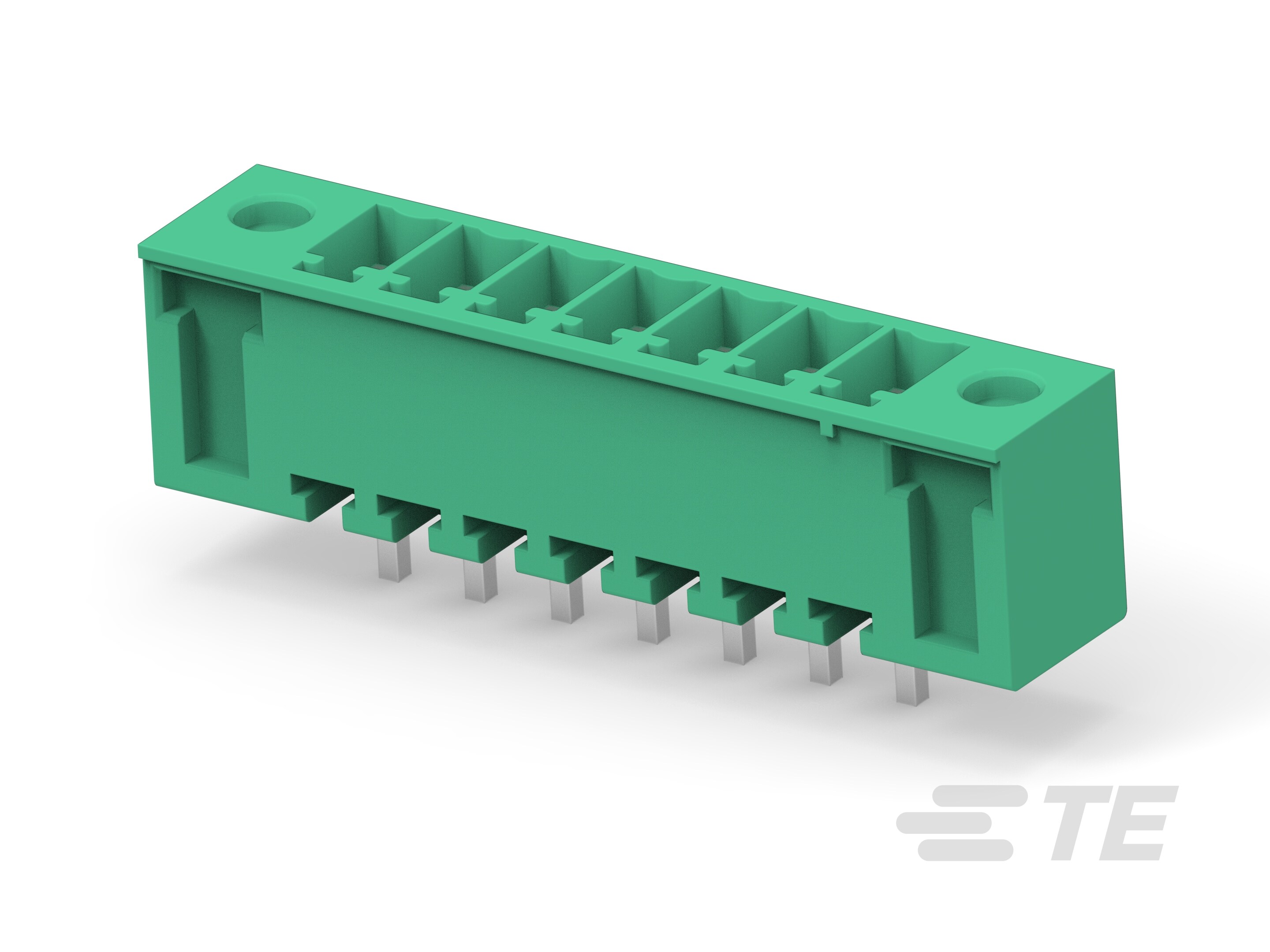

7P TERMIBLOK HDR DIR C VITI

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284516-7
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.138 in, 3.5 mm
Voltage:200 VAC
Mount Angle:Vertical
Block Type:PCB Mount
Contact Amperage:11 A
Number of Positions:7
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:With
Contact Mount Style:Through Hole
Mating Angle:180°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284516-7
SKU:AMP284516-7

Detailed Description

Easily connect power and signal lines with this versatile 7-position header. Designed for board mount installation, it features a pitch of 3.5 mm for efficient spacing. The housing, made of durable PA 6/6 material in a vibrant green color, ensures long-lasting performance even in industrial settings. With a contact amperage of 11 A and a voltage rating of 200 VAC, it offers reliable connectivity. Operating smoothly in temperatures ranging from -40 to 105 °C (-40 to 221 °F), this header is ideal for various applications. Featuring a shrouded design with a vertical mount angle, it provides secure and stable connections on printed circuit boards. The integrated closed end and threaded flange further enhance its functionality. Compliant with RoHS regulations, this header is a sustainable choice for your connectivity needs.
