284540-3

AMP284540-3
Heilind Number:AMP284540-3
Manufacturer:TE Connectivity
Manufacturer Number:284540-3
Datasheet:Drawing
ECAD Model:
3D Model

Description:

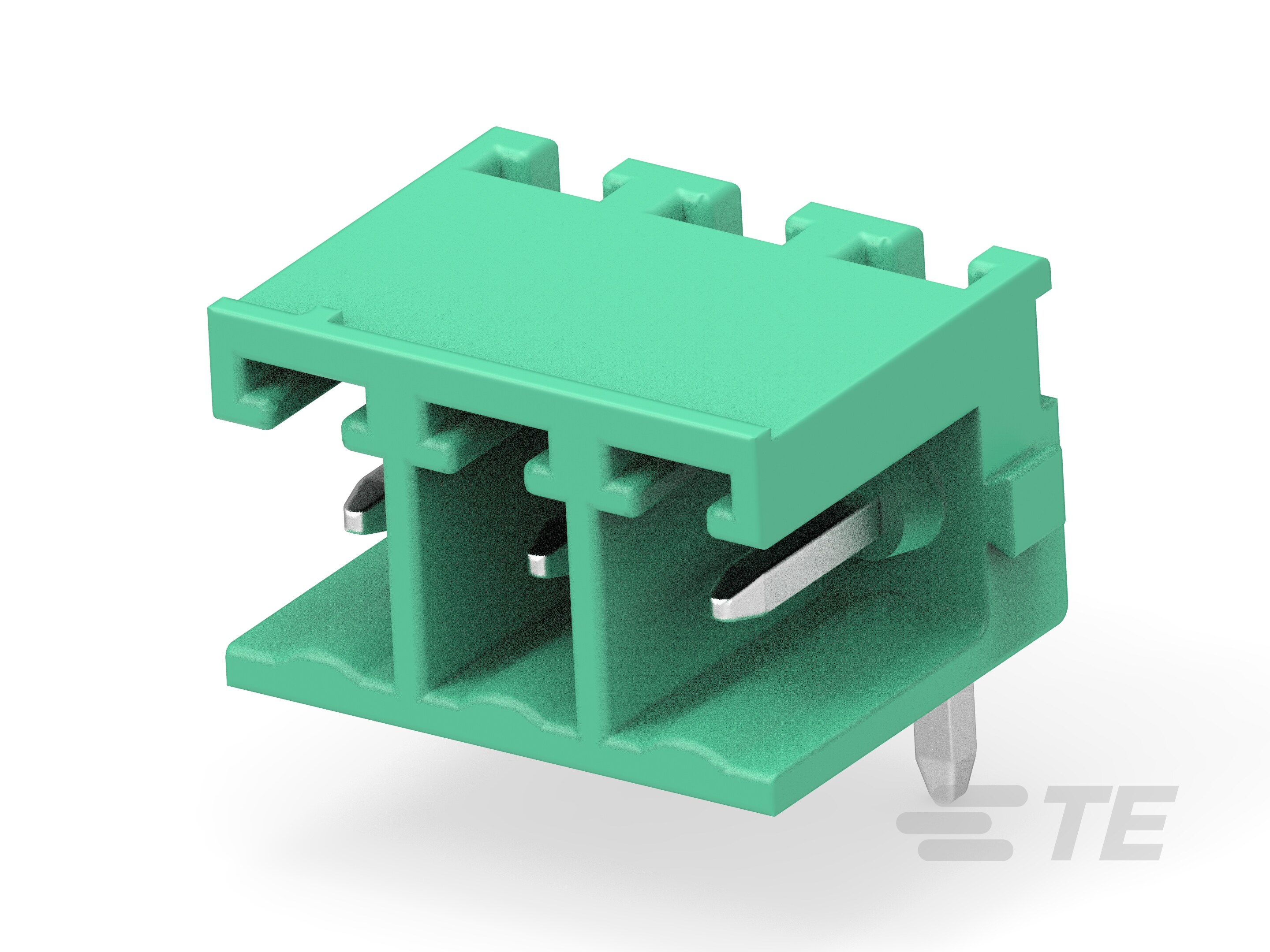

3 POS TERMI-BLOK 900 O.E. 3,5

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284540-3
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Package Quantity:200
Contact Amperage:11 A
Number of Positions:3
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7743
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Stacking Configuration:Side Stackable
Header Type:Partially Shrouded
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:90°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284540-3
SKU:AMP284540-3

Detailed Description

Easily connect power and signal components with this 11A header, designed for board mount installation. Featuring a single row with three positions, it's ideal for various industrial applications. The PA 6/6 housing in green ensures durability, while the phosphor bronze contacts with tin plating offer reliable conductivity. With a wave solder capability up to 265°C, it guarantees secure attachment to printed circuit boards. Suitable for wire sizes ranging from 14 to 30 AWG, this connector accommodates a wide range of setups. RoHS compliant and operating in temperatures from -40 to 105°C, it meets stringent quality and performance standards. Perfect for wire-to-board connections, this terminal block is a versatile and essential component in any project.
