| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 4-1617536-5 |
| Mount Type: | Socket Mount |
| Coil Resistance: | 160 Ω |
| Coil Voltage: | 12 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | Socket Pins |
| Contact Current Rating: | 2 A |
| Input Voltage: | 12 VDC |
| Part Aliases: | M39016/6-143L |
| SKU: | AMP4-1617536-5 |
4-1617536-5
| Heilind Number: | AMP4-1617536-5 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 4-1617536-5 |
| ECAD Model: | |
Specifications
Detailed Description

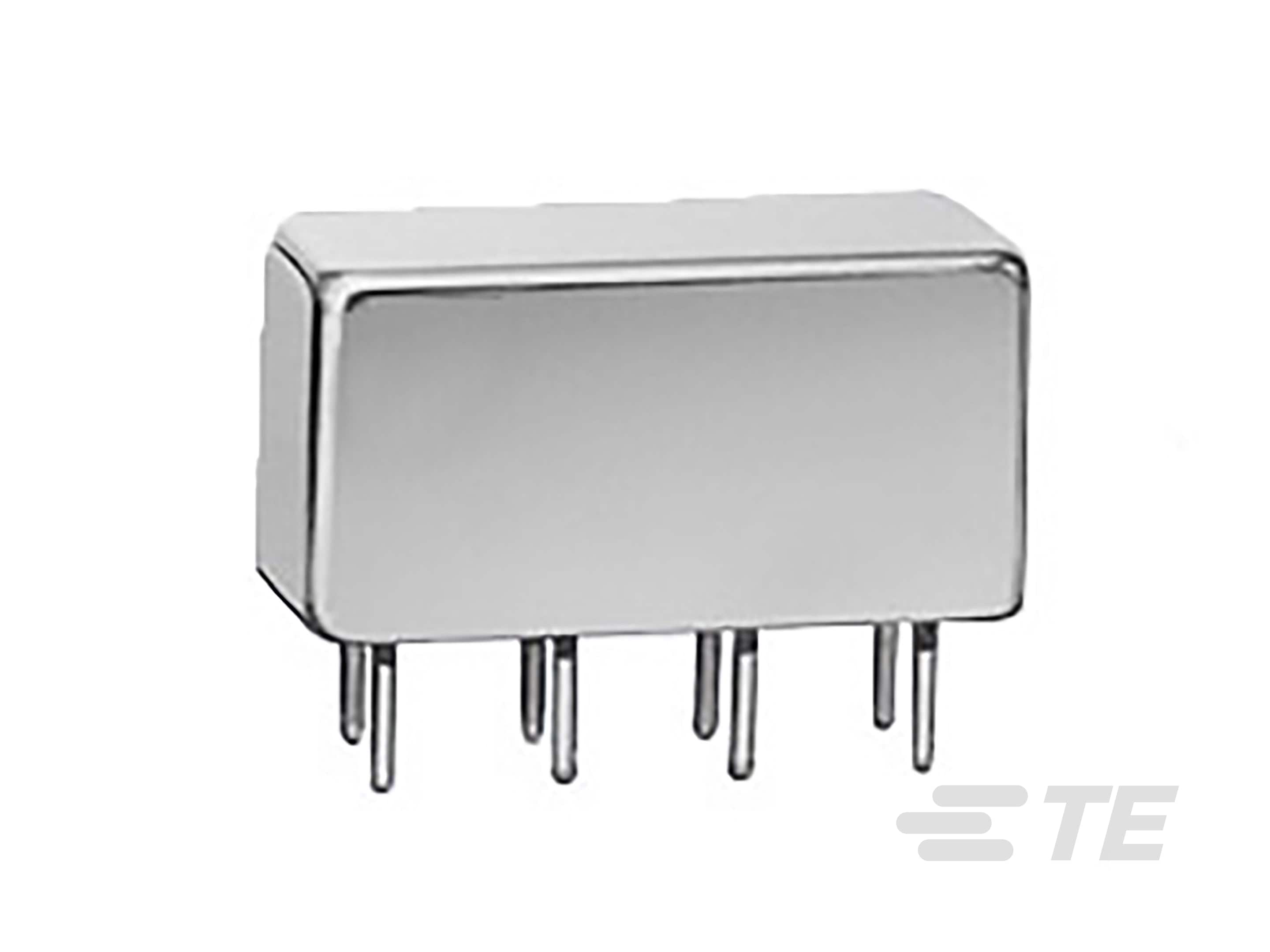

Enhance your electronic system with the HFW1230G03=M39016/6-143L relay, designed for high-performance signal and communication applications. Featuring a socket mount, this DPDT relay offers 2 Form C contact configuration with 2 C/O contacts for reliable connectivity. With a coil resistance of 160 Ω and a coil voltage of 12 VDC, it ensures efficient operation. The maximum switching voltage of 28 VDC, along with a contact current rating of 2 A, guarantees seamless power management. Termination via socket pins simplifies installation, making it a convenient choice for your project. While not RoHS compliant, its performance and reliability make it a valuable addition to any setup. Elevate your relay solutions with this versatile component.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 4-1617536-5 |
| Other Names: | M39016/6-143L |
