| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol RF |
| Manufacturer Part Number: | Amphenol RF 112419 |
| Connector Type: | BNC |
| Gender: | Jack |
| Termination Method: | PCB - Through Hole |
| Contact Material: | Phosphor Bronze |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | Not Rated |
| Orientation: | Right Angle |
| Impedance: | 75 Ω |
| Operating Frequency: | 4 Max GHz |
| Body Material: | Zinc Diecast |
| Panel Mount Type: | Bulkhead - Rear Mount |
| Body Finish: | Nickel |
| Coupling Type: | Bayonet |
| SKU: | AMR112419 |
112419
| Heilind Number: | AMR112419 |
| Manufacturer: | Amphenol RF |
| Manufacturer Number: | 112419 |
| ECAD Model: | |
Specifications
Detailed Description

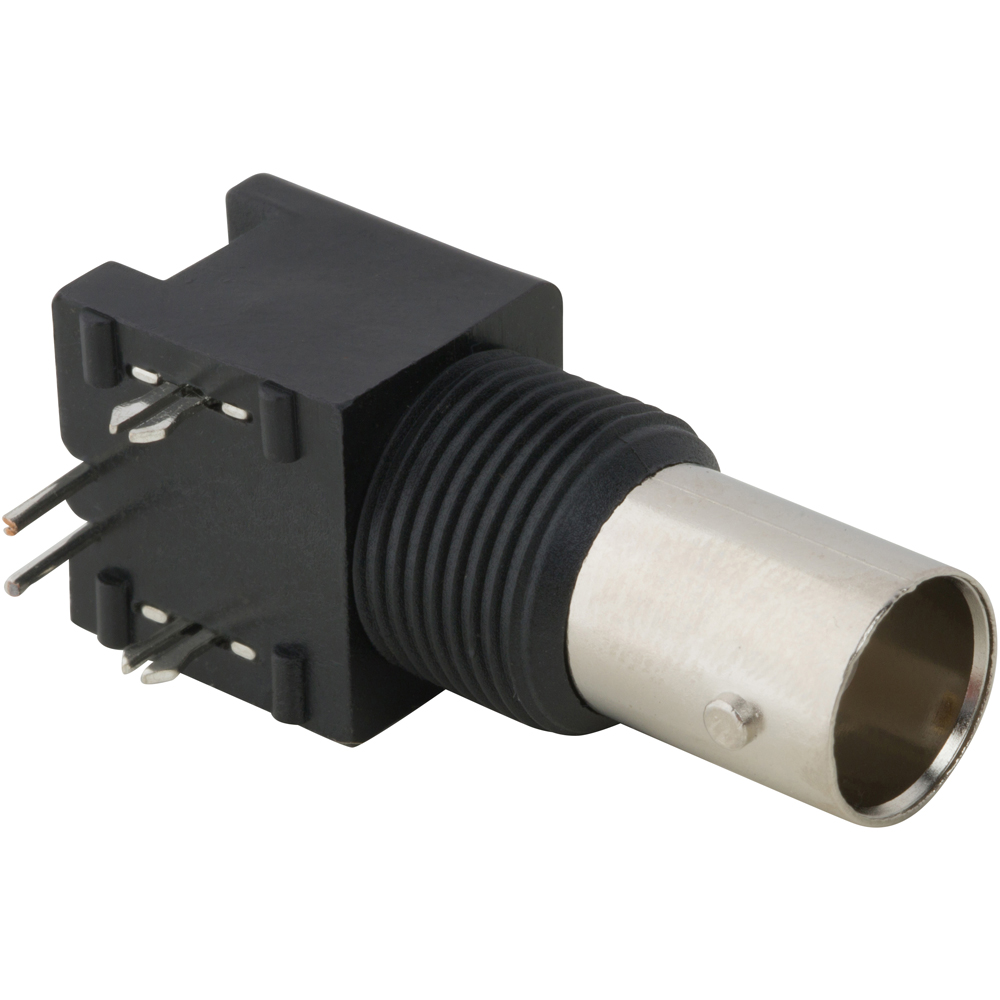

Enhance your RF connections with this BNC Right Angle PCB Jack. Designed for seamless integration into PCB setups, this connector ensures reliable performance with a 75 Ohm impedance. Crafted with durable materials including Zinc Diecast and Phosphor Bronze contacts, it guarantees longevity even in demanding environments. The convenient right-angle orientation and bulkhead rear mount feature make installation a breeze. With a maximum operating frequency of 4 GHz, it's perfect for high-speed applications. Plus, its nickel body finish not only adds a sleek touch but also offers corrosion resistance. Rest assured, this connector is RoHS compliant, meeting strict environmental standards. Upgrade your connectivity with this high-quality BNC jack.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
