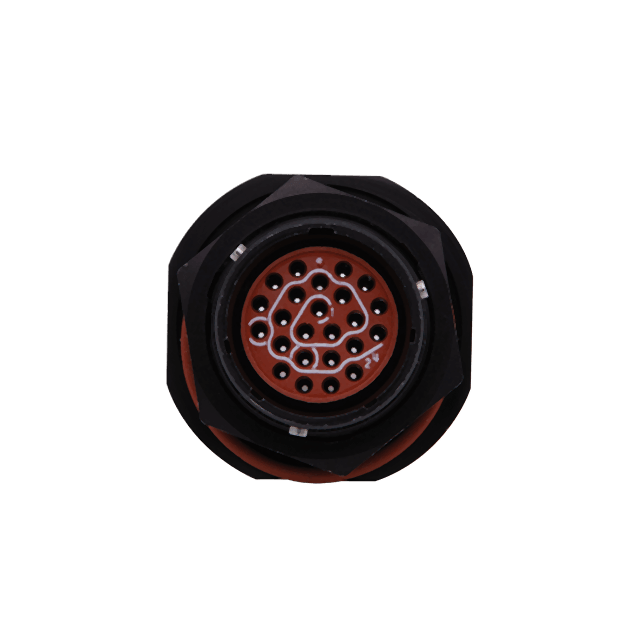

MS24266R16B24PY

CIMMS24266R16B24PY
Heilind Number:CIMMS24266R16B24PY
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24266R16B24PY
ECAD Model:
3D Model

Description:

STRAIGHT PLUG 24#20 PIN

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24266R16B24PY
Gender:Male
Mount Type:Cable Mount
Shell Size:16
Mating Type:Bayonet
Mount Angle:Straight
Shell Finish:Anodized
Mating Cycles:500 cycle
Seal Material:Fluorosilicone, Silicone Rubber
Current Rating:7.5 A
Voltage Rating:1500 VAC
Housing Material:Aluminum
Number of Contacts:24
Termination Method:Crimp
Military Specification:MIL-C-26500
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size - Insert Arrangement:16-24
Series:Omega
Shell Type:Plug, Straight
Contact Type:Pin
Shell Material:Aluminum
Locking Mechanism:Bayonet
Insert Arrangement:16-24
Operating Temperature:-55 to 200 °C
SKU:CIMMS24266R16B24PY

Detailed Description

The MS24266R16B24PY connector, built to MIL-DTL-26500 military specifications, is a rugged and reliable component in the Omega series. Designed for male gender application, its aluminum housing ensures durability in harsh environments. With 24 contacts and a cable mount configuration, it offers secure connectivity in demanding situations. The crimp termination method guarantees a strong and stable connection. Operating between -55°C to 200°C, this connector is suitable for a wide range of applications. Featuring a straight bayonet mating type and silicone rubber and fluorosilicone seals, it ensures quick and efficient installation. With a shell size of 16 and a maximum voltage rating of 1500 VAC, it meets high-performance standards. Ideal for hi-rel applications, the MS24266R16B24PY connector is a dependable solution for critical connectivity needs.
