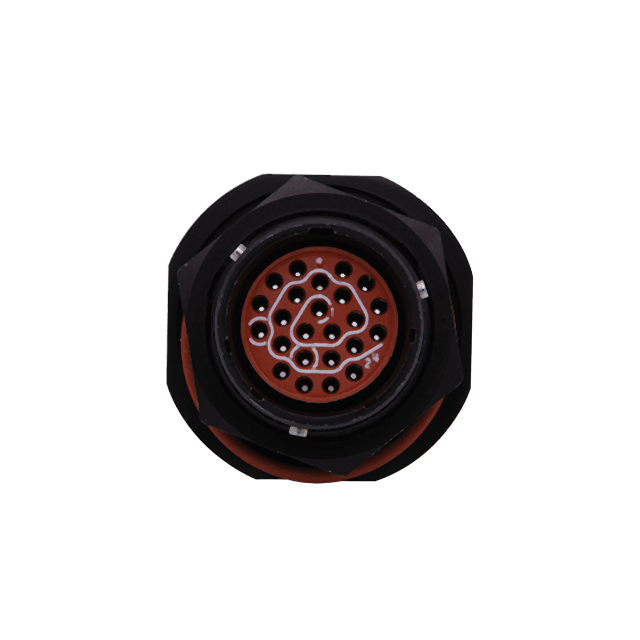

MS24266R8B2PN L/C

CIMMS24266R8B2PN L/C
Heilind Number:CIMMS24266R8B2PN L/C
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24266R8B2PN L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24266R8B2PN L/C
Gender:Male
Mount Type:Cable Mount
Shell Size:8
Mating Type:Bayonet
Mount Angle:Straight
Shell Finish:Anodized
Mating Cycles:500 cycle
Seal Material:Fluorosilicone, Silicone Rubber
Current Rating:7.5 A
Voltage Rating:1500 VAC
Housing Material:Aluminum
Number of Contacts:2
Termination Method:Crimp
Military Specification:MIL-C-26500
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size - Insert Arrangement:8-2
Series:Omega
Shell Type:Plug, Straight
Contact Type:Pin
Shell Material:Aluminum
Locking Mechanism:Bayonet
Insert Arrangement:8-2
Operating Temperature:-55 to 200 °C
SKU:CIMMS24266R8B2PN L/C

Detailed Description

Introducing the MIL-DTL-26500 certified MS24266R8B2PN L/C Circular Connector, part of the rugged Omega series designed for high-performance in demanding environments. This male connector features a durable aluminum housing with a straight cable mount for secure installations. With a shell size of 8 and bayonet mating type, it ensures a reliable connection with 500 mating cycles. Operating smoothly in temperatures ranging from -55°C to 200°C, it's suitable for even the most extreme conditions. The silicone rubber and fluorosilicone seal materials provide added protection, while the anodized shell finish enhances durability. With a current rating of 7.5A and voltage rating of 1500VAC, it meets strict industry standards for quality and reliability. Please note, this assembly does not ship with contacts, allowing for customization to specific application requirements. Trust in the MS24266R8B2PNLC for your critical connectivity needs.
