| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032642845 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | DIN 41612 |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 500 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09032642845 |
09032642845
Specifications
Detailed Description

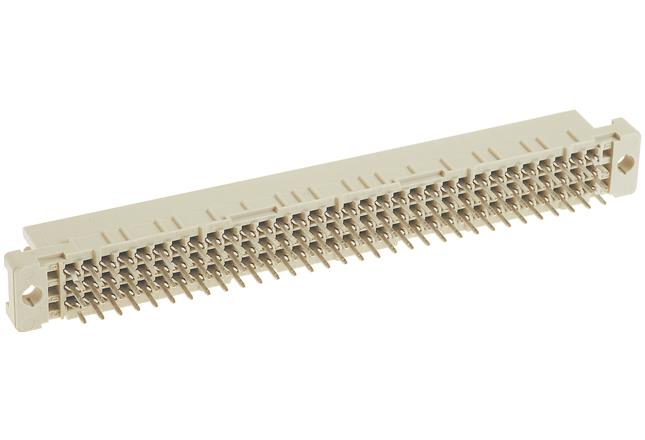

Introducing the DIN 41612 Type C Connector, a vital component for seamless motherboard to daughtercard and mezzanine connections. Designed for reliability, this female connector features a robust housing made of glass-fibre filled thermoplastic resin in a sleek Pebble Gray hue. With 64 contacts spread across 3 rows and a pitch of 2.54mm, it ensures efficient signal transmission. The termination method of soldering guarantees a secure and durable connection, while the copper alloy contacts with tin over nickel plating offer excellent conductivity. Operating in a wide temperature range from -55°C to 125°C, it is suitable for various environments. With a current rating of 2A and voltage rating of 1kV, this connector is both high-performing and safe. Its UL 94V-0 flammability rating further ensures peace of mind. Trust in the DIN 41612 Type C Connector for your connectivity needs in board-to-board PCB applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
