| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185266901 |
| Color: | Gray |
| Pitch: | 2.54 mm |
| Series: | SEK Standard |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 26 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09185266901 |
09185266901
Specifications
Detailed Description

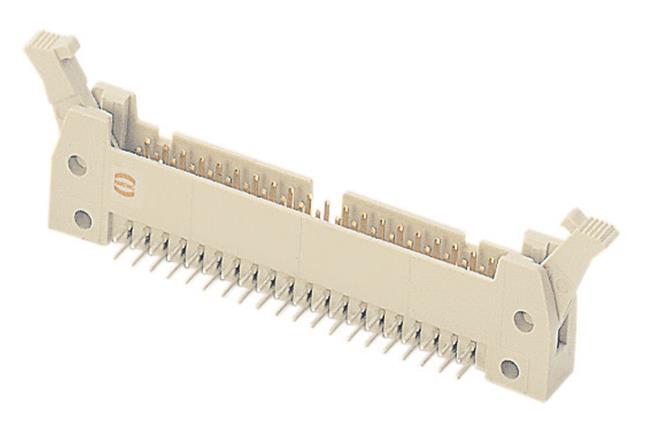

The SEK Standard Connector ( 09185266901) is a reliable and versatile male connector designed for PCB to cable connections. Constructed with durable thermoplastic resin (PBT) in a sleek Beige finish, this connector offers secure wave soldering termination. With a high current rating of 1A and 26 contacts, it ensures efficient power transmission. The gray color and compact design make it suitable for various applications. Meeting stringent quality standards, it features copper alloy contacts with tin over nickel plating, ensuring excellent conductivity and longevity. With a wide operating temperature range from -55°C to 125°C, it guarantees reliable performance even in harsh environments. The SEK Standard Connector is a crucial component for any electronic assembly, offering seamless and durable connectivity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
