| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195106914 |
| Color: | Beige |
| Pitch: | 2.54 mm |
| Series: | SEK Standard |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 10 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195106914 |
09195106914
Specifications
Detailed Description

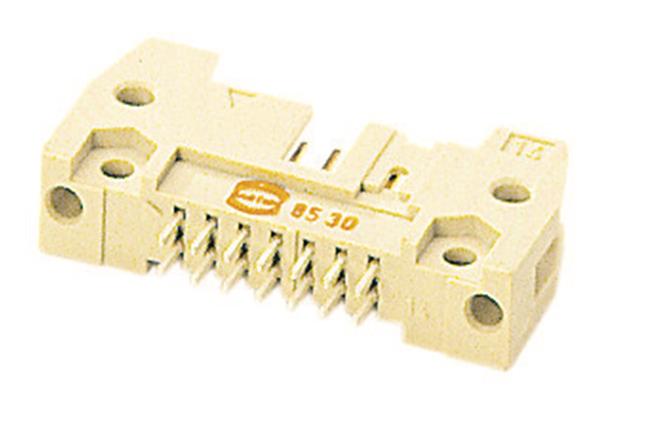

SEK Standard Male Connector is a reliable and durable component designed for seamless PCB to cable connections. With a pitch of 2.54mm and 10 contacts arranged in 2 rows, it offers efficient signal transmission. The connector features a Thermoplastic resin (PCT) housing in a sleek Beige color, ensuring both strength and aesthetics. Its reflow soldering termination method (THR/SMC) guarantees secure attachment, even in high-temperature environments, with a rated current of 1A. Crafted with Copper Alloy contacts plated with Tin Over Nickel and Noble Metal Over Nickel, it maintains excellent conductivity and corrosion resistance. With an operating temperature range from -55°C to 125°C, it is suitable for a wide range of applications. The SEK Standard Connector, with its IP20 rating and UL 94V-0 flammability rating, ensures safety and reliability in every use case.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
