09195166904

HRT09195166904
Heilind Number:HRT09195166904
Manufacturer:HARTING
Manufacturer Number:09195166904
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

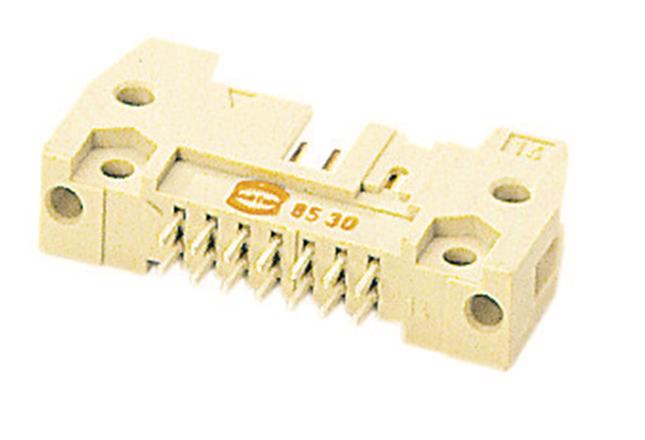

SEK, Standard, Connector; Male connector; Thermoplastic resin (PCT), Beige; PCB to cable; Reflow soldering termination (THR/SMC); Rated current: 1A

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09195166904
Color:Beige
Pitch:2.54 mm
Series:SEK Standard
IP Rating:IP20
Mount Angle:Straight
Tail Length:2.9 mm
Current Rating:1 A
Number of Rows:2
Voltage Rating:1 kV
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Contact Material:Copper Alloy
Housing Material:Plastic
Number of Contacts:16
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Part Aliases:
SKU:HRT09195166904

Detailed Description

Introducing the SEK Standard Male Connector, designed for seamless PCB to cable connectivity. Crafted with durable thermoplastic resin (PCT) in a classic beige hue, this connector ensures reliable performance in a variety of applications. With a reflow soldering termination method (THR/SMC) and a high current rating of 1A, it guarantees secure and efficient power transmission. Featuring 16 contacts in 2 rows, each made of copper alloy with tin over nickel plating, it offers excellent conductivity and corrosion resistance. Operating temperature ranging from -55°C to 125°C, along with a flammability rating of UL 94V-0, make it suitable for even the most demanding environments. Compliant with IP20 standards for dust and moisture protection, this connector is ideal for use in industrial and commercial settings. Trust in the SEK Standard Connector for dependable and high-performance connectivity solutions.
