| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09721646909 |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Tail Length: | 17 mm |
| Mating Cycles: | 400 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1.55 kV, 1 kV |
| Contact Plating: | Gold Over Nickel Phosphorus Over Nickel, Nickel |
| Housing Material: | Glass-Filled Plastic |
| Performance Level: | Class II |
| Number of Contacts: | 64 |
| Termination Method: | Wire Wrap |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09721646909 |
09721646909
Specifications
Detailed Description

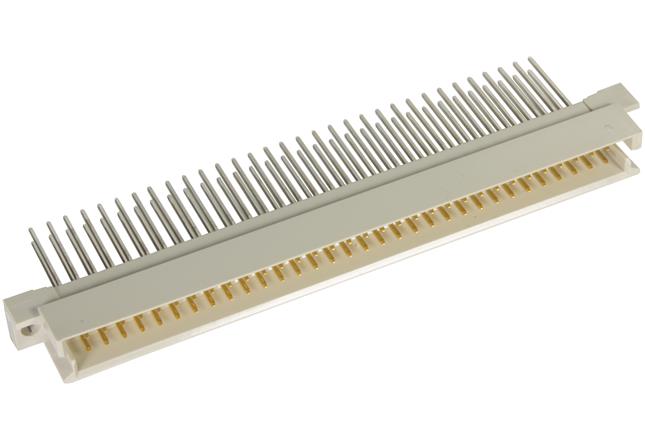

Introducing the DIN 41612 Type Q Male Connector, a versatile and durable solution for your connectivity needs. This connector features a thermoplastic resin housing with glass-fibre filling, ensuring robust performance in various environments. With 64 contacts arranged in 2 rows, it allows for efficient PCB to cable and cable to cable connections. The wire wrap termination method guarantees secure and reliable contact. Nickel and gold plating over nickel phosphorus offers excellent conductivity, while a wide operating temperature range of -55°C to 125°C ensures suitability for diverse applications. With a 2.54mm pitch and straight mount angle, it facilitates easy installation. Rated for 400 mating cycles, this Class II connector can withstand frequent use. Perfect for backplane and PCB applications, it offers a current rating of 2A and voltage rating of 1.55kV, making it ideal for high-performance systems. Upgrade your connectivity setup with the DIN 41612 Type Q Male Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
