LP5-31B22W

OTTLP5_31B22W
Heilind Number:OTTLP5-31B22W
Manufacturer:OTTO Controls
Manufacturer Number:LP5-31B22W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

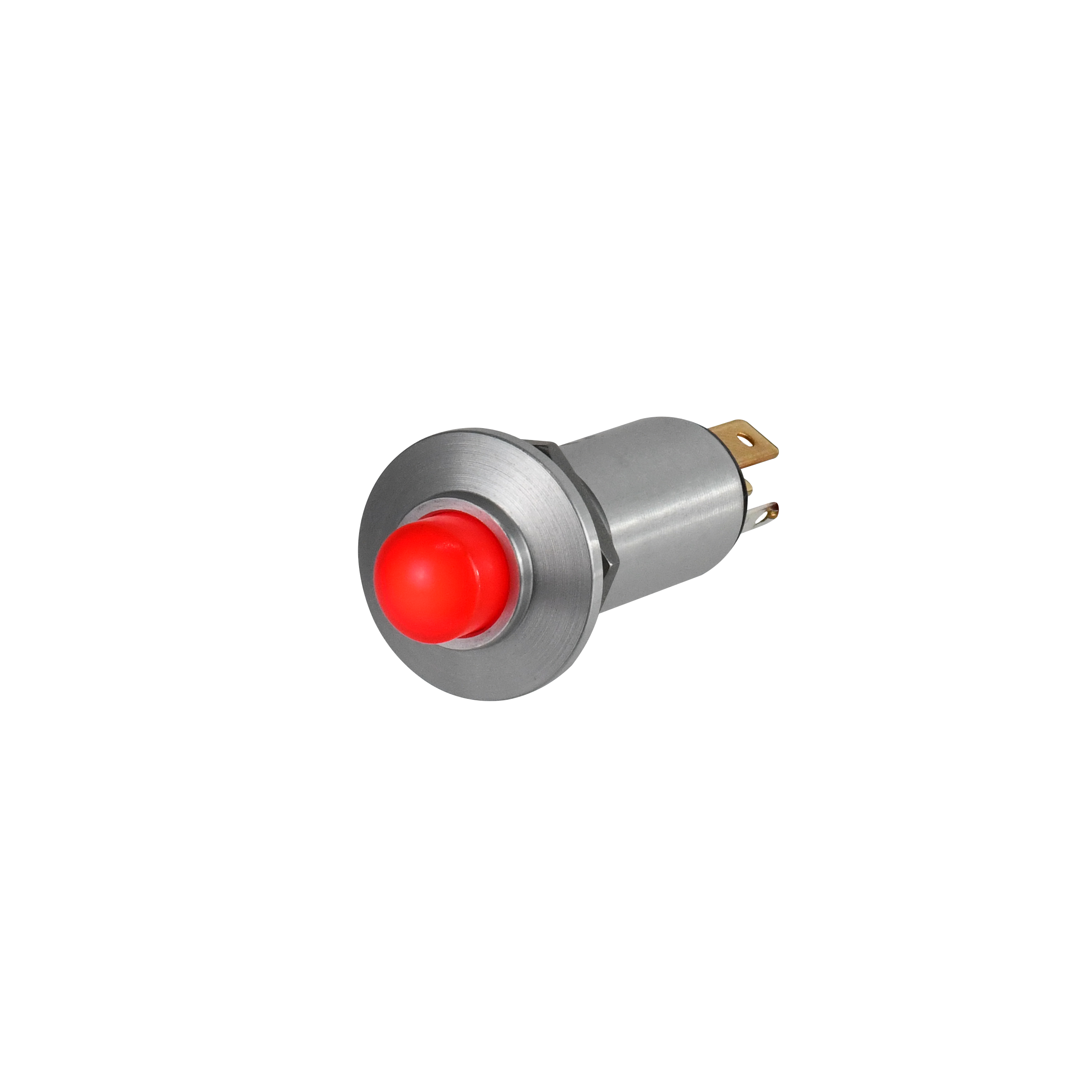

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-31B22W
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.25 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP5-31B22W

Detailed Description

The LP5 series pushbutton switch, SKU LP5-31B22W, seamlessly combines durable construction with reliable performance for various applications. Featuring a black aluminum case with a white translucent cap, this switch is not only visually appealing but also IP6K4S rated for dust and water resistance. The raised dome button actuator, made of thermoplastic, offers a comfortable and responsive interface. With a SPST-NO contact configuration and a silver contact plating, it ensures efficient conductivity. The switch is designed for panel mounting and has a 5A current rating, suitable for both AC (115V) and DC (28V) applications. The green illuminated button provides visual feedback, with a low 2V illumination voltage. Operating in temperatures ranging from -55°C to 85°C, and with a durability rating of 25,000 cycles, this pushbutton switch is a reliable choice for demanding environments.
