LP9-22111F28

OTTLP9_22111F28
Heilind Number:OTTLP9-22111F28
Manufacturer:OTTO Controls
Manufacturer Number:LP9-22111F28
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

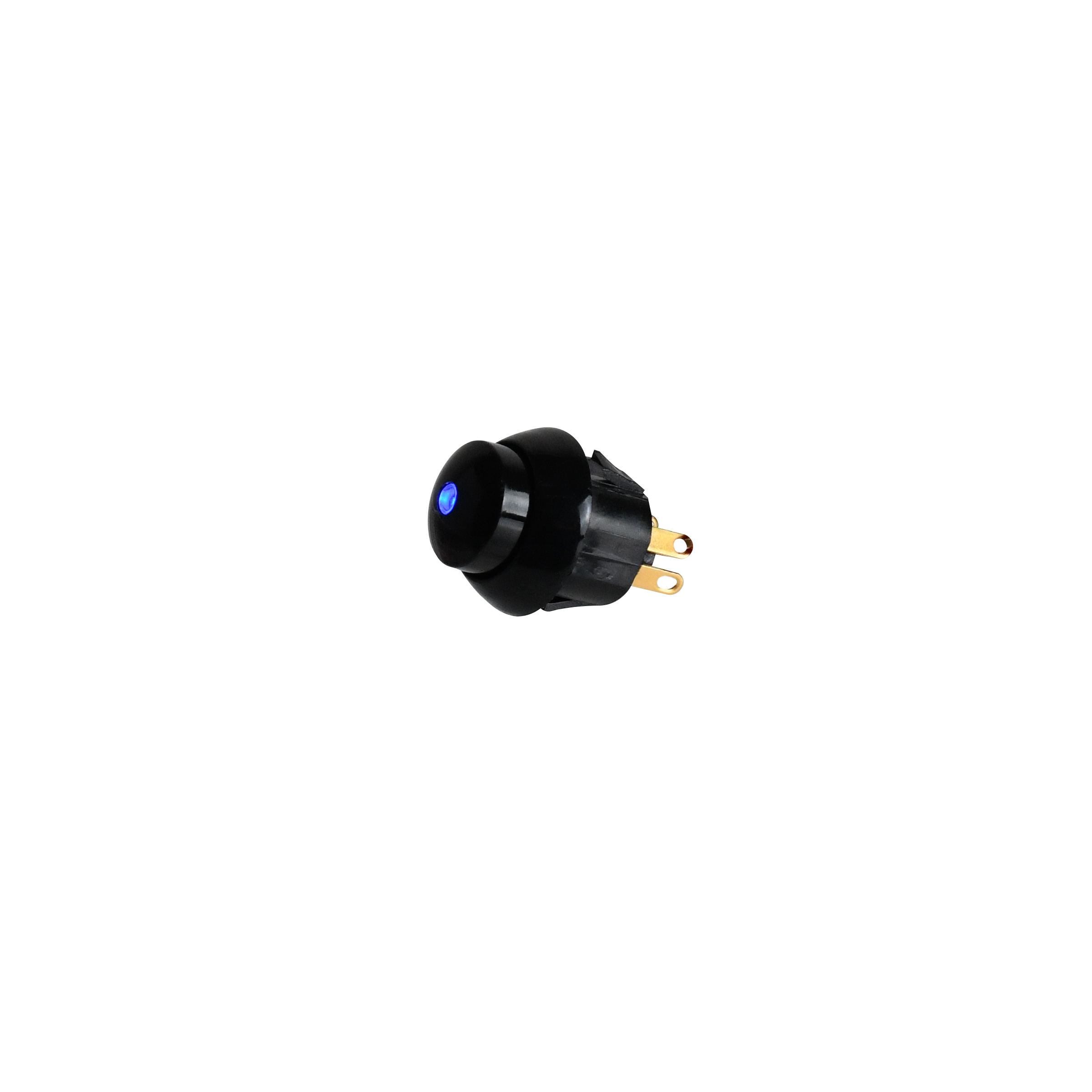

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-22111F28
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Gray
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP9-22111F28

Detailed Description

The LP9 series Illuminated Dome Pushbutton Switch, with SKU LP9-22111F28, offers reliable performance in demanding environments. Featuring a durable Thermoplastic housing in Black, this sealed switch is ideal for industrial applications. Its Gray button with Raised Dome Lightpipe design ensures easy operation, while the Red illumination provides clear visual feedback. With an IP6K8S rating and gold-plated brass contacts, it guarantees robustness and longevity. The Off-(On) switch function, SPST-NO contact configuration, and 5A current rating make it versatile for various circuit control tasks. Mounted securely on panels with solder termination, it operates at temperatures ranging from -55°C to 85°C, accommodating harsh conditions. With a maximum voltage rating of 115VAC and 28VDC, it's suitable for a wide range of power systems. The LP9 Illuminated Dome Pushbutton Switch is a high-quality, essential component in the Push Button Switches category, delivering performance and durability.
