P1-11621W

OTTP1_11621W
Heilind Number:OTTP1-11621W
Manufacturer:OTTO Controls
Manufacturer Number:P1-11621W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

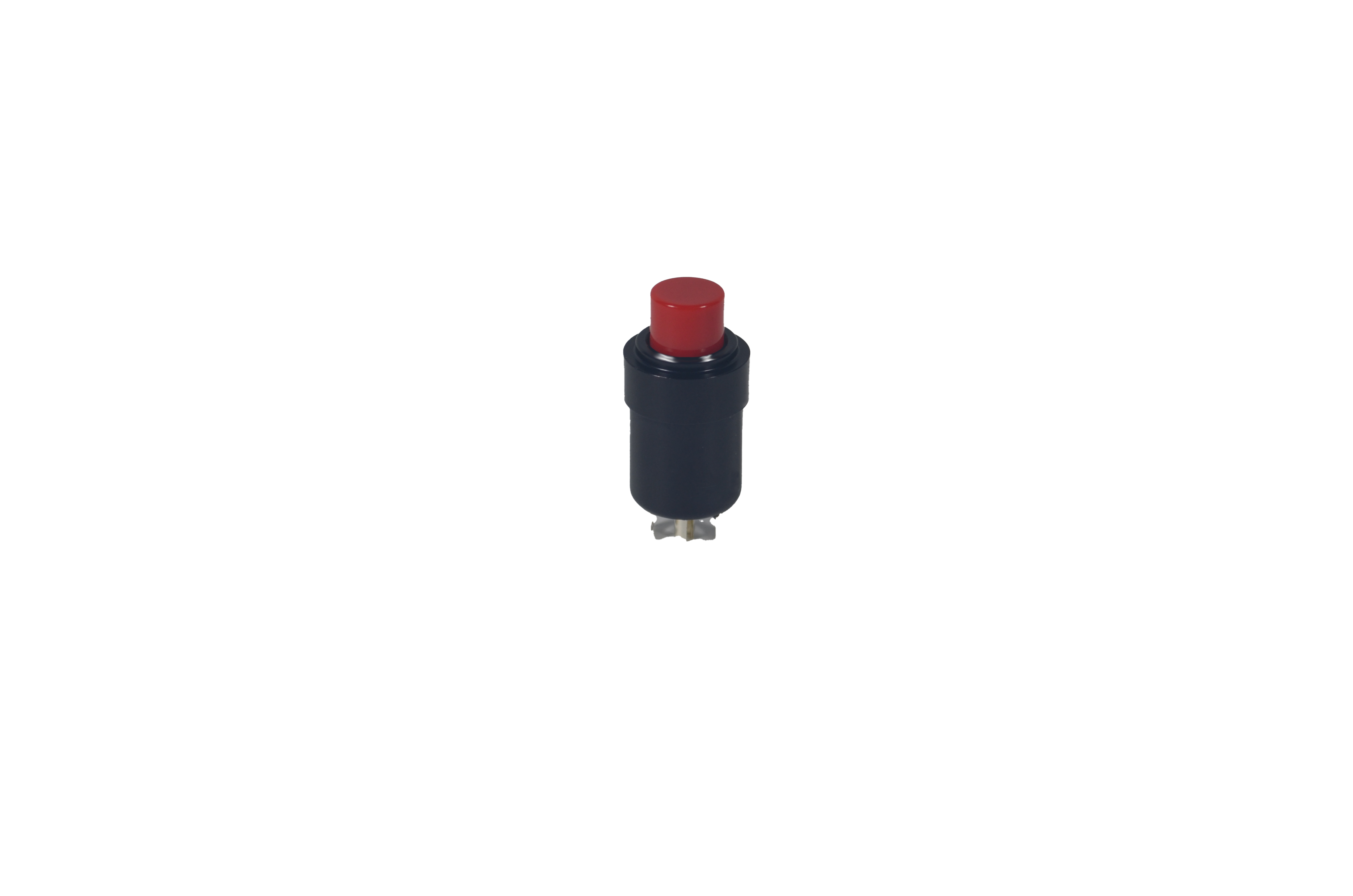

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-11621W
Series:P1
Cap Color:Red
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-11621W

Detailed Description

The P1-11621W Precision Snap-Action Pushbutton Switch, part of the P1 series, combines durability and reliability for seamless operation. Featuring a red button with a sleek flat design and round shape, it offers a tactile response for user convenience. With an IP rating of 3 and sealed construction, this switch is suitable for various environments. The silver-plated brass contacts ensure efficient conductivity, while the aluminum housing and thermoplastic actuator guarantee long-lasting performance. Designed for panel mounting with solder termination, it can handle up to 10A current at 115VAC or 28VDC. Operating smoothly between -55°C to 85°C, it offers a lifespan of 25,000 cycles. Ideal for applications requiring precise switching, this pushbutton switch is a reliable choice for industrial use.
