P1-12111

OTTP1_12111
Heilind Number:OTTP1-12111
Manufacturer:OTTO Controls
Manufacturer Number:P1-12111
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

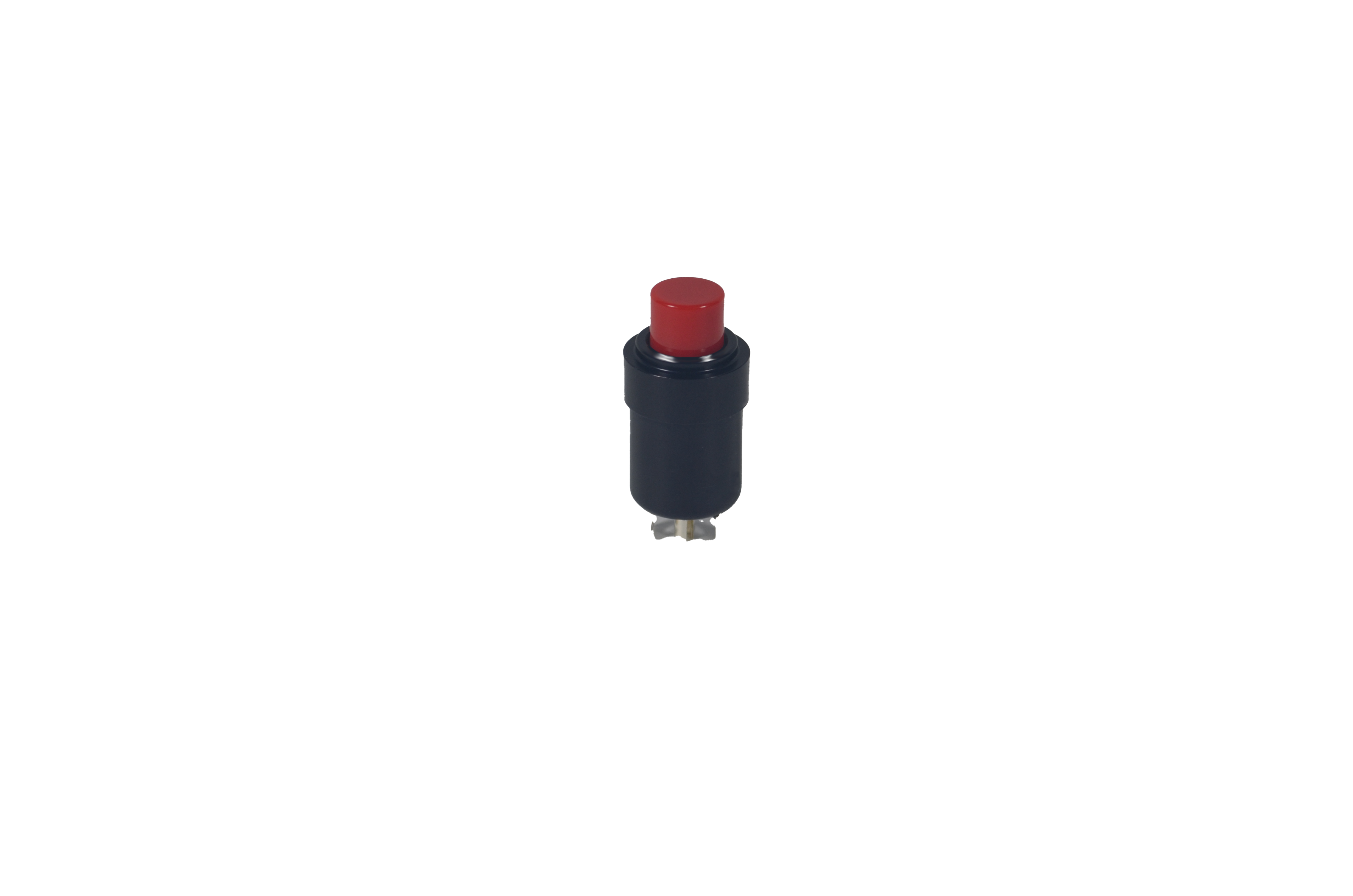

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-12111
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Red
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-12111

Detailed Description

Introducing the P1-12111 Pushbutton Switch from the P1 series. This precision snap-action switch features a durable construction with a sealed aluminum housing in sleek black and red accents. Designed for panel mount installation, it offers reliable performance with a 10A current rating and a contact configuration of SPST-NO. The button actuator, made of thermoplastic, has a flat, round shape for comfortable operation. With an IP rating of Symbol 2, this switch ensures protection against dust and water ingress, making it suitable for various environments. Featuring a contact plating of silver and brass contact material, it guarantees efficient conductivity. Ideal for applications requiring a non-illuminated, momentary-off (on) switch, it operates at a wide temperature range from -55°C to 85°C and has a long durability rating of 25,000 cycles. Whether for industrial machinery, automotive, or aerospace use, the P1-12111 is a reliable choice for critical switching needs.
