| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P1-12221 |
| Series: | P1 |
| Cap Color: | Red |
| IP Rating: | Symbol 2 |
| Case Color: | Black |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flat) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Silver |
| Switch Function: | ON-OFF |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NC |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP1-12221 |
P1-12221
Specifications
Detailed Description

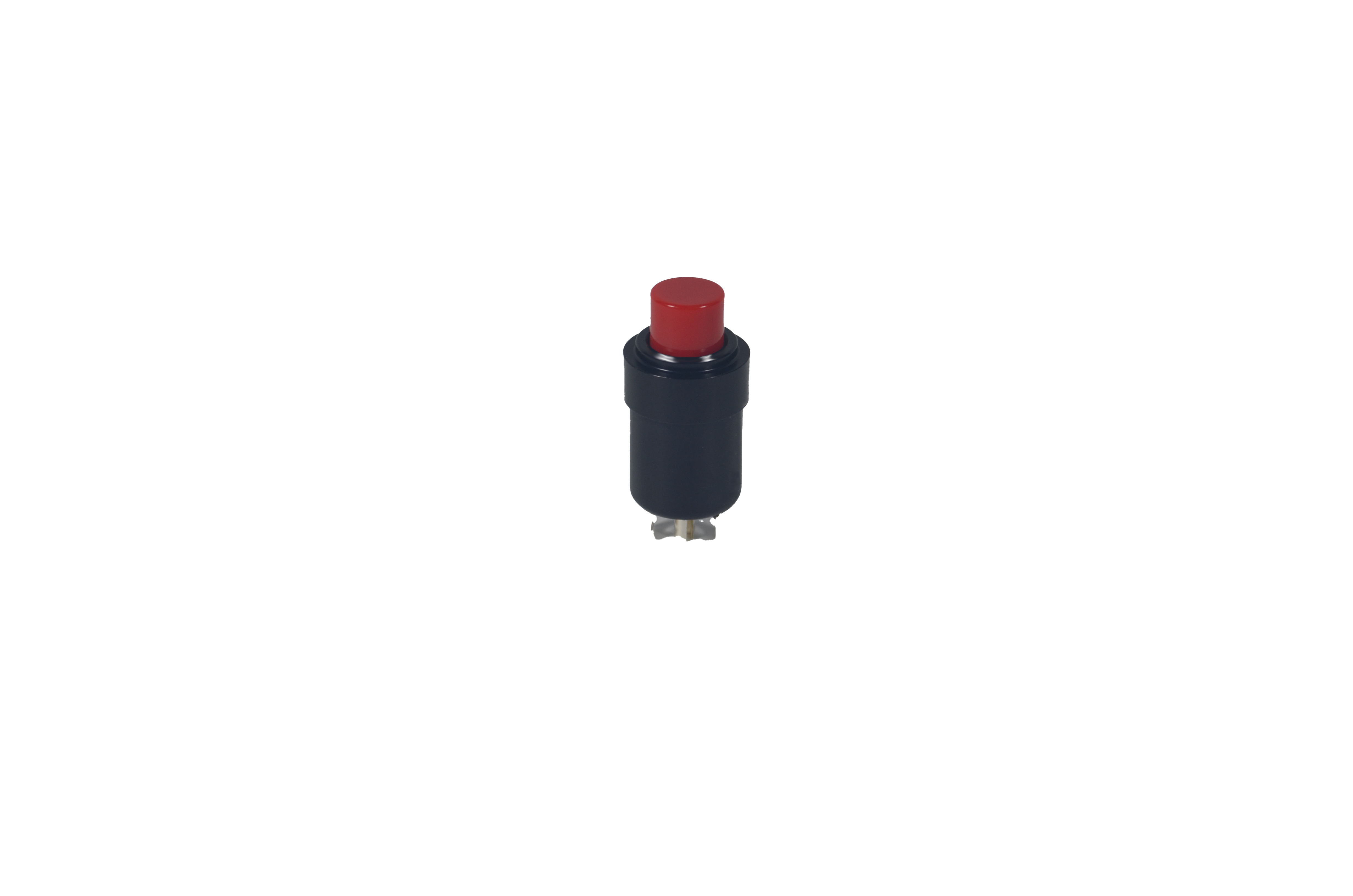

The Precision Snap-Action Pushbutton Switch, part of the P1 series, SKU P1-12221, offers reliable performance in demanding environments. With a durable aluminum housing and IP2 rating for protection against dust and moisture, this switch is designed for longevity. The red button with a flat, round actuator provides easy operation, while the screw termination ensures secure connections. Featuring a high current rating of 10A and SPST-NC contact configuration, it is suitable for various applications. With a voltage rating of 115VAC and 28VDC, this switch is versatile. Operating smoothly between -55°C to 85°C, it is ideal for both indoor and outdoor use. The P112221 is a dependable choice for industrial and commercial settings where precision and durability are paramount.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
