P1-12412

OTTP1_12412
Heilind Number:OTTP1-12412
Manufacturer:OTTO Controls
Manufacturer Number:P1-12412
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

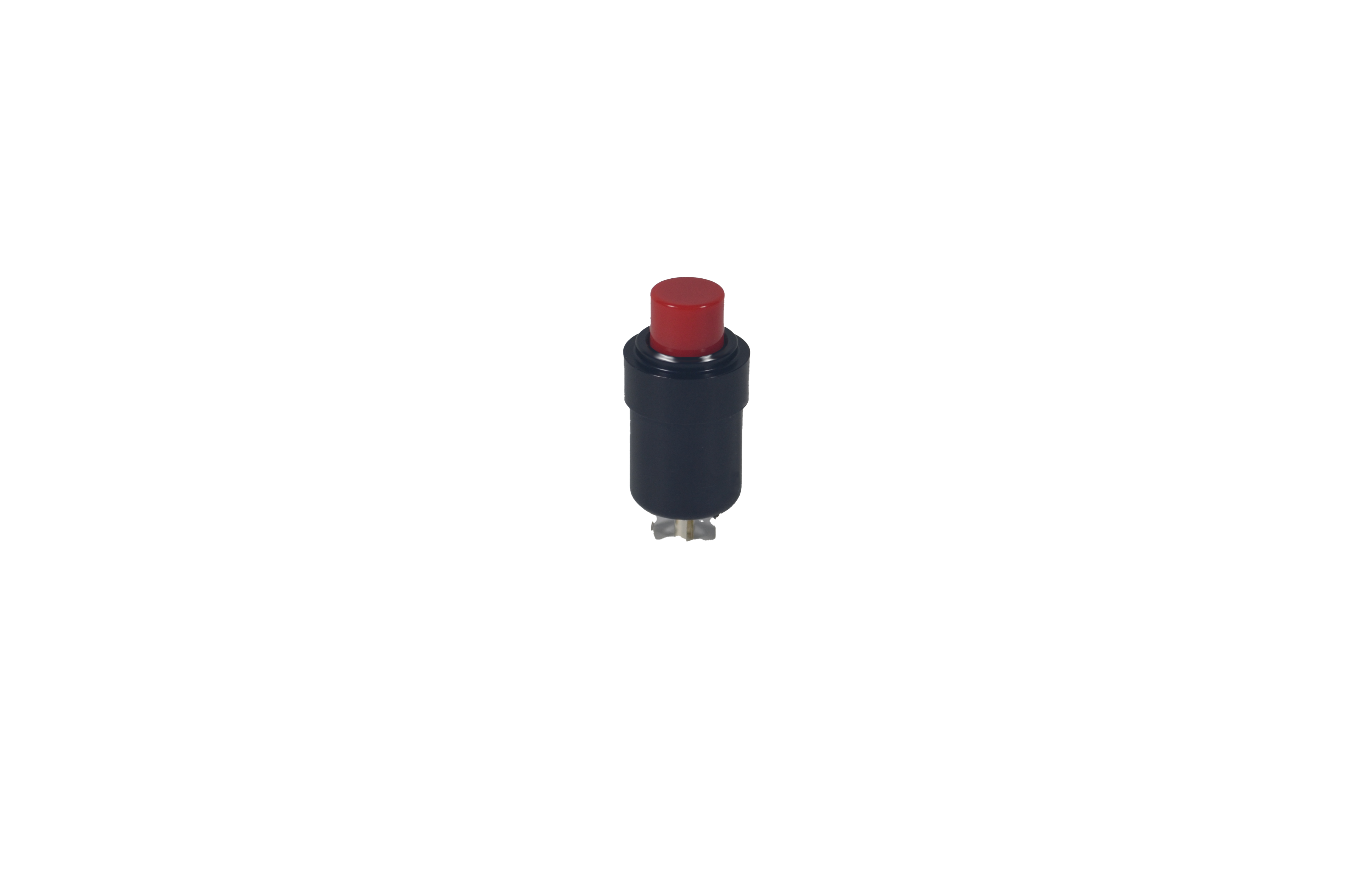

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-12412
Series:P1
Cap Color:Black
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO 3 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-12412

Detailed Description

Introducing the P1 Series Precision Snap-Action Pushbutton Switch ( P1-12412), a durable and reliable component for your electronic systems. With a sleek black design and panel mount installation, this switch is both functional and visually appealing. Featuring a flat round button actuator made of thermoplastic, it offers a comfortable and responsive user experience. The SPST-NO 3 Terminal contact configuration ensures efficient operation, with a 10A current rating and 115VAC/28VDC voltage ratings making it suitable for a variety of applications. Crafted with high-quality materials including aluminum housing and brass contacts with silver plating, this switch guarantees longevity even in harsh environments. With an IP2 rating and sealed construction, it offers protection against dust and moisture ingress. Whether for industrial machinery, automotive systems, or consumer electronics, the P1 Series Pushbutton Switch excels in performance, durability, and precision. Upgrade your control panels with this essential component.
