P1-12624

OTTP1_12624
Heilind Number:OTTP1-12624
Manufacturer:OTTO Controls
Manufacturer Number:P1-12624
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

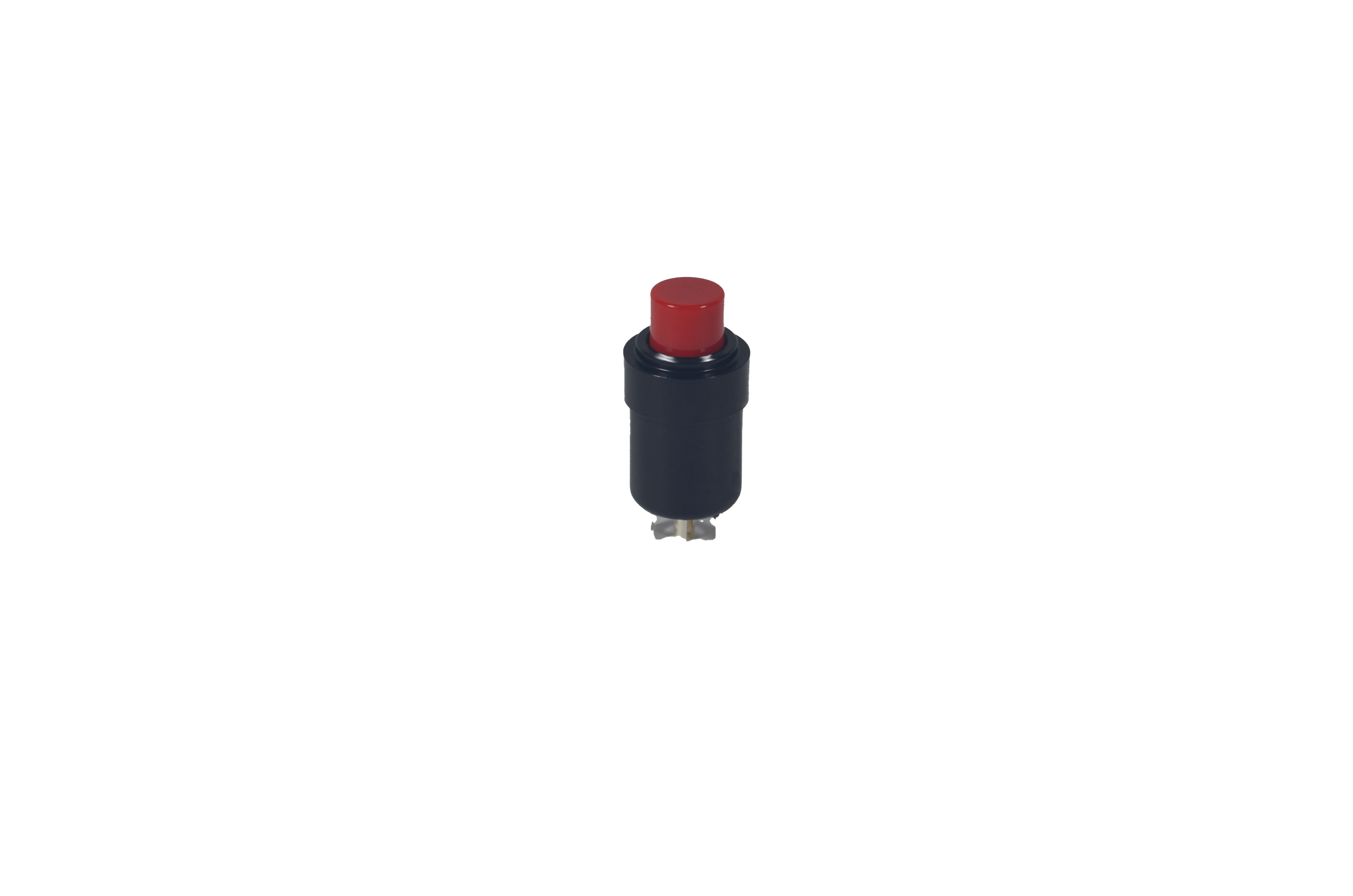

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-12624
Series:P1
Cap Color:Yellow
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-12624

Detailed Description

The Precision Snap-Action Pushbutton Switch, SKU P1-12624, is a high-performance component designed for demanding applications. Part of the P1 series, this switch features a durable construction with a black aluminum housing and a yellow flat button actuator. With an IP rating of Symbol 2, it offers reliable protection against dust and moisture ingress. The switch is sealed for added durability, rated for 25,000 cycles of operation. Its SPDT contact configuration, with silver-plated brass contacts, ensures efficient and low-resistance switching. Suitable for both AC and DC applications, it has a voltage rating of 115VAC and 28VDC. The switch is panel-mounted, with screw terminations, making installation easy and secure. Operating in a wide temperature range from -55°C to 85°C, it is suitable for use in various environments. With a current rating of 10A and an ON-(ON) switch function, it provides precise and reliable performance. Perfect for industrial and commercial use, the Precision Snap-Action Pushbutton Switch guarantees quality and longevity in every operation.
