| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P1-22112 |
| Series: | P1 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | Symbol 2 |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP1-22112 |
P1-22112
Specifications
Detailed Description

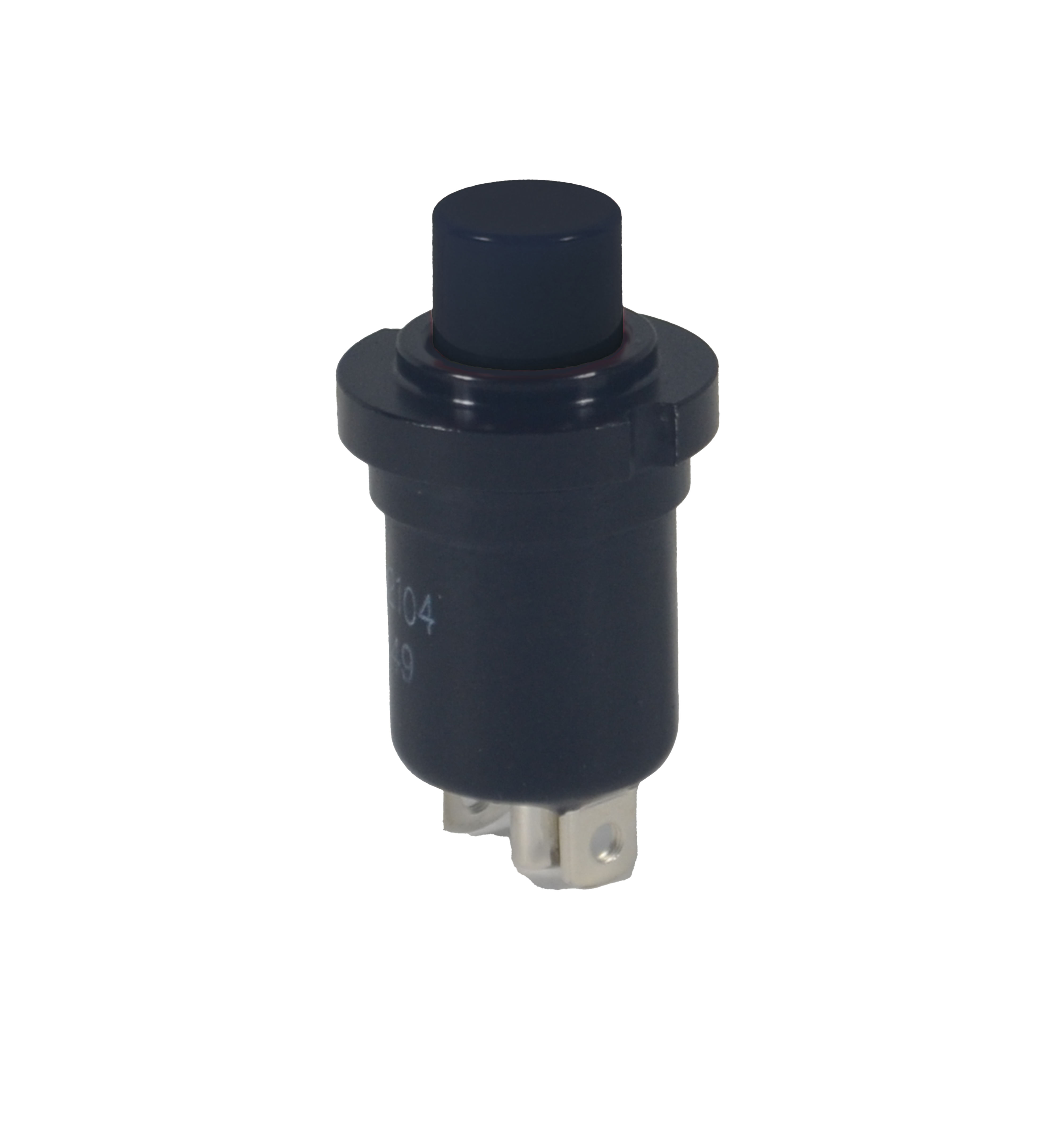

The P1-22112 Precision Snap-Action Pushbutton Switch, part of the P1 series, boasts a sleek design with a black aluminum case and black cap, perfect for panel mounting. This sealed switch, with an IP rating of Symbol 2, ensures reliable performance in various environments. Featuring a durable thermoplastic actuator and silver contact plating, it offers a high durability rating of 25,000 cycles. With a contact configuration of SPST-NO and a current rating of 10A, it guarantees efficient operation. The switch's switch function is Off-(On), making it ideal for momentary contact applications. Rated for 28VDC and 115VAC, with a wide operating temperature range from -55°C to 85°C, this pushbutton switch is suitable for a range of industrial and commercial uses.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
