P1-22121

OTTP1_22121
Heilind Number:OTTP1-22121
Manufacturer:OTTO Controls
Manufacturer Number:P1-22121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

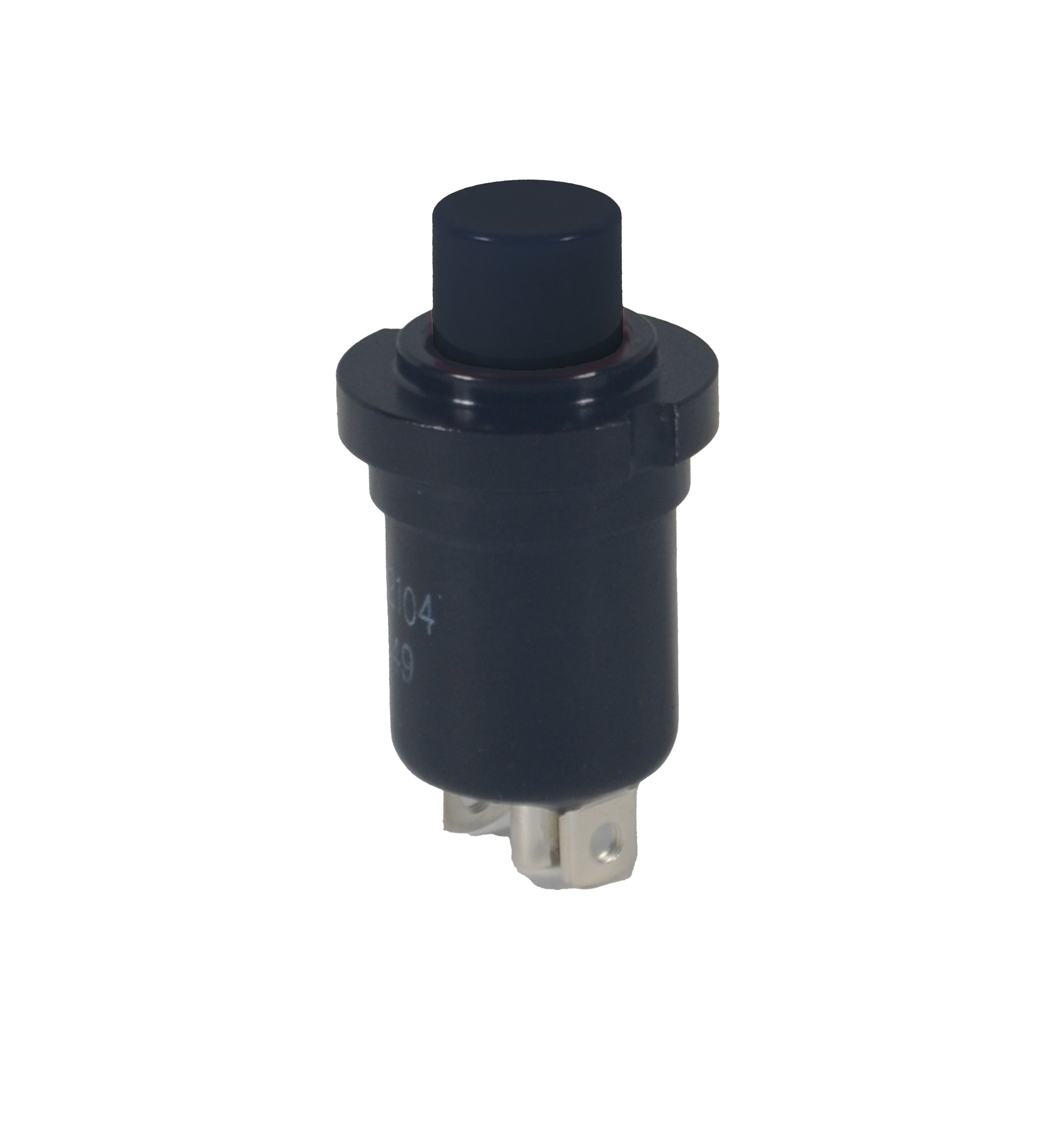

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-22121
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Red
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-22121

Detailed Description

Introducing the P1-22121 Precision Snap-Action Pushbutton Switch from our P1 series, designed for seamless functionality in demanding environments. Featuring a vibrant Red cap and a durable Black aluminum case, this switch is both visually striking and robust. With an IP rating of Symbol 2, it offers reliable protection against dust and moisture ingress. The Button (Flat) actuator, crafted from high-quality Thermoplastic, ensures a comfortable user experience. Operating at a maximum of 28 VDC and 115 VAC, with a current rating of 10 A, it guarantees efficient performance. The SPST-NO contact configuration and Off-(On) switch function make it ideal for various applications. With a durability rating of 25,000 cycles and a wide operating temperature range from -55°C to 85°C, this sealed pushbutton switch is a dependable choice for industrial use. Trust in the P1-22121 for precision control and enhanced reliability in your projects.
