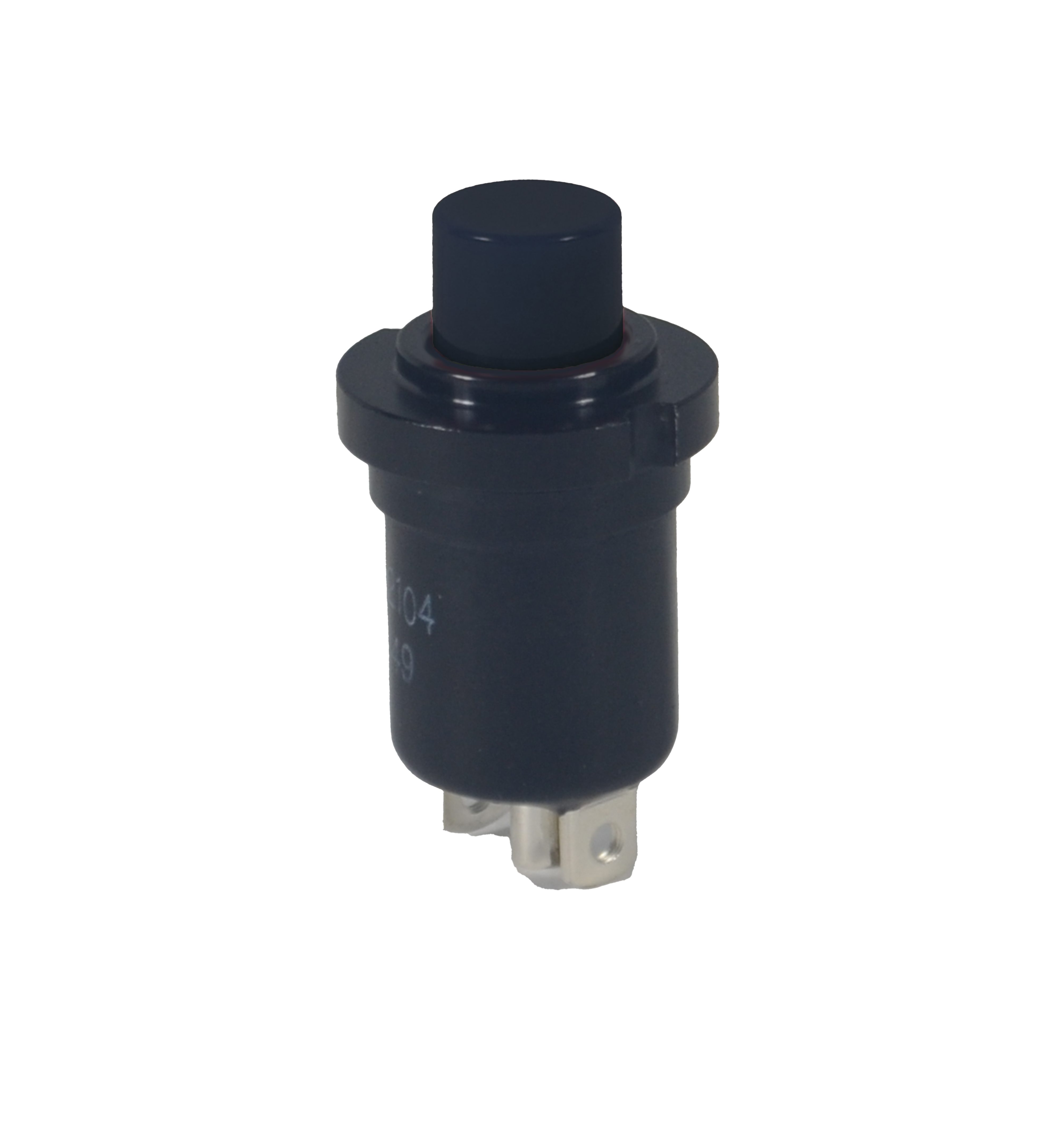

P1-22221

Heilind Number:OTTP1-22221
Manufacturer:OTTO Controls
Manufacturer Number:P1-22221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-22221
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Red
Actuator Length:.25 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-22221

Detailed Description

The P1-22221 Push Button Switch, part of the P1 series, boasts a striking red cap and durable aluminum housing in sleek black. With an IP rating of 2 for moderate dust and moisture protection, this switch is ideal for various panel mount applications. Featuring a flat round button actuator and non-illuminated design, it offers a reliable 10A current rating with silver contact plating and a brass contact material for optimal conductivity. Operating efficiently in temperatures ranging from -55°C to 85°C, it's perfect for both indoor and outdoor use. The SPST-NC contact configuration ensures a secure on-(off) function, while the screw termination type simplifies installation. With a lifespan of 25,000 cycles, this sealed precision snap-action switch guarantees long-lasting performance in demanding environments. Suitable for high-reliability applications, it's a must-have in the realm of switches.
