| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P1-22422 |
| Series: | P1 |
| Cap Color: | Black |
| IP Rating: | Symbol 2 |
| Case Color: | Black |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flat) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO 3 Terminal |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Voltage Rating (AC): | 115 VAC |
| SKU: | OTTP1-22422 |

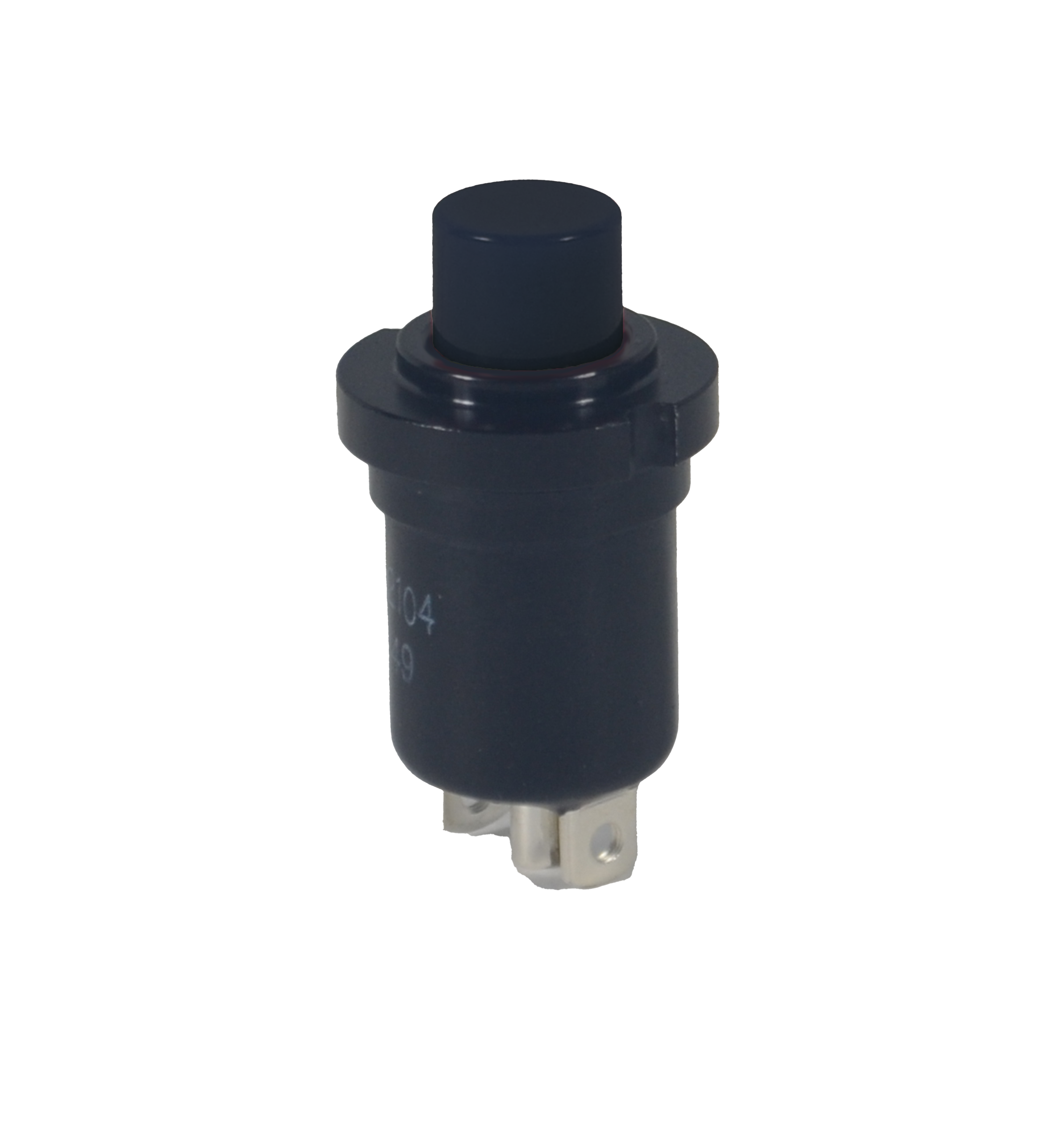

P1-22422
Specifications
Detailed Description
Introducing the Precision Snap-Action Pushbutton Switch, a durable and high-performance component essential for various electronic applications. Featuring a sleek black design with a flat round button actuator, this switch ensures easy and reliable operation. With a current rating of 10A and a contact configuration of SPST-NO 3 Terminal, it guarantees efficient power control. Crafted with ROHS-compliant materials and sealed for protection, it offers peace of mind in terms of safety and longevity. Suitable for panel mounting with screw termination, its versatility is unmatched. Whether in industrial machinery or consumer electronics, this switch, part of the P1 series, is the epitome of quality and functionality.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
