P1-31311

OTTP1_31311
Heilind Number:OTTP1-31311
Manufacturer:OTTO Controls
Manufacturer Number:P1-31311
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

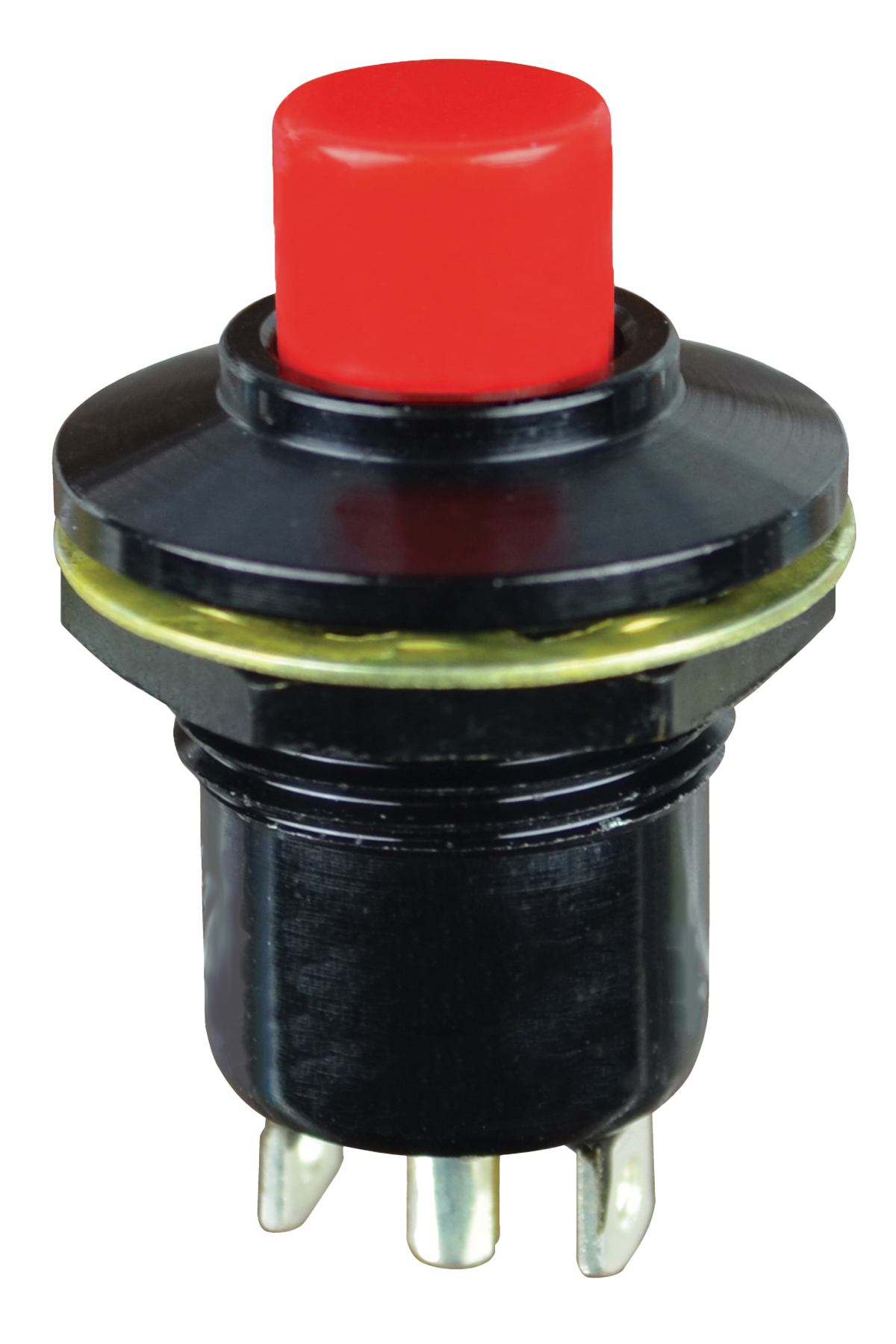

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-31311
Series:P1
Cap Color:Red
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NC 3 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-31311

Detailed Description

Introducing the Precision Snap-Action Pushbutton Switch, SKU P1-31311 from our P1 series. Designed for reliability in challenging environments, this switch features a red button cap and a durable black aluminum housing. With an IP rating of Symbol 2, it offers protection against dust and liquids. The SPST-NC 3 terminal configuration, along with a 10A current rating, ensures efficient performance. Operating from -55°C to 85°C, it suits a wide range of applications. The flat round button actuator, made of thermoplastic, guarantees smooth operation. Ideal for panel mounting, this sealed switch with solder termination is perfect for industrial use. With a durability rating of 25,000 cycles, it promises long-lasting functionality. Trust in the quality of our Precision Snap-Action Pushbutton Switch for your switching needs.
