P1-31411

OTTP1_31411
Heilind Number:OTTP1-31411
Manufacturer:OTTO Controls
Manufacturer Number:P1-31411
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

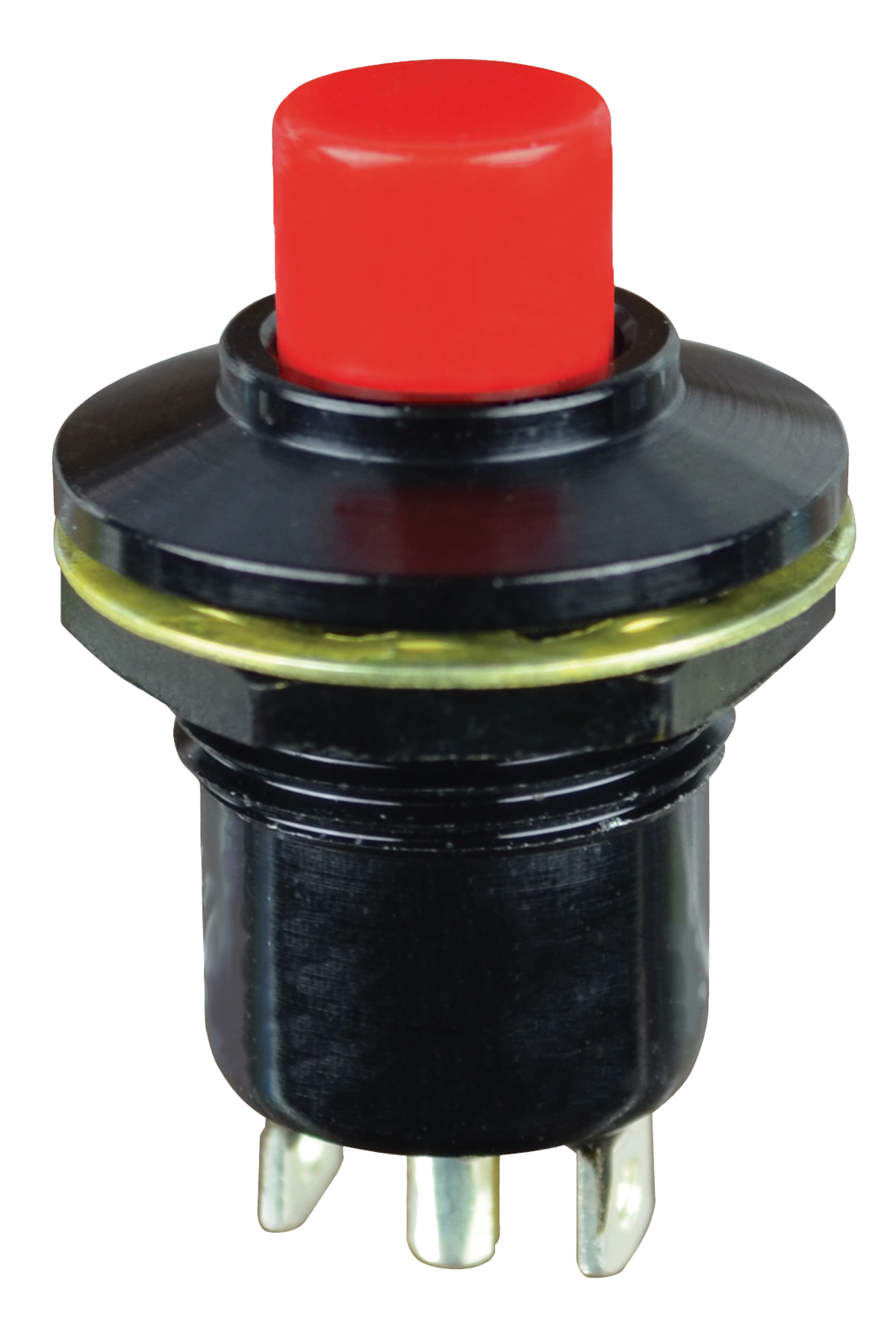

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-31411
Series:P1
Cap Color:Red
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO 3 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-31411

Detailed Description

The P1-31411 Precision Snap-Action Pushbutton Switch in Red with a Black case offers reliable performance in rugged environments. Featuring a durable aluminum housing and sealed construction, this switch is ideal for demanding applications. With a current rating of 10A, voltage ratings of 115VAC and 28VDC, and a contact configuration of SPST-NO 3 Terminal, it ensures efficient power control. The Off-(On) switch function and 25,000-cycle durability make it a long-lasting solution. Panel mount installation and solder termination provide easy integration. This P1 series switch, with an IP rating of Symbol 2, guarantees protection against dust and moisture. Suitable for a temperature range of -55°C to 85°C, it operates flawlessly in various conditions. Upgrade your control systems with the high-performance P131411 Pushbutton Switch.
