P1-32124

OTTP1_32124
Heilind Number:OTTP1-32124
Manufacturer:OTTO Controls
Manufacturer Number:P1-32124
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

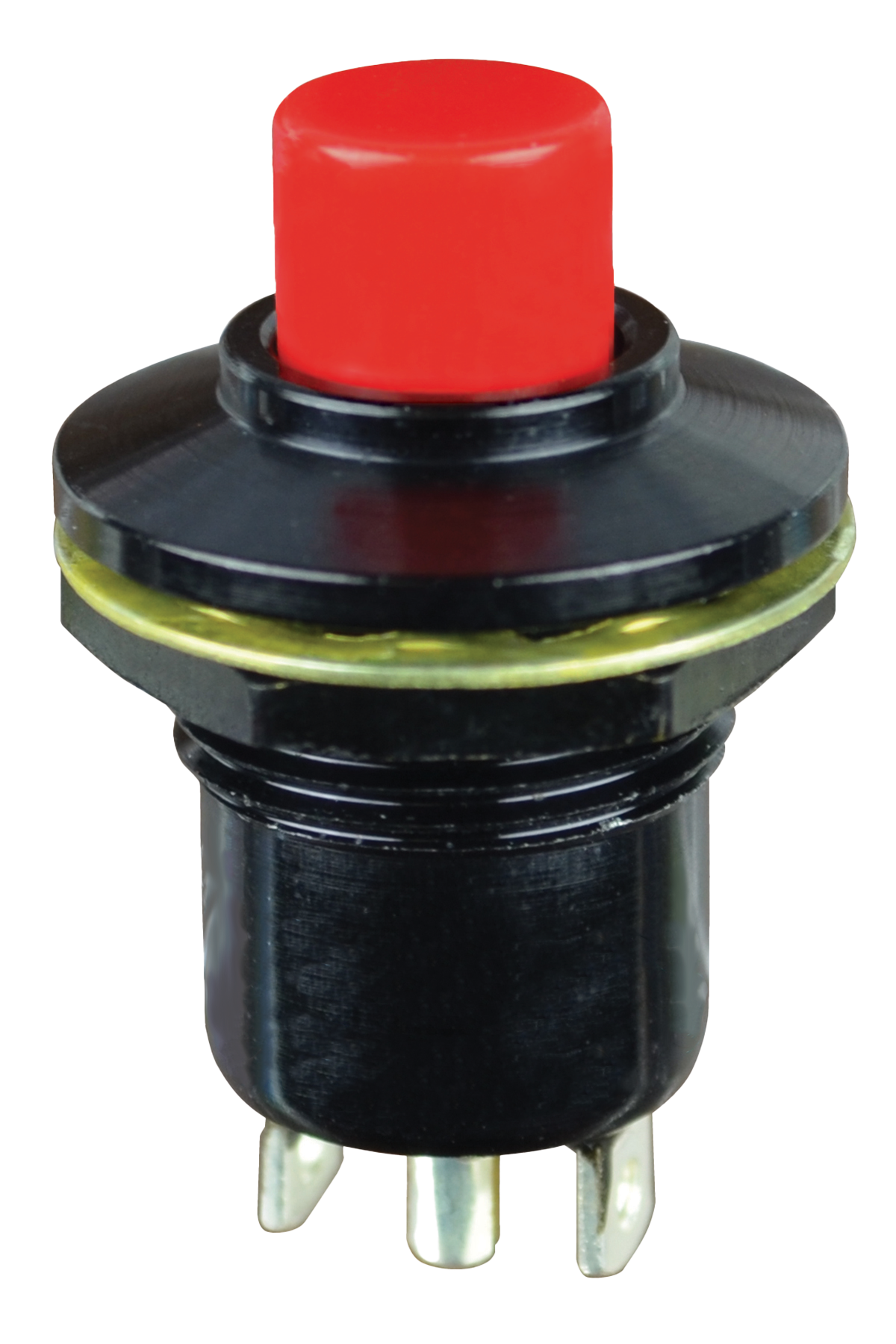

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-32124
Series:P1
Cap Color:Yellow
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-32124

Detailed Description

The Precision Snap-Action Pushbutton Switch in Yellow ( P1-32124) from the P1 series offers reliable performance in demanding environments. With an IP Rating of 2 and a durable construction featuring an Aluminum housing and Thermoplastic actuator, this sealed switch is ideal for panel mounting applications. The SPST-NO contact configuration, along with a current rating of 10A for AC and 28VDC for DC, ensures efficient and safe operation. Featuring a round, flat button design and a non-illuminated setup, it is suitable for a variety of industrial uses. With a contact material of Brass and a silver contact plating, this switch guarantees longevity, with a durability rating of 25,000 cycles. Operating seamlessly within a temperature range of -55°C to 85°C, it is built to withstand extreme conditions. Trust in the P1-32124 for precision control and durability in your projects.
