P1-32137

OTTP1_32137
Heilind Number:OTTP1-32137
Manufacturer:OTTO Controls
Manufacturer Number:P1-32137
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

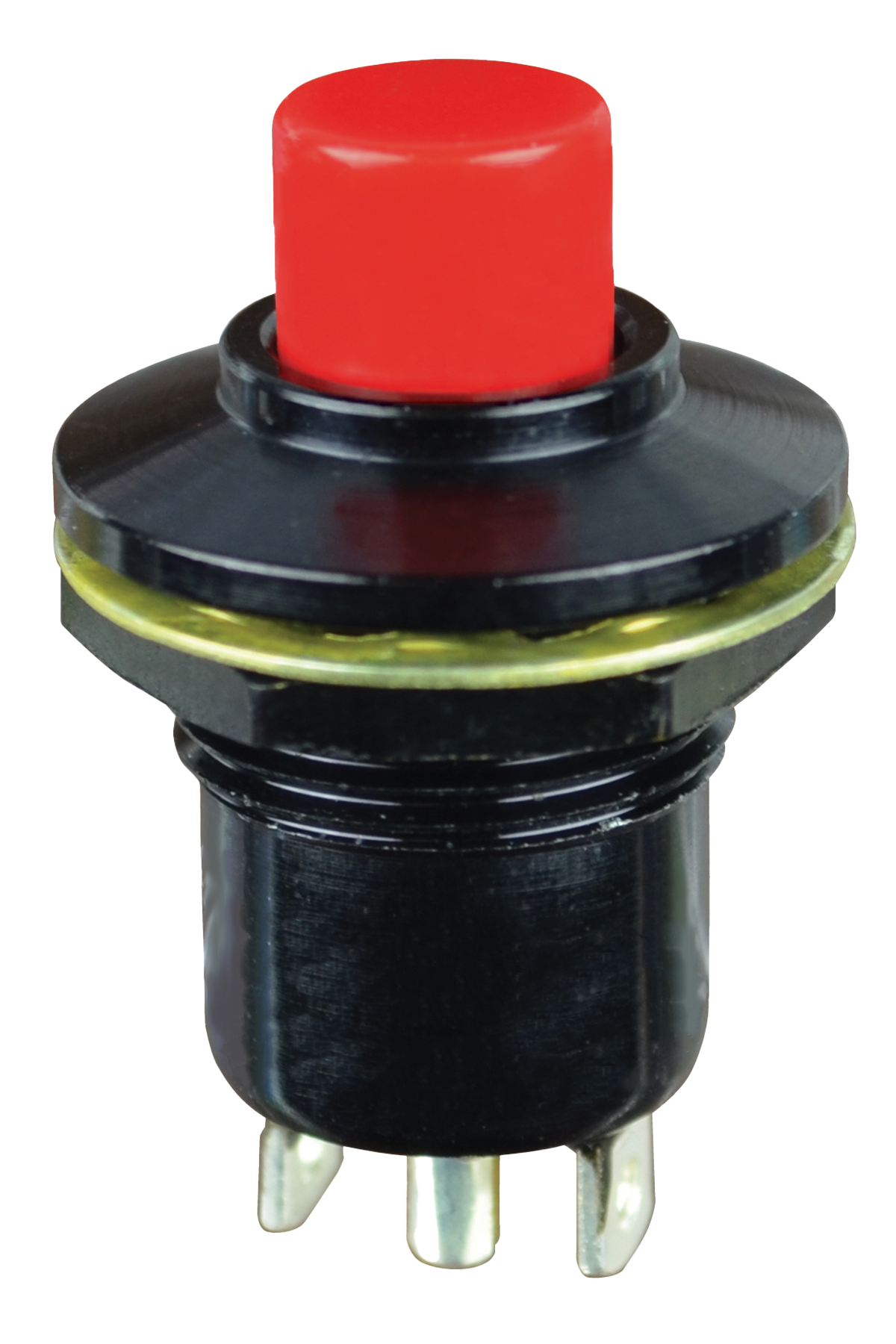

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-32137
Series:P1
Cap Color:Violet
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.38 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-32137

Detailed Description

Introducing the P1-32137, a high-performance pushbutton switch from the P1 series. Designed for precision, this switch features a flat button actuator with a round shape, ensuring comfortable operation. Its durable construction, with a housing made of aluminum and thermoplastic actuator material, guarantees reliability in even the harshest environments. With an IP Rating of Symbol 2 and sealed construction, it offers protection against dust and moisture ingress. The SPST-NO contact configuration, along with a 10A current rating, makes it suitable for a variety of applications. Panel mountable with screw terminations, installation is a breeze. Rated for 25,000 cycles, it ensures long-lasting performance. Whether in industrial machinery or consumer electronics, this pushbutton switch is the perfect choice for demanding environments.
