P1-32213

OTTP1_32213
Heilind Number:OTTP1-32213
Manufacturer:OTTO Controls
Manufacturer Number:P1-32213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

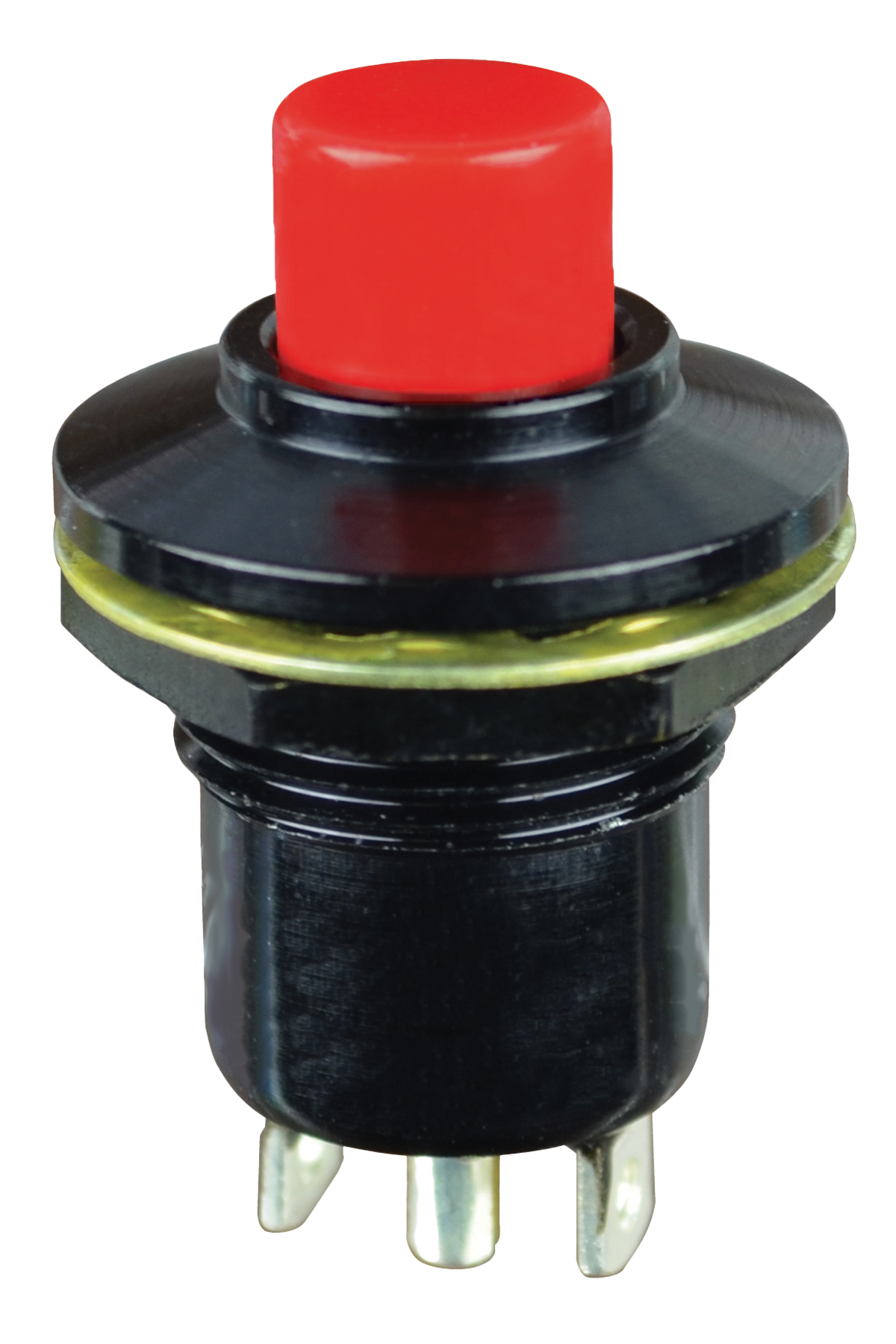

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-32213
Series:P1
Cap Color:Orange
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-32213

Detailed Description

Introducing the P1-32213, a high-performance pushbutton switch designed for precision control in demanding environments. Featuring a durable aluminum housing with a sleek black finish, this switch is not only rugged but also visually appealing. The orange flat button with a round actuator allows for easy and comfortable operation. With an IP Rating of symbol 2 and sealed construction, it guarantees reliable performance even in harsh conditions. The SPST-NC contact configuration and brass contact material ensure efficient and long-lasting operation. Suitable for panel mounting, this switch is perfect for industrial applications. Rated for 10A at 115VAC and 28VDC, it offers versatility in voltage requirements. With a durability rating of 25,000 cycles, you can trust in its longevity. Whether in automotive, aerospace, or machinery, the P1-32213 is the ideal choice for precise and dependable switching.
