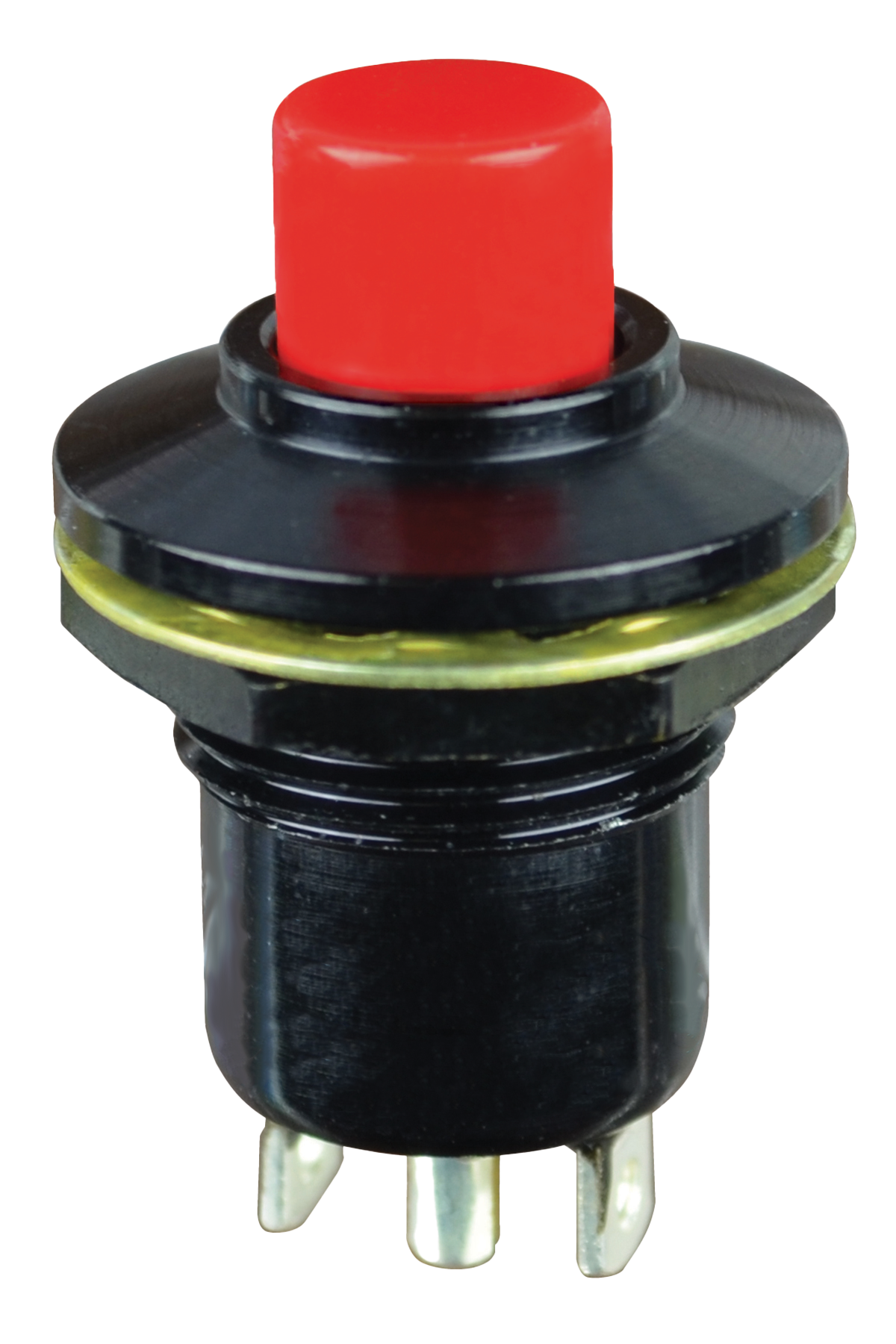

P1-33112

OTTP1_33112
Heilind Number:OTTP1-33112
Manufacturer:OTTO Controls
Manufacturer Number:P1-33112
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-33112
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
SKU:OTTP1-33112

Detailed Description

The P1-33112 P1 Series Precision Snap-Action Pushbutton Switch is a high-quality component designed for reliable performance in demanding applications. Featuring a sleek black aluminum case with a matching black button, this switch is both durable and visually appealing. With an IP Rating of 2 and sealed construction, it offers protection against dust and moisture ingress, ensuring longevity. The flat round button actuator, made of thermoplastic, provides a comfortable and responsive user experience. Gold-plated brass contacts guarantee low contact resistance and optimal conductivity. Operating at a low 10mA current and 5VDC voltage, this switch is efficient and energy-saving. Suitable for panel mounting, its SPST-NO contact configuration allows for Off-(On) functionality. With a temperature range from -55°C to 85°C and a durability rating of 50,000 cycles, it's built to withstand harsh environmental conditions. Ideal for use in aerospace, defense, and industrial settings, the P1-33112 is a reliable choice for your switching needs.
