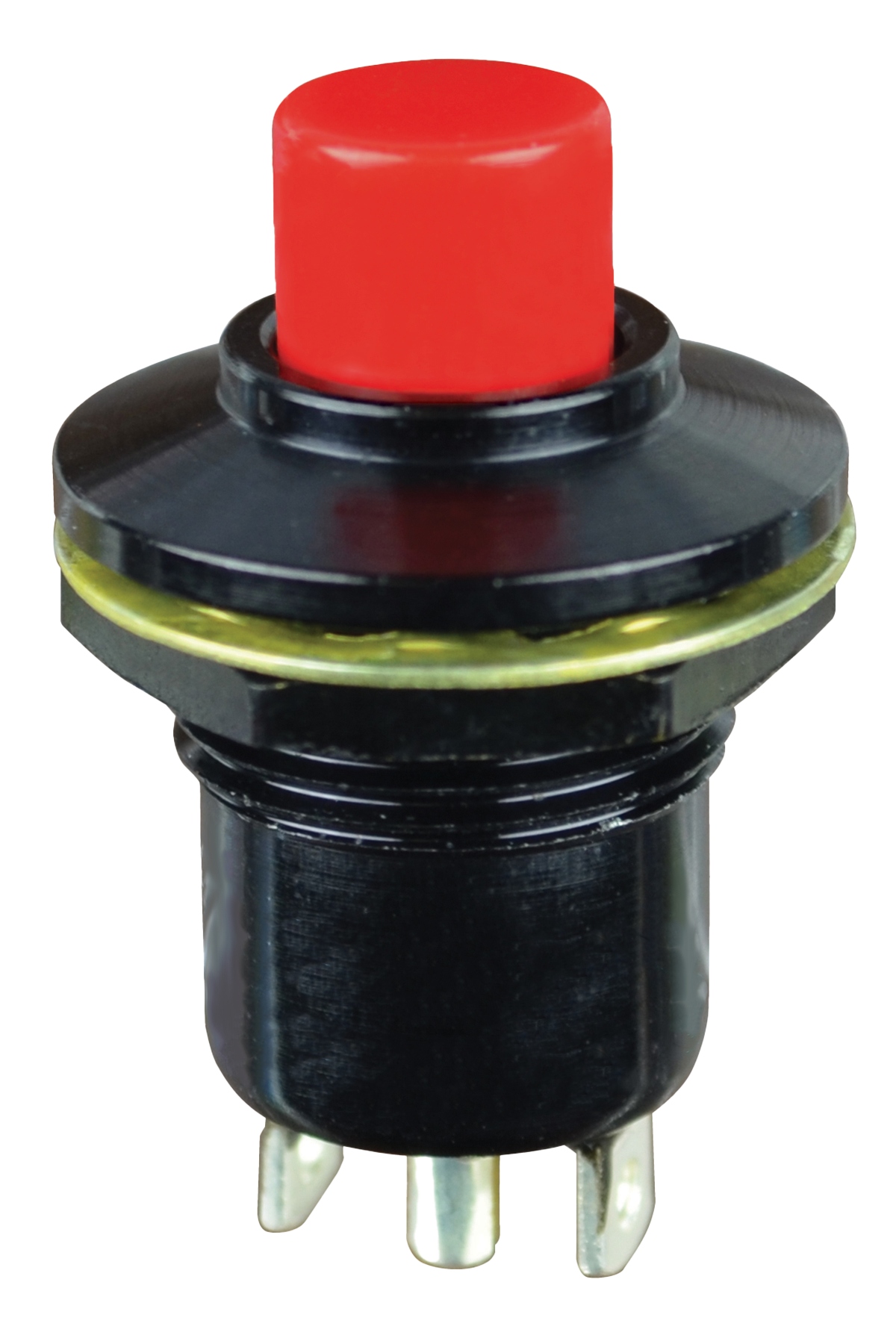

P1-33119

OTTP1_33119
Heilind Number:OTTP1-33119
Manufacturer:OTTO Controls
Manufacturer Number:P1-33119
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-33119
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
SKU:OTTP1-33119

Detailed Description

The P1 Series Precision Snap-Action Pushbutton Switch ( P1-33119) is a reliable and durable component designed for high-performance applications. Featuring a flat round button actuator with a white cap and black aluminum housing, this switch offers a sleek and professional look. With an IP Rating of 2 and sealed construction, it ensures protection against dust and moisture, making it ideal for use in various environments. The SPST-NO contact configuration and gold-plated brass contacts guarantee excellent conductivity and longevity, with a durability rating of 50,000 cycles. Operating at 5VDC and 10mA, it delivers efficient performance while the Off-(On) switch function provides easy control. Suitable for panel mounting with solder termination, this switch is perfect for industrial, automotive, and aerospace applications where precision and reliability are essential. With a wide operating temperature range of -55°C to 85°C, it can withstand harsh conditions. Upgrade your systems with the P1 Series Pushbutton Switch for seamless and dependable operation.
