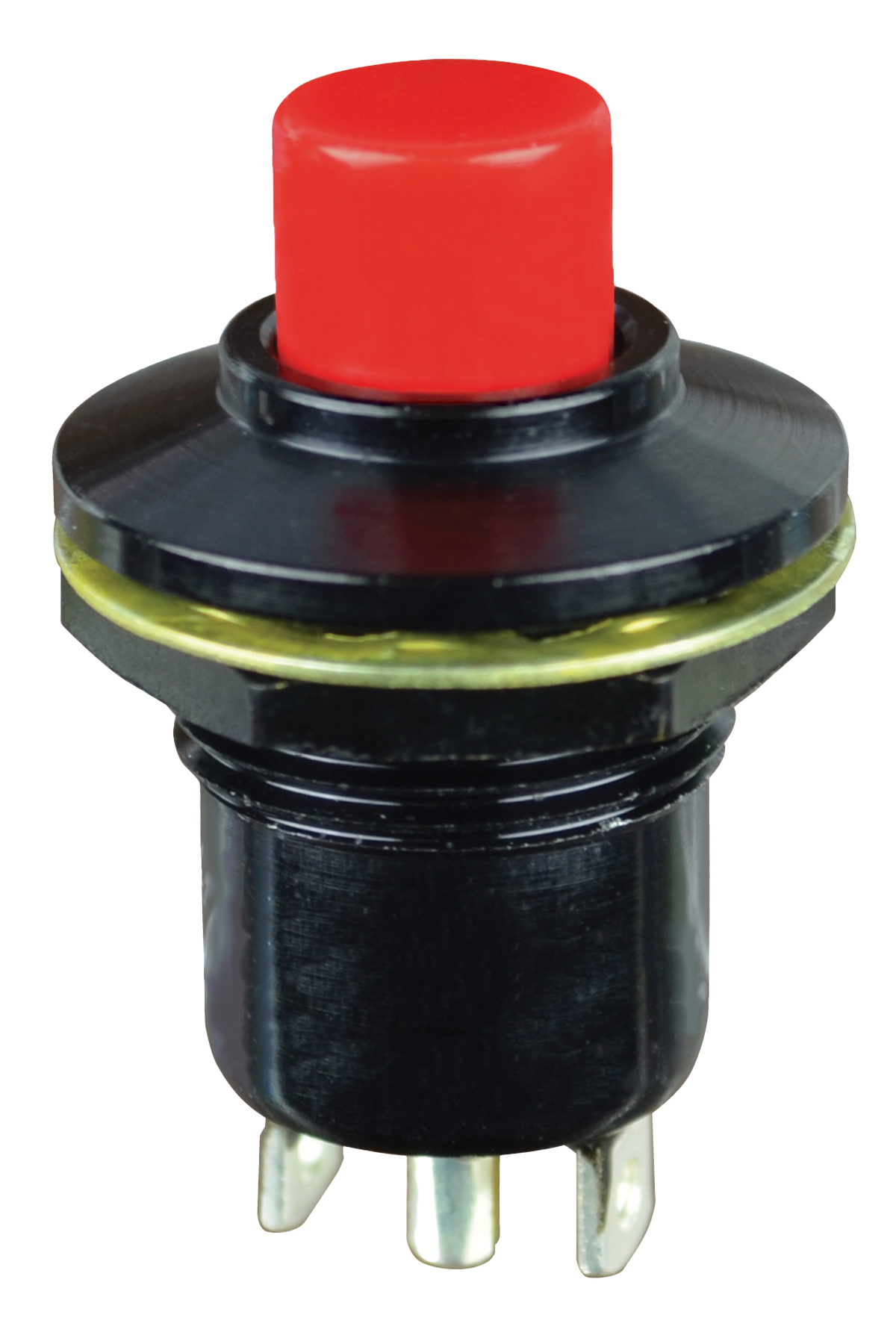

P1-33128

OTTP1_33128
Heilind Number:OTTP1-33128
Manufacturer:OTTO Controls
Manufacturer Number:P1-33128
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-33128
Series:P1
Cap Color:Gray
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 mA
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (DC):5 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-33128

Detailed Description

The P1-33128 Pushbutton Switch, part of the P1 series, is a high-performance component designed for precision and durability. Featuring a sleek gray cap and a robust black case, this switch is both visually appealing and rugged. With an IP rating of Symbol 2, it offers reliable protection against dust and moisture ingress. The flat button actuator, made of thermoplastic, provides a comfortable and responsive touch. Gold-plated brass contacts ensure optimal conductivity, while the aluminum housing guarantees long-term stability. Ideal for panel mounting, this switch is suitable for a wide range of applications. Operating at a maximum temperature of 85°C and a minimum of -55°C, it is built to withstand harsh environments. With a contact configuration of SPST-NO and a contact rating of 10mA at 5VDC, it delivers consistent performance. Boasting a durability rating of 50,000 cycles, it offers reliable operation over an extended lifespan. Whether used in industrial machinery, automotive systems, or consumer electronics, the P1-33128 is a dependable choice for demanding environments.
