P1-52122

OTTP1_52122
Heilind Number:OTTP1-52122
Manufacturer:OTTO Controls
Manufacturer Number:P1-52122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

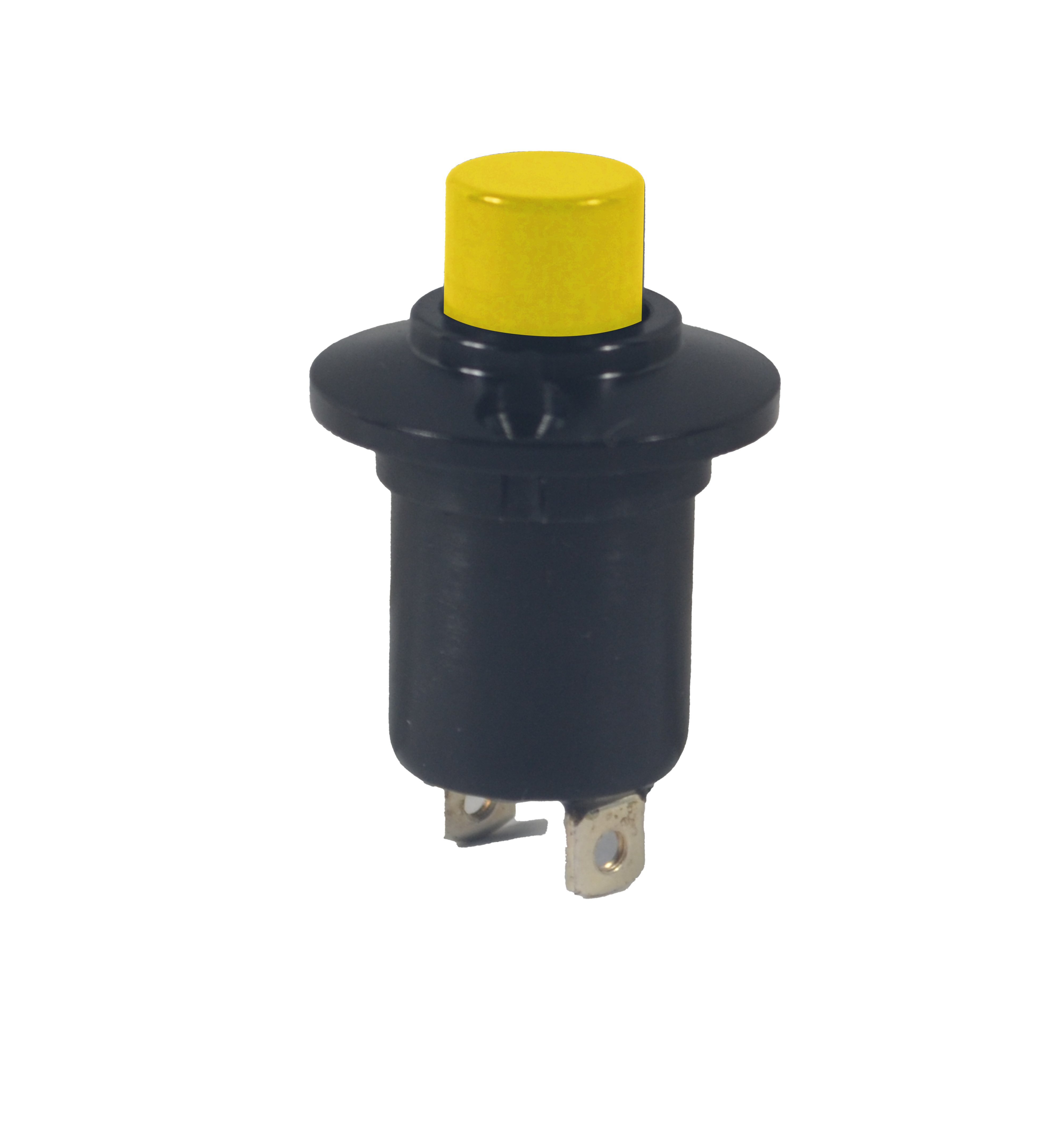

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-52122
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Black
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-52122

Detailed Description

The P1-52122 Precision Snap-Action Pushbutton Switch, part of the P1 series, is a high-performance component designed for reliable operation in demanding environments. Featuring a sleek black aluminum case with a matching flat button actuator, this switch offers a seamless blend of durability and style. With an IP rating of Symbol 2, it provides moderate protection against dust and water ingress. The SPST-NO contact configuration, with silver-plated brass contacts, ensures efficient and long-lasting electrical connectivity. Suitable for both AC and DC applications, with voltage ratings of 115 VAC and 28 VDC, respectively, and a current rating of 10 A. The switch is panel mountable, with screw terminals for easy installation. Operating temperature ranges from -55°C to 85°C, making it ideal for use in a wide range of industrial and commercial settings. With a high durability rating of 25,000 cycles, this sealed pushbutton switch guarantees reliable performance over its long lifespan. It is the perfect choice for applications where precision and resilience are paramount.
