P1-62115

OTTP1_62115
Heilind Number:OTTP1-62115
Manufacturer:OTTO Controls
Manufacturer Number:P1-62115
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

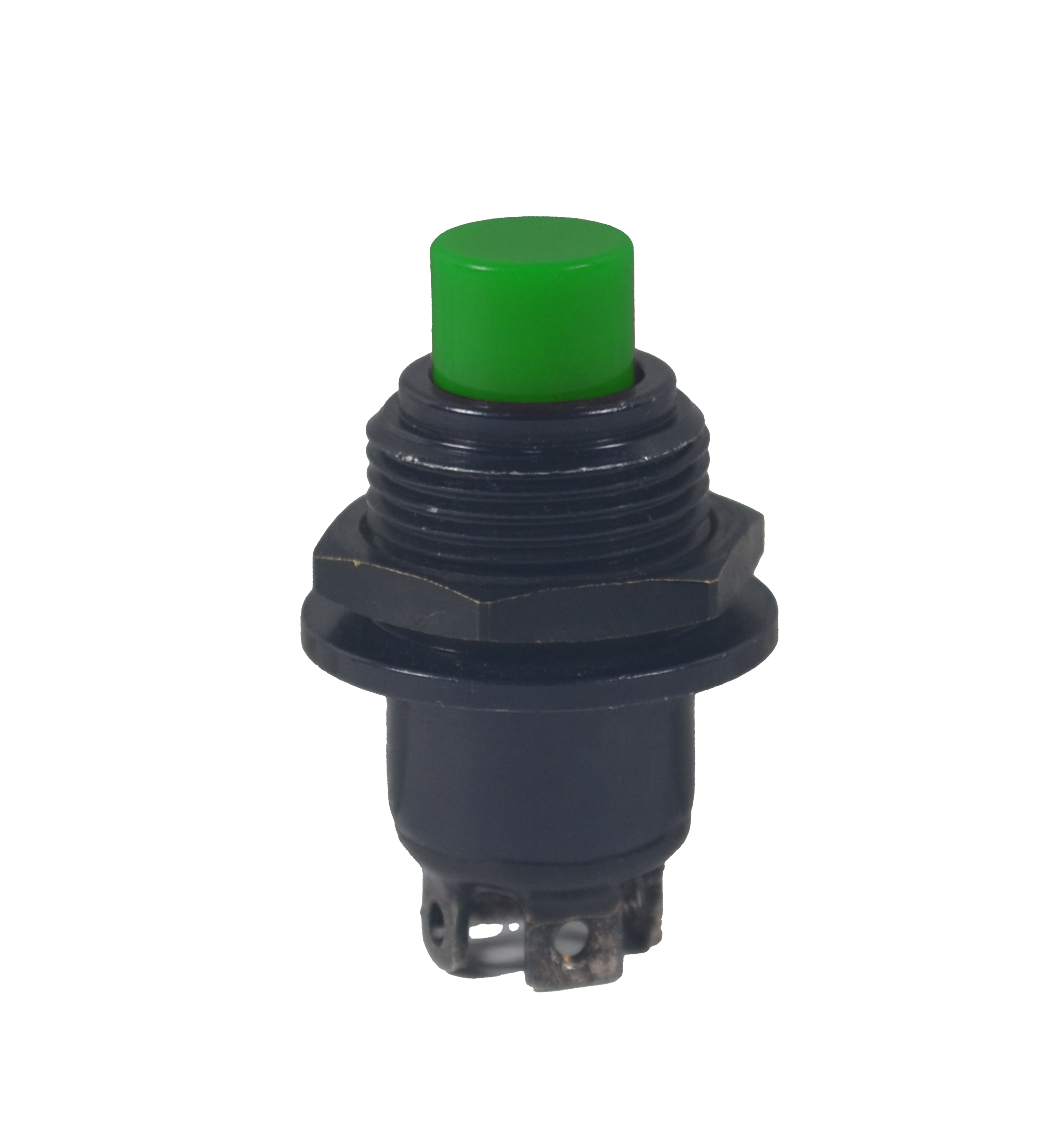

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-62115
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Green
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-62115

Detailed Description

The Precision Snap-Action Pushbutton Switch, SKU P1-62115 from the P1 series, is a reliable component for panel-mounted applications. Featuring a durable aluminum housing with a sleek black finish, this switch ensures longevity and performance in various environments. The flat green button, with a round shape, offers comfortable actuation, while the screw termination type allows for easy installation. With an IP rating of Symbol 2, it guarantees protection against dust and water ingress. Operating at 115 VAC and 28 VDC, with a current rating of 10 A, this switch is suitable for a wide range of electronic systems. Its SPST-NO contact configuration and Off-(On) switch function provide precise control. With a high durability rating of 25,000 cycles and a wide temperature range from -55°C to 85°C, this sealed pushbutton switch is ideal for industrial and commercial applications.
