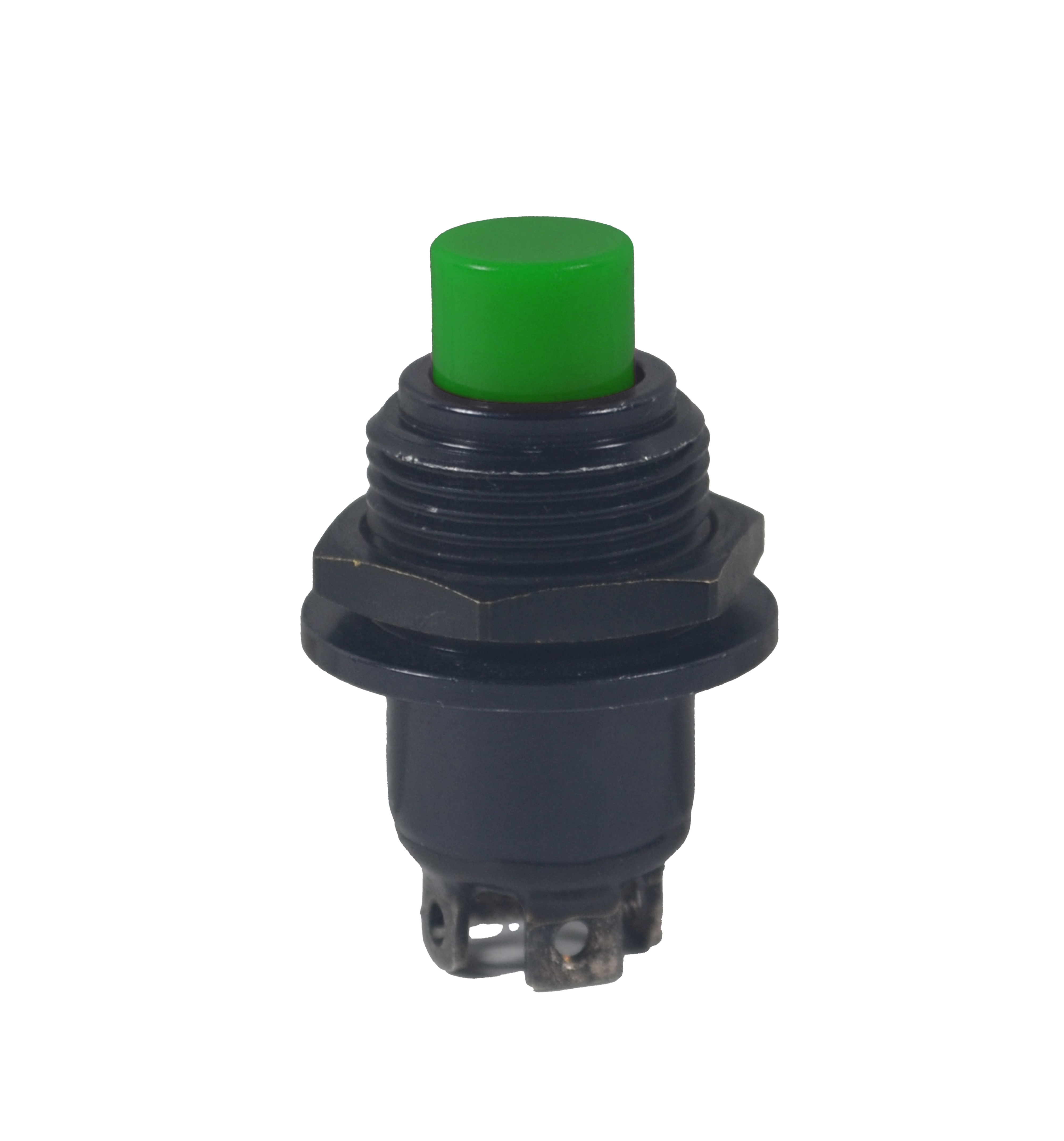

P1-62122

OTTP1_62122
Heilind Number:OTTP1-62122
Manufacturer:OTTO Controls
Manufacturer Number:P1-62122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-62122
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Black
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-62122

Detailed Description

Meet the P1-62122, a high-performance push button switch that combines reliability with precision. This RoHS compliant switch, part of the P1 series, features a sleek black design with a durable aluminum housing and a flat round button actuator. Designed for panel mount installation, it offers a non-illuminated interface with a robust contact configuration of SPST-NO, ensuring seamless operation. With a current rating of 10A and voltage ratings of 115VAC and 28VDC, this switch is suitable for a variety of applications. Its sealed construction, along with a contact material of brass and silver plating, guarantees longevity and efficient performance even in harsh environments. The P1-62122 is the perfect choice for demanding industrial and commercial settings, offering a lifespan of 25,000 cycles and operating temperatures ranging from -55°C to 85°C. Upgrade your control systems with this reliable and durable push button switch.
