P1-64621

OTTP1_64621
Heilind Number:OTTP1-64621
Manufacturer:OTTO Controls
Manufacturer Number:P1-64621
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

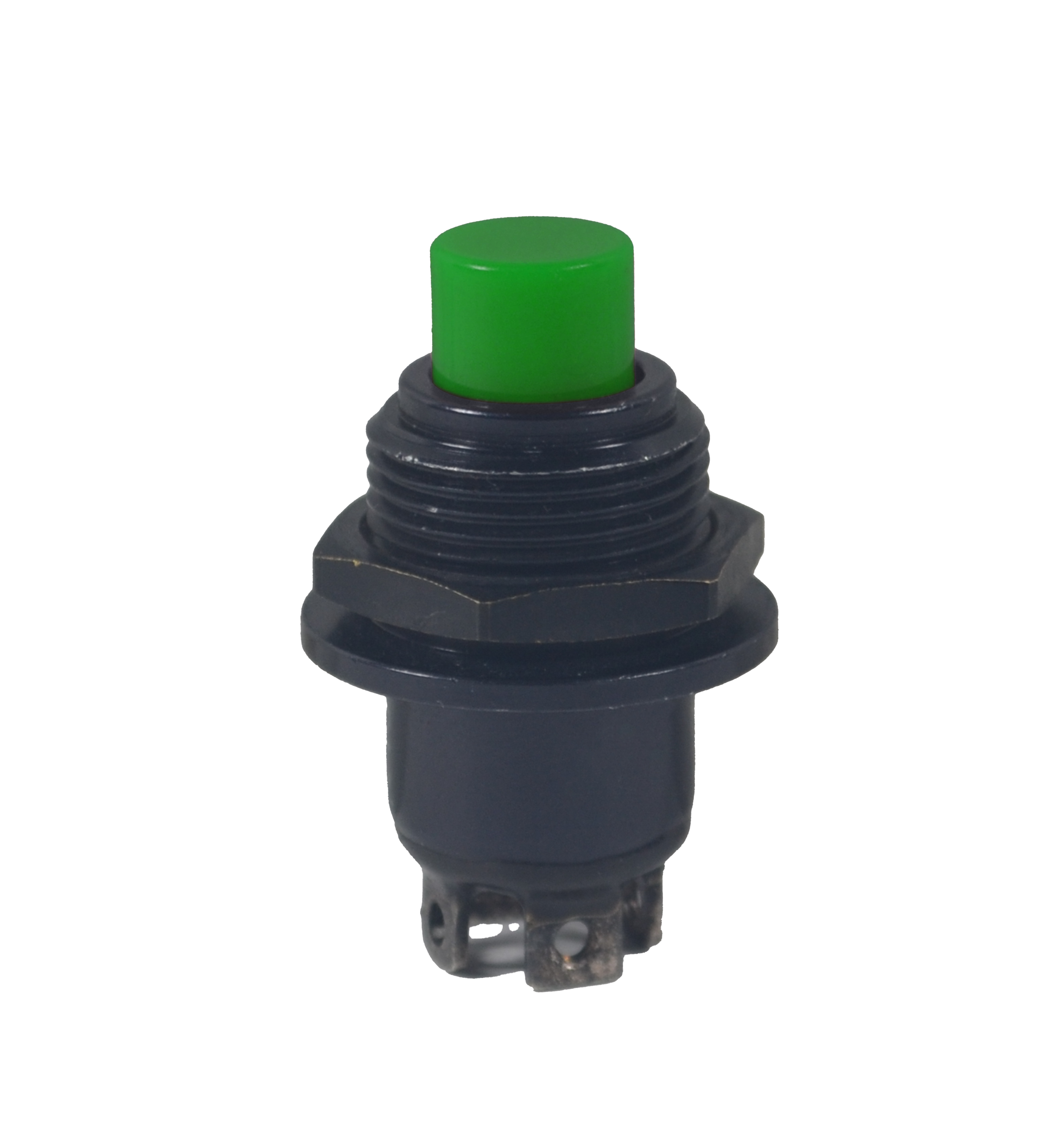

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-64621
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Red
Actuator Length:.25 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):30 mV
SKU:OTTP1-64621

Detailed Description

The P1-64621 Precision Snap-Action Pushbutton Switch, part of the P1 series, is a high-performance component designed for reliable operation in demanding environments. Boasting a durable construction with an aluminum housing and thermoplastic actuator, this switch ensures longevity even in harsh conditions. With a red button cap and black case, it offers a sleek aesthetic. Featuring a contact configuration of SPDT and contact plating of silver, it guarantees efficient electrical conductivity. The switch is panel mountable and sealed for added protection. With an IP Rating of Symbol 2, it provides ingress protection against dust and liquids. Offering a switch function of On-(On) and a voltage rating of 30mV DC, it is suitable for various applications. Its high durability rating of 25,000 cycles, along with an operating temperature range from -55°C to 85°C, further enhances its reliability. Perfect for industrial, aerospace, or automotive use, the P1-64621 is a versatile and dependable choice in the realm of push button switches.
