P1-64629

OTTP1_64629
Heilind Number:OTTP1-64629
Manufacturer:OTTO Controls
Manufacturer Number:P1-64629
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

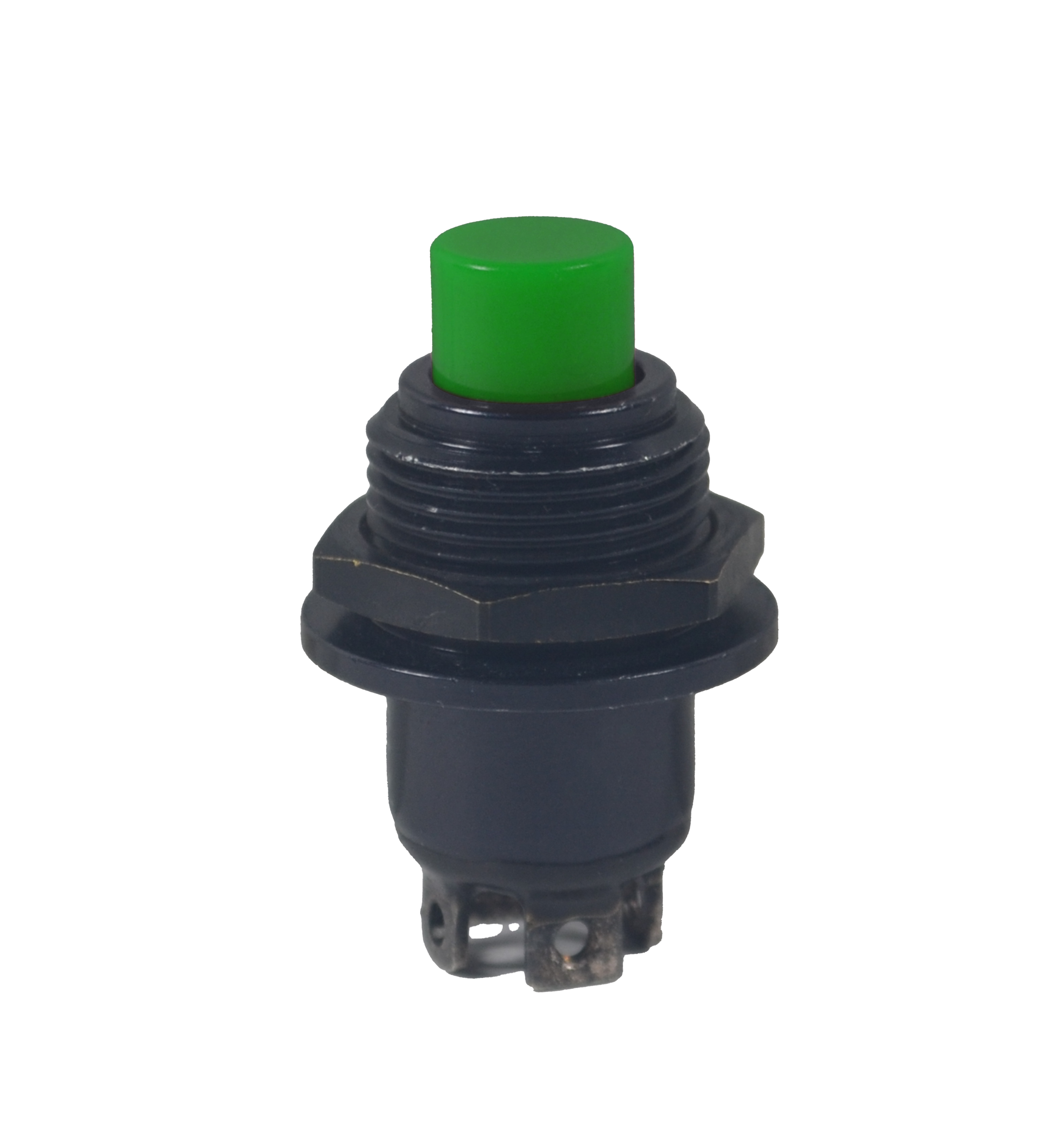

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-64629
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:White
Actuator Length:.25 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):30 mV
SKU:OTTP1-64629

Detailed Description

The P1-64629 Precision Snap-Action Pushbutton Switch from the P1 series is a high-quality component designed for reliable performance in demanding environments. Featuring a durable aluminum housing with a sleek black finish, this switch is panel-mounted and sealed for protection. Its white flat button actuator, made of thermoplastic, offers a comfortable and responsive interface. With an IP rating of Symbol 2 and a contact configuration of SPDT, it ensures efficient and secure connectivity. The switch functions on-(on) with a current rating of 10 mA and a voltage rating of 30 mV DC, making it suitable for various applications. Its contact material is brass with silver plating, guaranteeing longevity with a durability rating of 25,000 cycles. Operating between -55°C to 85°C, this pushbutton switch is ideal for use in industrial, automotive, and aerospace settings. Trust in the P164629 for precision control in critical systems.
