P1-71119

OTTP1_71119
Heilind Number:OTTP1-71119
Manufacturer:OTTO Controls
Manufacturer Number:P1-71119
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

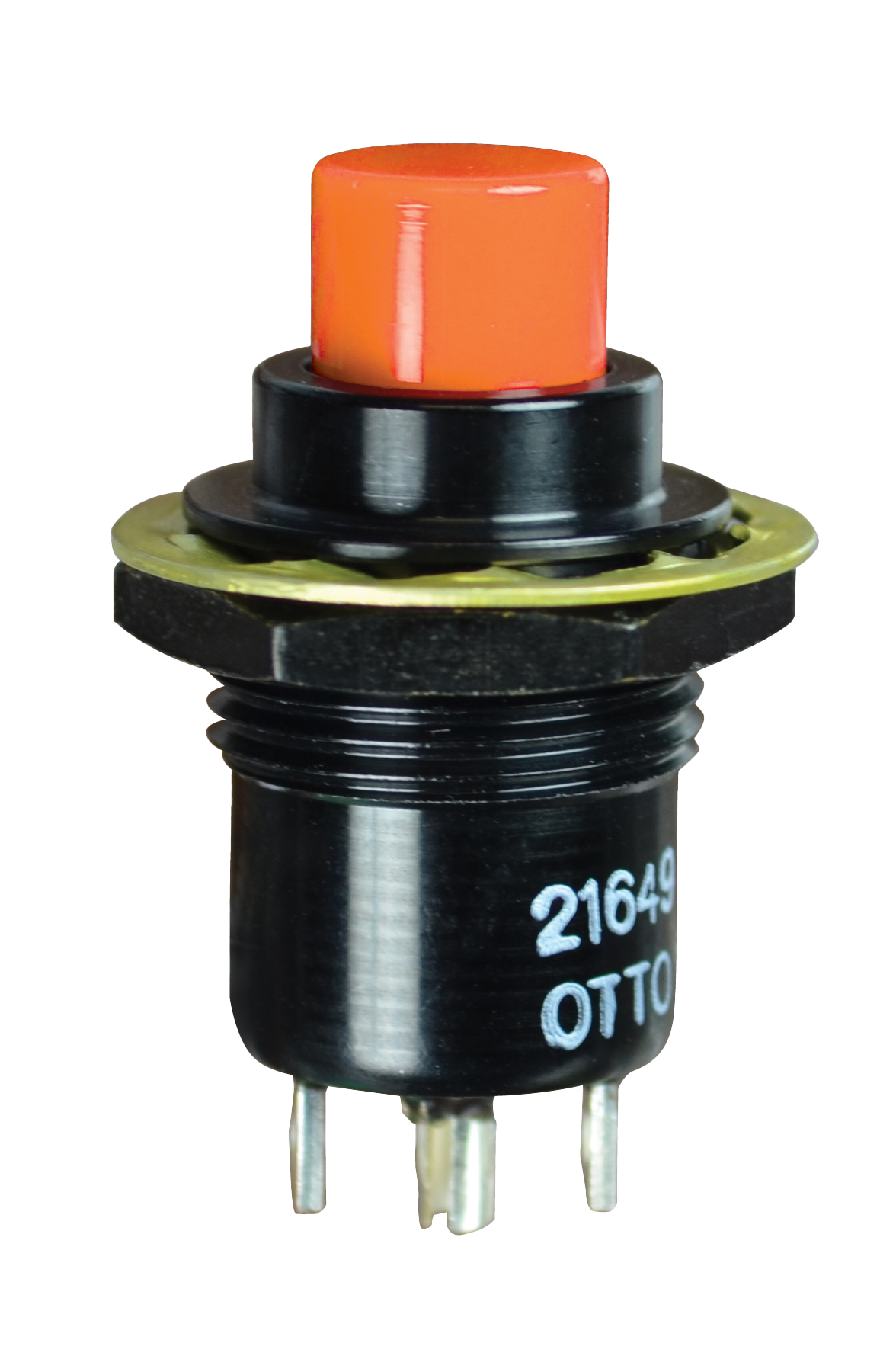

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-71119
Series:P1
Cap Color:White
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-71119

Detailed Description

Introducing the P1-71119, a durable and high-performance pushbutton switch designed for precision applications. Featuring a sleek white cap and a sturdy black aluminum case, this switch is not only visually appealing but also built to last. With an IP rating of Symbol 2, it offers reliable protection against dust and moisture, making it suitable for various environments. The flat button actuator with a round shape provides a comfortable and ergonomic user experience. With a current rating of 10A and contact plating in silver, this switch ensures efficient conductivity. Its sealed construction and solder termination type guarantee secure installation. Ideal for panel mounting, this switch is perfect for industrial and commercial use. Whether it's for machinery, control panels, or electronic equipment, the P1-71119 delivers exceptional performance.
