P1-72116

OTTP1_72116
Heilind Number:OTTP1-72116
Manufacturer:OTTO Controls
Manufacturer Number:P1-72116
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

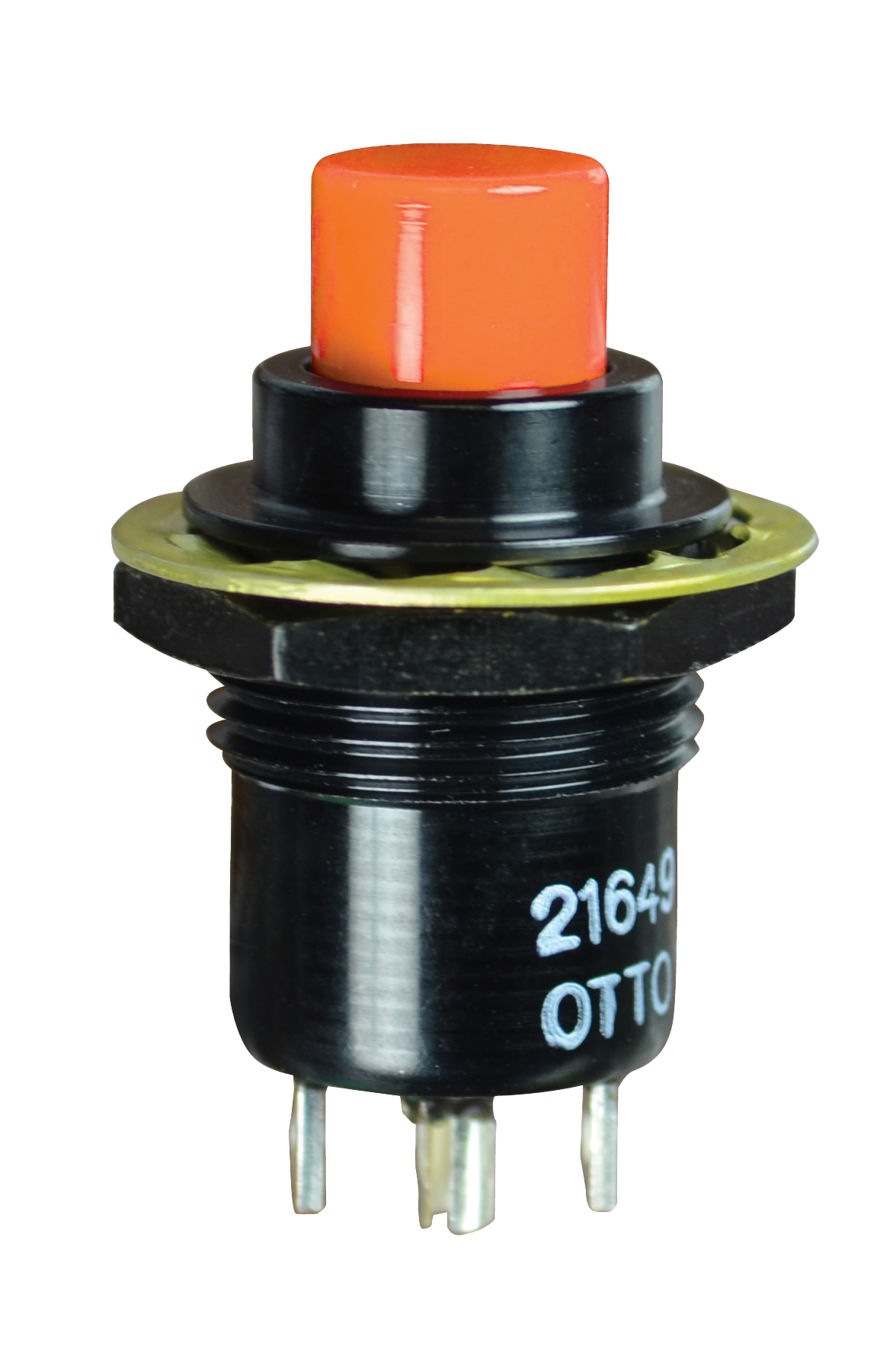

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-72116
Series:P1
Cap Color:Blue
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-72116

Detailed Description

The P1-72116 Precision Snap-Action Pushbutton Switch, part of the P1 series, boasts a durable design for reliable performance in demanding environments. Featuring a blue button cap and black housing, it offers a sleek aesthetic. With an IP rating of Symbol 2, this sealed switch ensures protection against dust and water ingress. The flat round button actuator, made of thermoplastic, guarantees comfortable operation. Operating at a rated current of 10A and voltages up to 115VAC/28VDC, it suits a variety of applications. The SPST-NO contact configuration, with silver-plated brass contacts, delivers high conductivity. With a 25,000-cycle durability rating and wide temperature range of -55°C to 85°C, this switch is ideal for industrial use. Perfect for panel mounting with screw termination, it offers easy installation. Trusted for its quality and performance, the P172116 is a reliable choice in the realm of push button switches.
