P1-72222

OTTP1_72222
Heilind Number:OTTP1-72222
Manufacturer:OTTO Controls
Manufacturer Number:P1-72222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

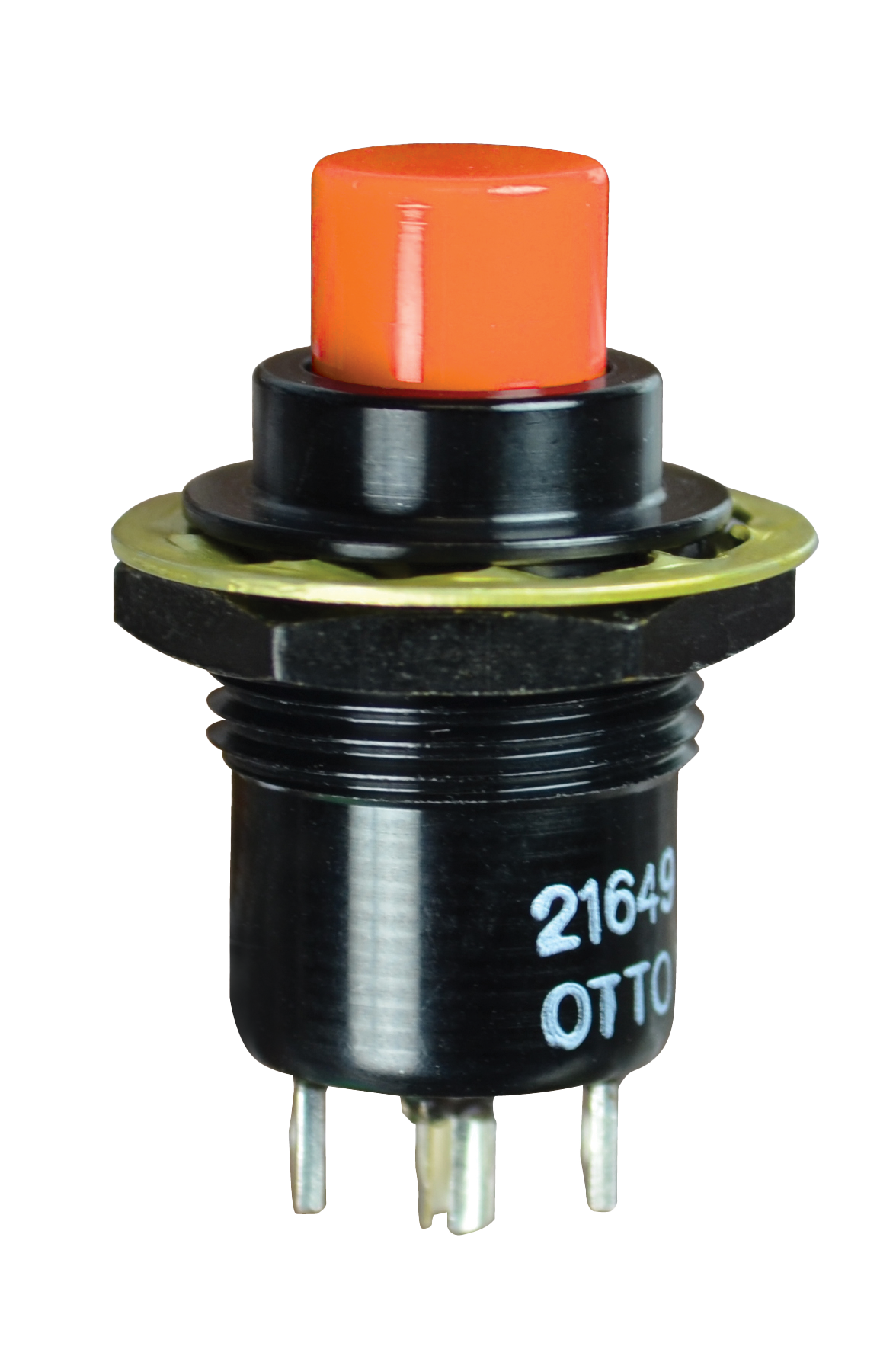

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-72222
Series:P1
Cap Color:Black
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-72222

Detailed Description

Introducing the P1-72222, part of the P1 series, a precision snap-action pushbutton switch designed for reliability in demanding environments. Featuring a sleek black housing with a flat round button actuator, this panel-mount switch offers a durable solution with a high IP2 rating. The SPST-NC contact configuration, with brass contact material and silver plating, ensures efficient conductivity. With a current rating of 10A and voltage ratings of 115VAC and 28VDC, it's suitable for various applications. The switch has a rugged aluminum casing, meeting sealed and thermoplastic actuator material standards. Operating between -55°C to 85°C, it guarantees performance in extreme temperatures. Ideal for industrial use, this switch provides a long-lasting solution with a 25,000-cycle durability rating. Upgrade your control systems with the P1-72222 and experience reliable operation in any setting.
