P1-72622

OTTP1_72622
Heilind Number:OTTP1-72622
Manufacturer:OTTO Controls
Manufacturer Number:P1-72622
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

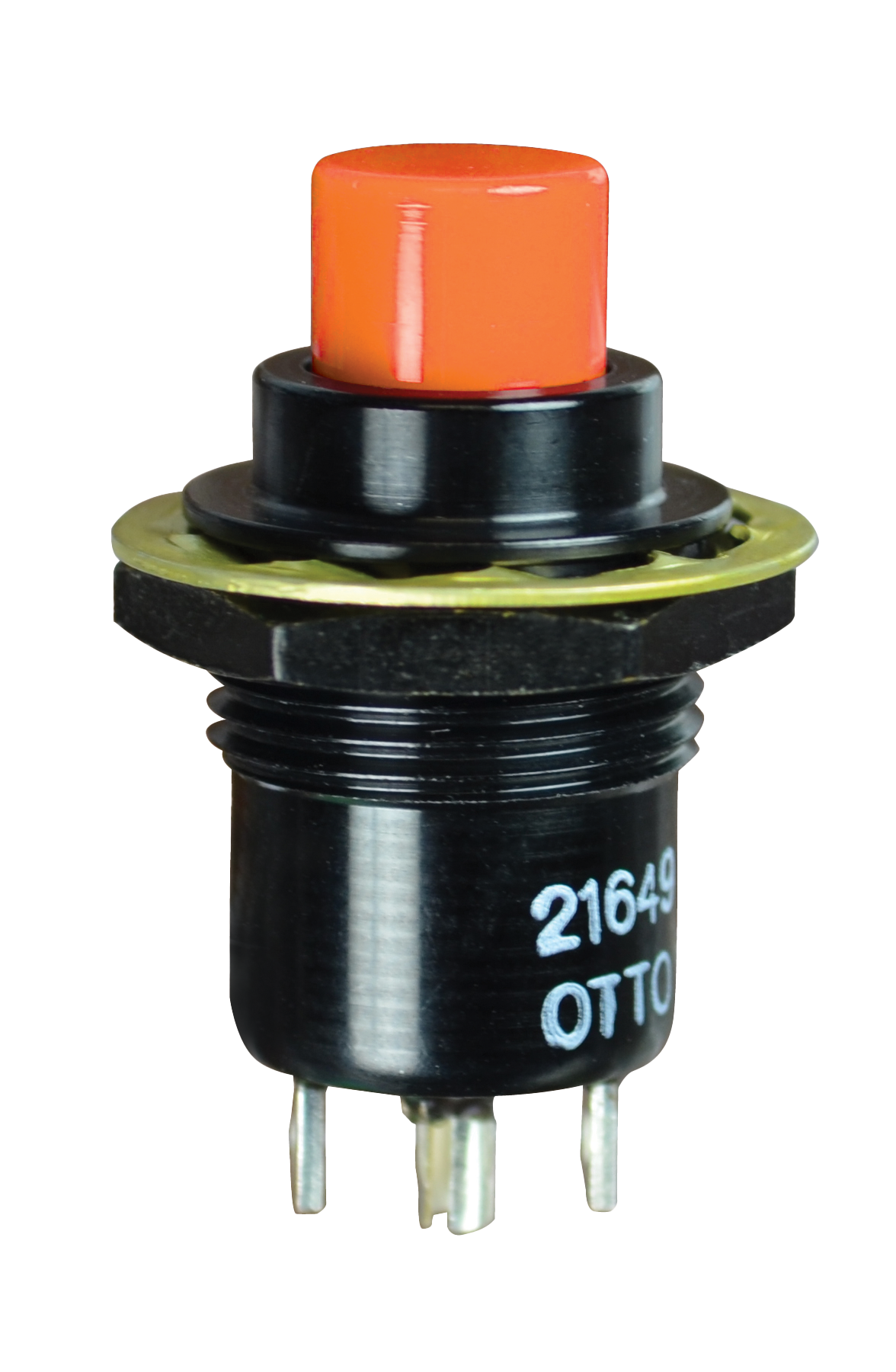

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-72622
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:Black
Actuator Length:.25 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-72622

Detailed Description

Introducing the P1-72622 Pushbutton Switch, a reliable component designed for precision performance. Part of the P1 series, this switch features a durable black housing with an IP Rating of 2 for added protection. The flat, round button actuator ensures easy operation, while the screw termination type allows for secure installation. With a current rating of 10A and contact plating of silver, it guarantees efficient conductivity. Ideal for panel mounting, this switch is perfect for applications requiring a sealed and non-illuminated push-button solution. Its SPDT contact configuration and 25,000 cycle durability rating make it a dependable choice for various industrial settings. Whether used in high or low temperatures, ranging from -55°C to 85°C, this pushbutton switch ensures consistent performance. Upgrade your control systems with the P1-72622, the epitome of quality and reliability in push-button switches.
