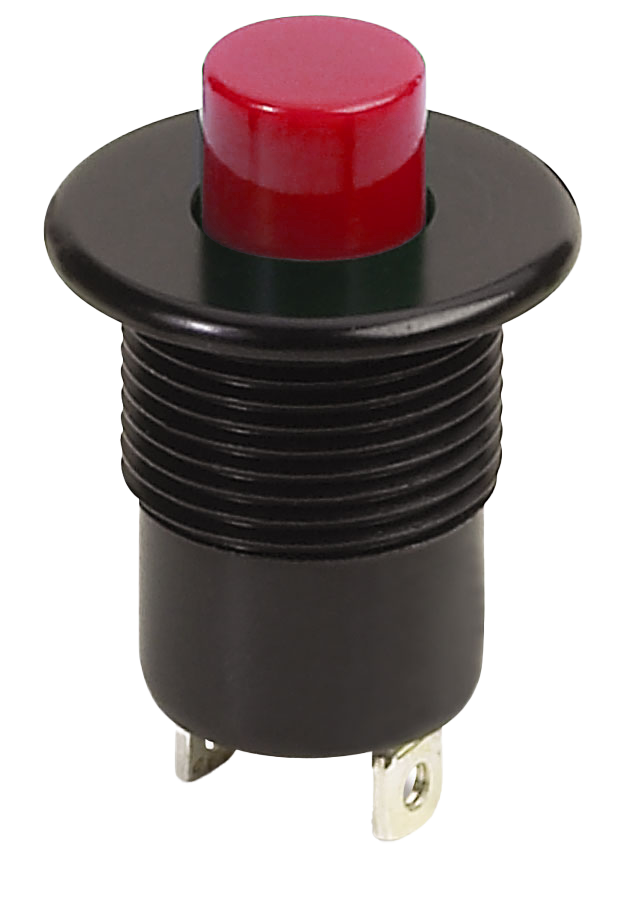

P1-81114

OTTP1_81114
Heilind Number:OTTP1-81114
Manufacturer:OTTO Controls
Manufacturer Number:P1-81114
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-81114
Series:P1
Cap Color:Yellow
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP1-81114

Detailed Description

The P1-81114 Precision Snap-Action Pushbutton Switch from our P1 series is a durable and reliable component designed for high-performance applications. Its yellow button, set in a sleek black aluminum case, offers easy visibility and a touch of style. Featuring a sealed design and a contact rating of 10A, this switch ensures efficient operation even in challenging environments. The SPST-NO configuration guarantees a secure connection, with brass contacts and silver plating for enhanced conductivity. With a wide operating temperature range of -55°C to 85°C and a voltage rating of 115VAC/28VDC, it's suitable for various industrial and commercial uses. The flat round button, made of thermoplastic, provides a comfortable actuation experience. Meeting IP2 standards for ingress protection, this switch offers peace of mind in terms of performance and longevity. Suitable for panel mounting and featuring solder terminals, installation is straightforward. Whether used in aerospace, automotive, or machinery applications, the P181114 is a dependable choice.
