P1-81116W

OTTP1_81116W
Heilind Number:OTTP1-81116W
Manufacturer:OTTO Controls
Manufacturer Number:P1-81116W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

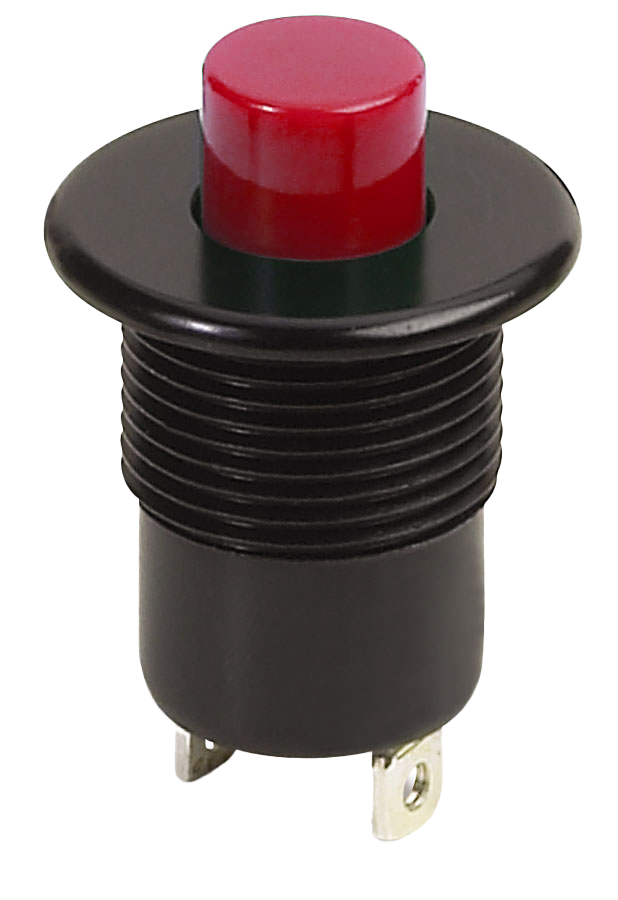

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-81116W
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 3
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-81116W

Detailed Description

Introducing the P1-81116W Precision Snap-Action Pushbutton Switch, a versatile and durable component designed for high-performance applications. Part of the P1 series, this switch features a flat blue button actuator and a round shape, ensuring ergonomic operation. With an aluminum housing and sealed construction, it guarantees reliability in challenging environments. The SPST-NO contact configuration, along with silver-plated brass contacts, offers excellent conductivity. Rated for 10A at 115VAC and 28VDC, it provides efficient power control. Whether for panel mounting or solder termination, its ease of installation makes it ideal for various systems. With a long lifespan of 25,000 cycles and an operating temperature range from -55°C to 85°C, this switch is a dependable choice for demanding industrial and commercial setups. Upgrade your equipment with the P1-81116W and experience precision switching performance.
